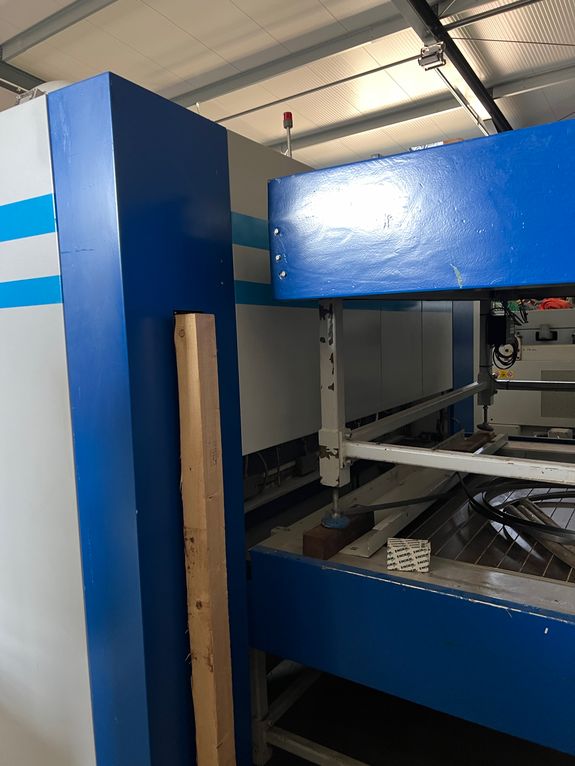

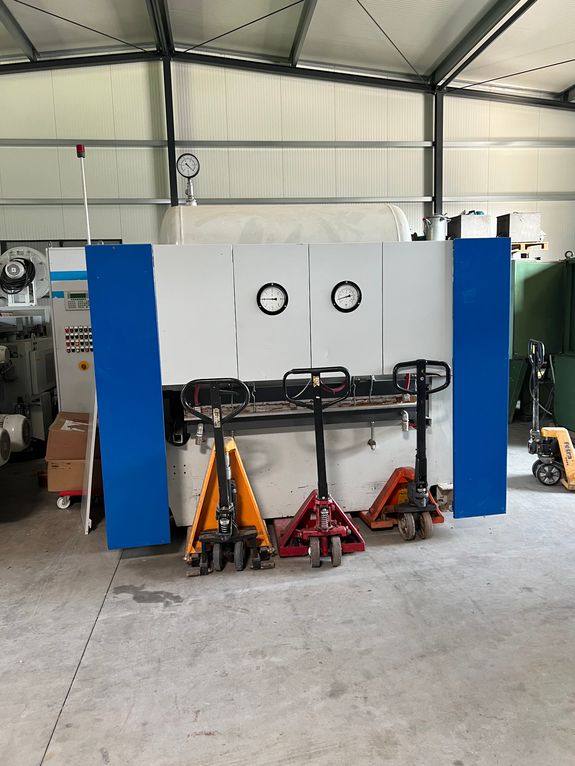

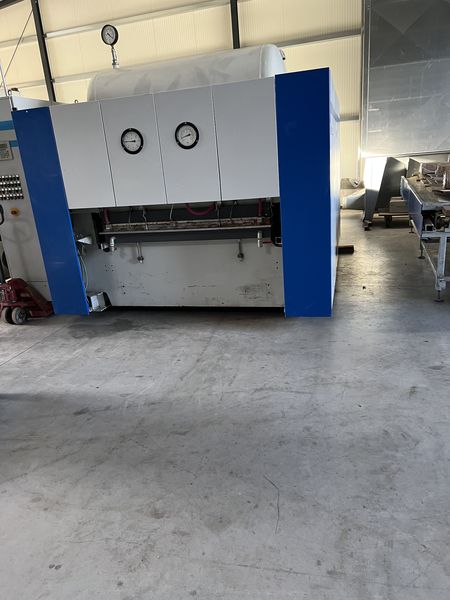

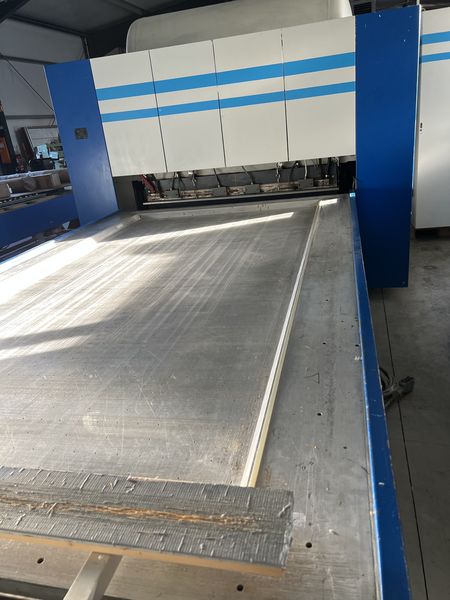

Membrane press for foil lamination

Membrane press for foil lamination
Brand: Bürkle
Type: Multifoiler BTF 1628/60
Year of manufacture: 1997

System for laminating flat and shaped MDF parts with thermoplastic foils, supplied from rolls or as cut sheets, suitable for PVC, PP, high-gloss PVC and ABS foils.

Suitable for thermoforming and membrane pressing processes.

Maximum part size: 1,250 x 2,550 mm
Part thickness: 6–35 mm
Heating plate dimensions: 1,600 x 2,800 mm
Maximum heating temperature: 140 °C
Stroke: 230 mm

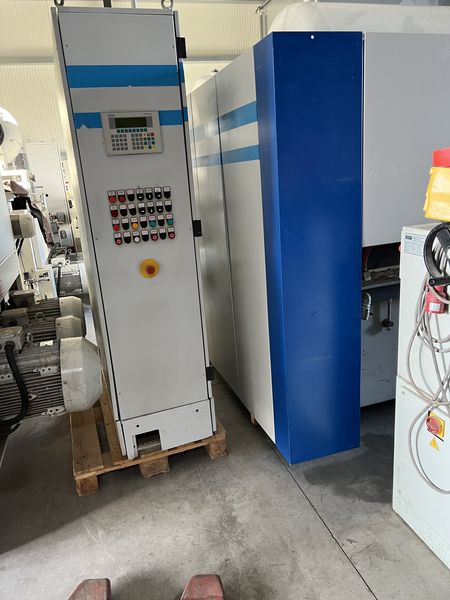

Control system: Siemens
Total connected load: 38 kW

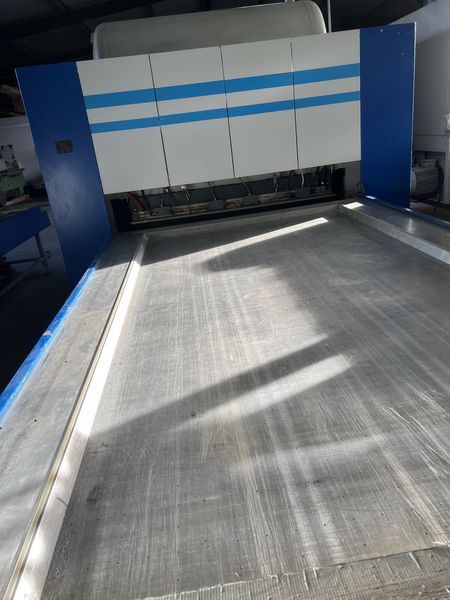

Including 2 aluminium tables and 1 spare table

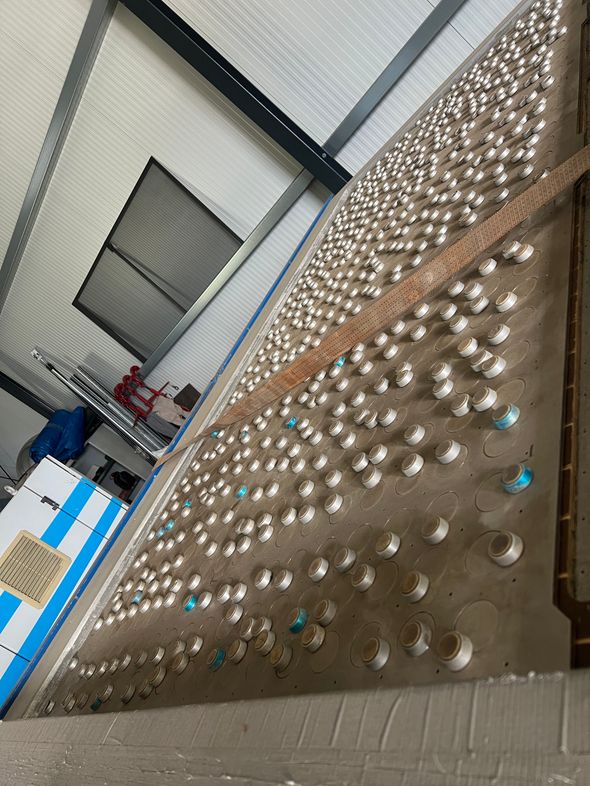

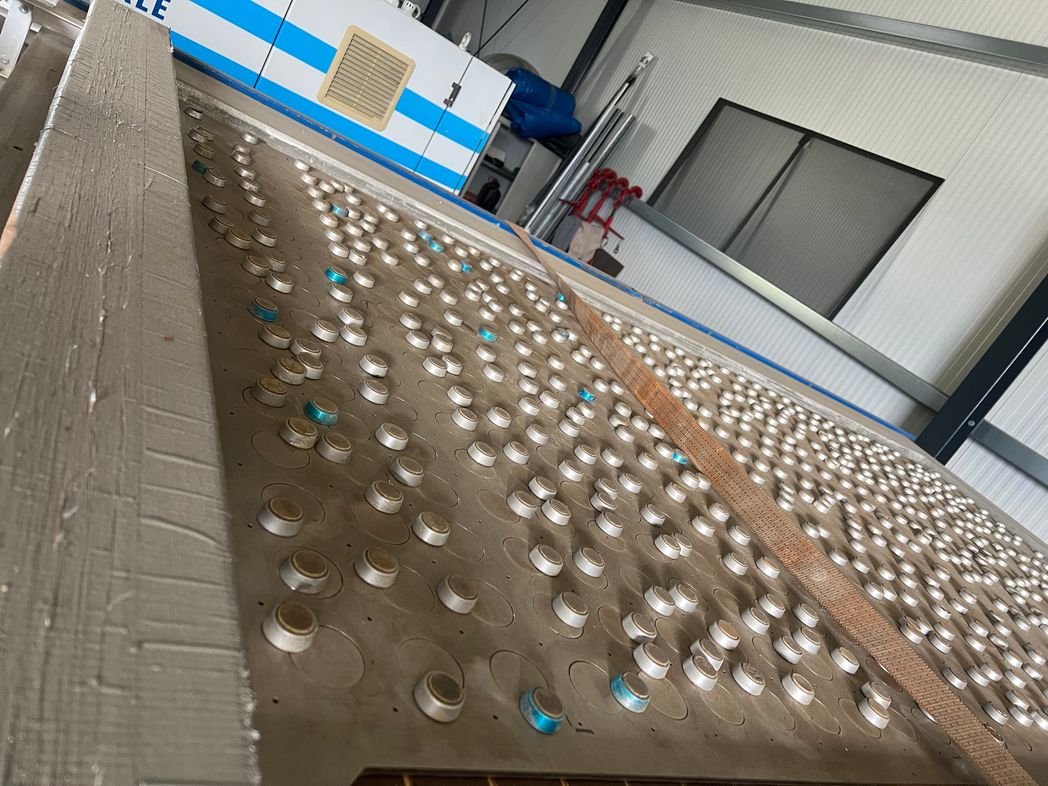

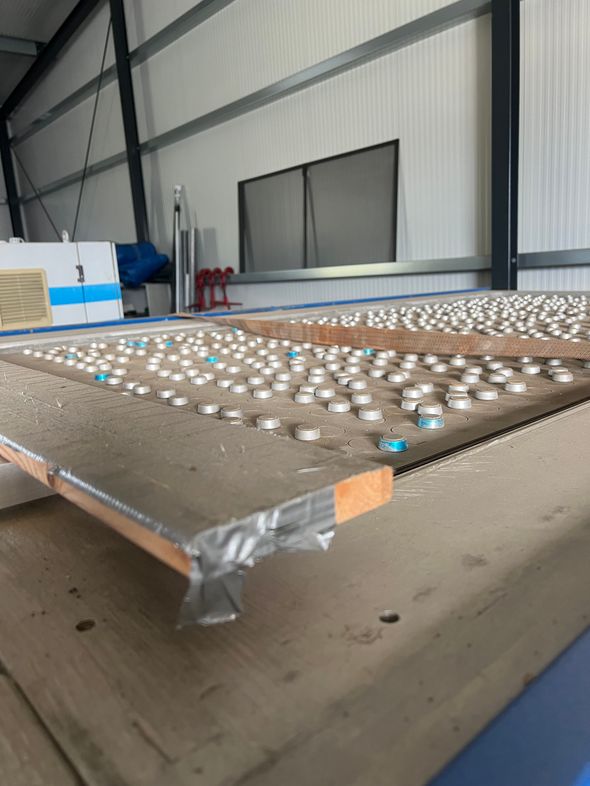

Including PIN table
Weight: 16.5 t



Note:
The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding.
