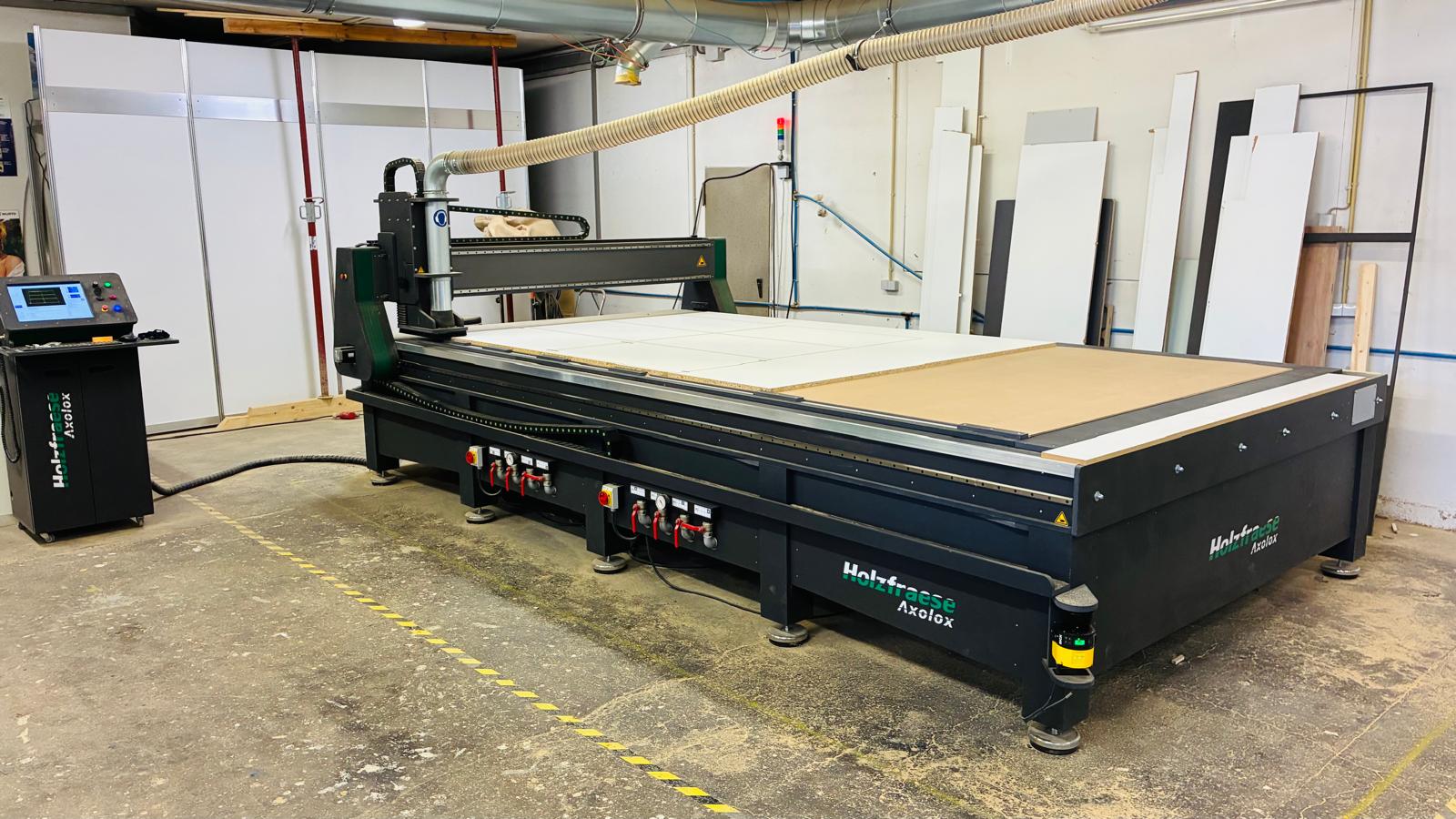

CNC wood milling machine

CNC wood milling machine
Brand: Gewema
Type: Axolox 4021
Year of manufacture: 2024


Technical data:
- Work table: 4000 x 2100 mm

Mechanical set consisting of:
- Profile guide incl. profile guide carriage
- Ball screw
- Precision racks

Control set consisting of:
- Control cables
- Energy chains
- Planetary gear
- Stepper motors
- High-performance output stages
- Power supply unit
- Toroidal transformer

- Brush seals as dust protection
- CE compliant
- Laser scanner for workspace monitoring
- Hand-held control unit with all necessary functions

- High-frequency spindle 2.2 kW
- Including union nut, frequency converter, mains filter, braking resistor, and collet set
- Hold-down device as attachment for high-frequency spindles

- PC with Windows 10
- Beamicon2 control software
- Smart WOP
- Smart WOP panel planner

- Vacuum table consisting of six adjustable elements
- Vacuum pump with a capacity of 160 m3/hour

Tool set in Systainer consisting of:
- 1 pc. 1.5 mm left VHM
- 1 pc. 3.175 mm engraving 30°
- 1 pc. 6 mm engraving 90°
- 5 pcs. 4 mm Z2 solid carbide
- 1 pc. 5 mm Z2 solid carbide
- 1 pc. 5 mm Z3 coated
- 2 pcs. 5 mm Z2 diamond
- 1 pc. 5 mm Z2 up & down
- 1 pc. 4 mm Z3 solid carbide
- 1 pc. 6 mm Z1 solid carbide
- 1 pc. 8 mm Z2 solid carbide
- 1 pc. 10 mm Z2 solid carbide
- 1 pc. 12 mm Z2 solid carbide



Note:
The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding.
