with laser edge gluing
working field
X = 6300 mm
Y = 1600 mm
Z = 225 mm incl. vacuum cups

Wehrmann project:
- Very solid IMA Combima machine bed
- Heesemann units
- NC controlled sanding units
- Beckhoff control

Sanding width 1,350 mm
- cross sanding unit with pressure lamellar belt system
- combined longitudinal sanding unit with calibration roll
- longitudinal sanding unit
- structuring brushing unit
- dust removal brushing unit
- 3 pressure beams with computer-controlled selective pressure control system CSD

• Directpostforming machine for curved caravan furniture fronts
• With scoring and folding technology in the edge area
• Easy to adjust counter pressure device for nearly every radius
• 2 Nordson PU – barrel melting devices
• Decorative grooves near to the edge, inside the area of the chain

Additional vacuum pump 100 m³/h
Separate vacuum clamping system (4 vacuum fields in X-direction)
Separate vacuum clamping system for the use of at least 8 workpiece supports with four-fold assignment
18-fold tool holder
LED positioning system

- Schukos biggest mobile extractor for wood dust
- efficient use of power, due to second motor that switches on/off on demand

- 20 kg load capacity
- 1700 mm reach
- 6 force torque sensors
- different gripping systems possible

One-sided edge banding machine for processing straight workpiece edges and for gluing and reworking various edge materials in longitudinal and transverse throughput.
- with Lasertec and PU gluing
- with vacuum portal returning system Barbaric

- for processing of thick- and thin edges
with rough and form milling units
- PUR and hot melts
- separate pre-heating station with 3 additional glue applications
- with workpiece returning device LIGMATECH
- year 2014

with:
- premilling
- automization package
- smoothing unit

Left hand machine

- unterbrechungsfreier Werkstücktransport
- Automatischer 4-fach Werkzeugwechsler
- Keine Werkstücklängenbegrenzung und 1250mm Arbeitsbreite
- optional mit Beschickung und Abstapelung

- Solid construction with 270mm brushes-Ø
- Precise panel processing also at slight concave / convexe shaped workpieces
- with electronical adjustments and frequency controlled brushes

TOOL CHANGE SPINDLE 12 KW - HSK F63
WORKING LENGTH X AXIS 7250 MM
WORKING WIDTH Y-AXIS 1300 MM

High performance crosscut saw with rotary table for miter cuts -70° / + 70°.
Max. Saw blade diameter 600 mm

- Insgesamt 2 Frässpindeln (1 mit 5. Achse)
- 10-fach Tellerwechsler
- 10-fach linearer Wechsler
- Cosmec Rastertisch besonders gut zur Bearbeitung leichter / kleiner Werkstücke

Vitap's new innovation:
- High-Performance CNC machine for the production of acoustic panels with micro-perforation

- Every 4 seconds you can punch 1.000 up to 2.331 holes (depending on the workpiece)

- The ideal CNC solution to process narrow and complicated work pieces
- for massive wood parts like slat frames
- with magazine
- Workpiece length up to 3350mm, 2-field operation

CNC - machining center for complete machining of various door frames

- Working area 1300 x 50 x 50mm
- drilling head 3.500 rpm
- 3 horizontal indipendent spindles
- 3 vertical indipendent spindles
- 1 glue and dowels inserting unit

- Monobloc-boring head:
55 spindles, spindle distance 32 mm
- workpieces max.: X=unlimited, Y=1250mm, Z=50mm

- Werkstückbreite: 950mm
- Werkstückbreite: 60mm
- Max. Werkstücklänge endlos
- Min. Werkstücklänge: 250mm

heating plates: 3500x1300mm
electrically heated
pressing force: 120t

Rohlängen 500 – 4.100 mm
Sicheres Einlegen mit dem 30 Grad geneigtem Tisch
Komfortable Windows Steuerung auf 22“ LED Farbdisplay
Scannersystem für Fehlstellen aller Werkstückstärken

Rohlängen 500 – 4.100 mm
Sägezeiteinstellung von 0,5 – 2 Sekunden einstellbar
15,6“ Touchscreen für einfache und sichere Bedienung
Schlitten mit Messanschlag und Schubfunktion

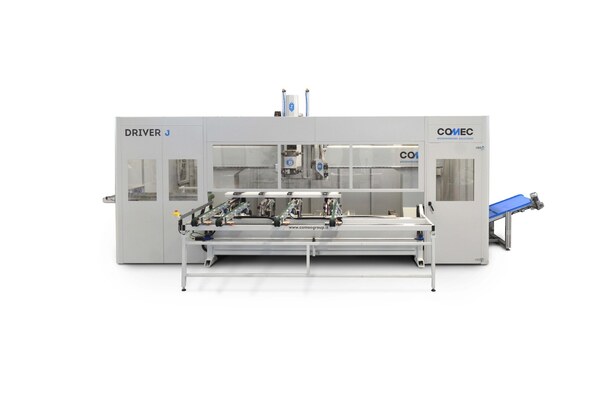

For point-to-point throughfeed machining
With 2 working units for drilling and milling
With automatic loading and workpiece return system

Fast - Silent - Clean - Lean - Universal - Service by Wehrmann
