- Complete edge processing up to 3 mm thickness
- with KFA-30 units
- with workpiece return

• Directpostforming machine for curved caravan furniture fronts
• With scoring and folding technology in the edge area
• Easy to adjust counter pressure device for nearly every radius
• 2 Nordson PU – barrel melting devices
• Decorative grooves near to the edge, inside the area of the chain

One-sided edge banding machine for processing straight workpiece edges and for gluing and reworking various edge materials in longitudinal and transverse throughput.
- with Lasertec and PU gluing
- with vacuum portal returning system Barbaric

workshop-checked with:
- new transport chain
- new top pressure
- rebuilt edge magazine including gluing unit
Price 15,500 EUR

Left hand machine

- immediately available demonstration machine
- maximum flexibility in the choice of edge material and the shape of the workpiece
- swivable table 0°- 45°

- ISAS 28-position edge magazine
- PU gluing unit
- Boomerang return system

- Jointing unit, 2 x 2.2 kW
- Gluing unit
- end trimming unit, bevel/straight, 2 x 0.18 kW
- Multi-stage trimming unit
- Contour  trimming unit, 1 x 0.35 kW
- multi scraping unit
- Flat scraper
- Buffing unit

- Jointing cutter
- Radiant heater
- EVA gluing unit
- Roll magazine for edge material
- Cutting unit
- Flush milling top/bottom
- MFA with 2 motors for radius r2, servo-controlled
- Profile scraper unit
- Surface scraper unit
- Buffing unit
- Feed speed 20 m/min

- premilling unit
- gluing unit
- Pre-melting unit
- end cutting unit
- tiltable trimming unit
- rounding unit
- edge scraping unit
- brushing unit

Year of manufacture: 2014
Maximum edge band thickness: 8 mm
Belt top pressure: Yes
Units controled: Pneumatic
Machine length: 6,760 mm

- joint milling
- Gluing section with glue premelter
- Pressure zone
- Snipping unit
- Flush trimming
- Contour trimming unit FK 13 with automatic tool changer 8-fold
- Groove trimming unit
- Profile scraper
- Surface scraper
- Buffing unit
- Homatic NC 21 control unit

- Jointing milling unit with 2 motors, each 4.5 kW
- Infrared heater, approx. 300 mm long, 2 x 1.5 kW
- Gluing unit

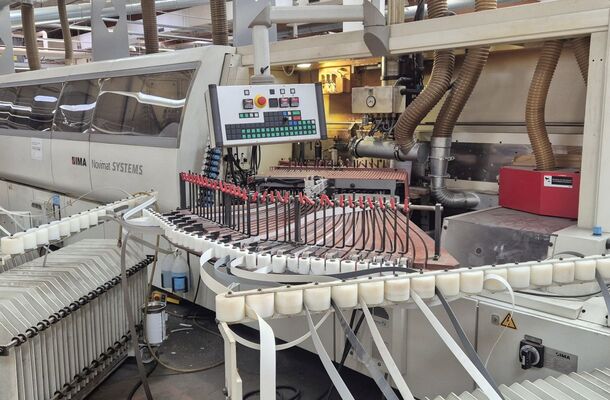

- Vertical roll holder for 32 rolls
- End trimming unit on top pressure beam with 2 motors, each 200 W
- Milling unit with 2 motors, each 1000 W
- Multi-functional processing unit 2 motors 660 W
- Spray nozzles top and bottom
- Multi-profile scraper unit
- Flat scraper unit
- Copy buffing unit 4 motors 250 W
- Smoothing unit

- Release agent specification top/bottom
- Joining unit and blow nozzle
- Cutting unit
- Copy trimming unit SKF-L
- Profile scraper unit
- Spray cleaning agent
- Self-scanning scraper unit
- Buffing unit

- Joint trimming unit
- Gluing unit
- Snipping unit
- Pre-milling unit
- Shaping trimming unit
- Profile scraper blades
- Surface scraper blades
- Buffing unit
- Grooving unit

- With workpiece return
- Maximum edge thickness: 20 mm
- Panel thickness: 8-60 mm
- Maximum feed rate: 20 m/min
- With grooving unit

- Joining unit 2 x 2.2 KW 200Hz
- Gluing unit A12
- Snipping unit chamfer/straight 2 x 0.35 KW
- Trimming unit 2 x 0.55 KW counter rotation
- Grooving unit 1 x 1.85 KW Swiveling
- Shaping trimming unit 2 x 0.35 KW WD 60
- Profile scraper blades with quick-change heads
- Free space glue joint scraper
- Buffing unit

- Roll edge in a thickness of 0.3 - 3.0 mm
- Paper, PVC and ABS edges 0.3 - 3.0 mm
- Veneer 0.5mm - 3.0 mm
- Wood slats 0.8 - 20 mm
- Edge height 14 mm - 65 mm

- Edge thickness up to 15 mm
- Use of EVA and PUR glue
- with joint milling
- with “Round SK” rounding unit
- with workpiece return

- Automatic feeding table
- KFA milling unit
- Workpiece returning system

- Feeding table
- Gluing with PUR or LASER
- KFA unit

- with infeeding table for exact measurement
- with KFA-unit
- with grooving unit

- new machine -
- Pre-heating of gluing units for fast change
- Easy cleaning of the glue roll while rotating
- For IMA or Homag gluing units
- Swivel device, approx. 7°, for cleaning of the glue-applicator
