High performance crosscut saw with rotary table for miter cuts -70° / + 70°.
Max. Saw blade diameter 600 mm

Rohlängen 500 – 4.100 mm
Sicheres Einlegen mit dem 30 Grad geneigtem Tisch
Komfortable Windows Steuerung auf 22“ LED Farbdisplay
Scannersystem für Fehlstellen aller Werkstückstärken

Rohlängen 500 – 4.100 mm
Sägezeiteinstellung von 0,5 – 2 Sekunden einstellbar
15,6“ Touchscreen für einfache und sichere Bedienung
Schlitten mit Messanschlag und Schubfunktion

Extended workpiece support left- / right side each 840 mm

- With lifting table
- 21 kW saw motor
- Label program
- Pica label printer
- Practive-Professional cutting profit

Combined sawing unit with
Cross cutting aggregate with cutting length 1.600 mm and with
Depth cutting aggregate with cutting length 5.600 mm

With vacuum feeding device and outfeed roller conveyor

- Angular pressure device
- Main motor 18 kW (50 Hz)
- Scoring motor 2.2 kW
- Main saw blade 450 x 4.8 60 mm
- Scoring saw blade 180 x 4.8 - 5.65 x 45 mm
- Cutting length 3800 mm
- Cutting width (program pusher travel) 3700 mm
-Collets 6 pieces
Pitch 75 / 275 / 475 / 1075 / 1525 / 3125 mm

Cutting length 4300 mm

EXW-PRICE:  100.000,00 EUR

Saw blade Ø min. 200 mm
Saw blade Ø max. 450 mm

cutting length 3100 mm
with croring saw

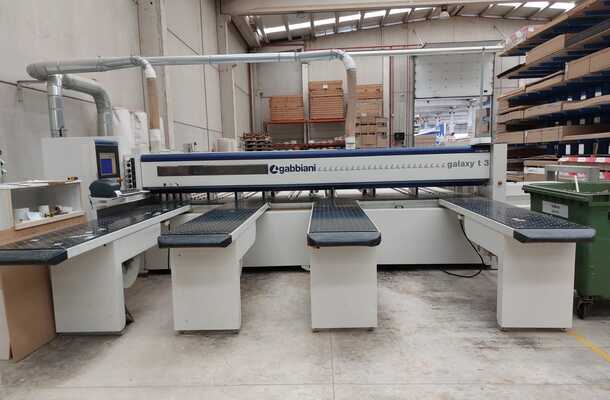

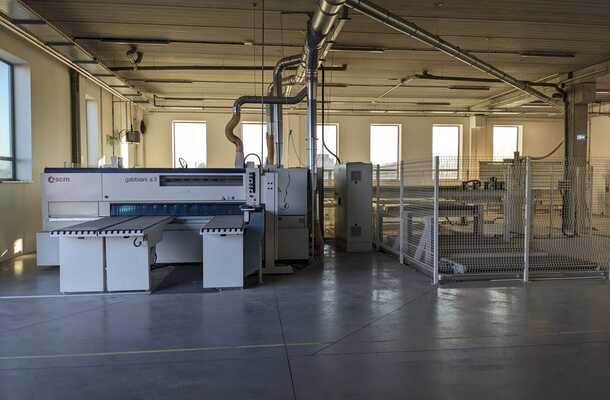

- max. panel width 4500 mm
- max. panel length 2200 mm
- max. saw blade projection 127 mm
- main saw 18.5 KW
- scoring saw 2.0 KW
- with lifting table

- Vorschubgeschwindigkeit bis 120 m/min.
- (als SC 500 mit bis  200 m/min )
- Intelligentes Auswurfsystem

- Postforming Function
- Ø scoring blade 350 mm.
- Ø saw blade 350 mm.
- Speed of rotation of the blade variable with inverter

It can work as a standalone machine, or as Machine at the beginning of a production line.
- Postforming function

- Solid German machine construction - approx. 1150 kg

- electromotive adjustable rip fence

- touch-screen control incl. automatic adjustable scoring fence

-  4,3" Touch Screen Steuerung für Schnitthöhe, Schwenkverstellung und Drehzahl

- Inkl. Vorritzaggregat

- Robust gebaut

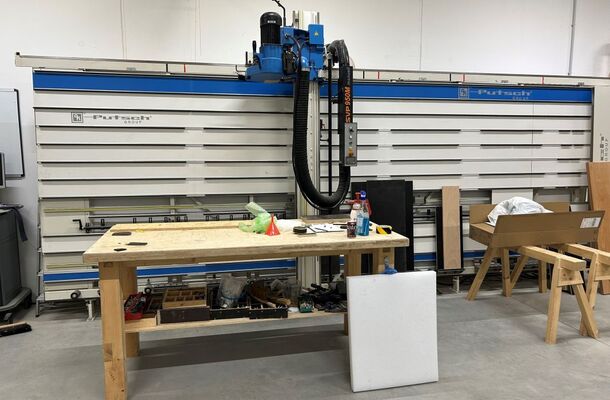

max. cutting length: 3200 mm
max. cutting height: 1900 mm
highest horizontal cut: 1700 mm
engine power: 5 hp (3.7 kW)

max. cutting length: 4200 mm
max. cutting height: 2200 mm
max. cutting depth: 60 mm
engine power: 5 PS (3,7 KW)

Max. cut length: 5300 mm
Max. cut height: 2200 mm
Max. cut depth: 80 mm
Motor power: 7,5 hp (5,6 KW)

max. cutting length: 4200 mm
max. cutting height: 2200 mm
max. cutting depth: 60 mm
engine power: 5 PS (3,7 KW)

Automatic panel dividing saw for tear-free and dimensionally accurate dividing of
coated and uncoated panels made of wood-based materials and such,
which are to be processed like wood-based materials.

Well preserved piece of german machine technique

saw blade Ø 250mm
swivable saw blade 45 °
