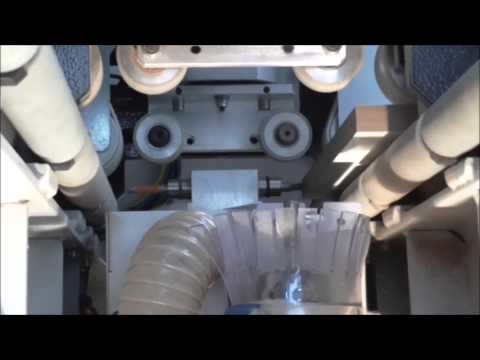

CNC-boring machine VITAP POINT 2

CNC boring machine
Brand: VITAP
Type: POINT 2
New machine

Vitaps' smart solution for throughfeed drilling and grooving with autom. panel return to operator

3 controlled axis
- Axe X Uninterrupted movement of the panel due to a “New patented belt transport system”.
- Axe Y Movement of the drilling head
- Axe Z latest generation motor and ball screw.

- No limit in panel length

Perfect for batch 1:
- Setup time = 0
- High productivity and flexibility

Easy TPA programming
- Monitor LCD TFT 19" 5/4 Usb port for loading programs run on a station in each office
- Cutting optimization Software
- Graphics programming CAD TPA, base version
- Saving all files with all data
- Macro Programming
- Import DXF files
- Control: Full Parametric
- Office programming software TPA

Technical data:
- 9 vertical independent spindles
- 2+2 horizontal spindles on X axis
- 1+1 horizontal spindles on Y Axis
- 1 blade for grooving

Workpiece dimensions:
- Max. size of the panel X (no limits), Y 920 mm, Z 50 mm
- Min. size of the panel X 270/400*mm, Y 150 mm, Z 10 mm
- Max. weight of the panel kg 50

- Spindles rotation speed  3600 rpm
- Panel feeding speed 25m/min
- Max. drilling depth in vertical: 45 mm
- Max. vertical diameter of the tools 35mm
- Max. horizontal diameter of the tools 12mm

- Motor power: 1,7 kw (spindle group and saw)

- CE STANDARDS

Inclusive:
- Tool kit for production start

Optionen:
- Air conditioner for switch cabinet
- Voltage stabilizer for PC
- Additional top pressure

- Milling unit 3,3 kW
12.000 - 24.000 U/min.,
Chuck ER 32 for tool diameter up to 20mm

- Barcode reader
- Frontal and rear roller support for long workpieces:
- Narrow part guidance min. 70mm
