with laser edge gluing
working field
X = 6300 mm
Y = 1600 mm
Z = 225 mm incl. vacuum cups

with gluing unit
Workpiece lengths max: 6.175 mm
main spindel 15 KW
tool changer 18-fold
boring head 30 spindles
additional milling spindel 6 KW
FLEX-5 unit

Additional vacuum pump 100 m³/h
Separate vacuum clamping system (4 vacuum fields in X-direction)
Separate vacuum clamping system for the use of at least 8 workpiece supports with four-fold assignment
18-fold tool holder
LED positioning system

- Interruption-free workpiece transport
- Automatic 4-fold tool changer
- No workpiece length limit and 1250 mm working width
- Optionally with loading and destacking

TOOL CHANGE SPINDLE 12 KW - HSK F63
WORKING LENGTH X AXIS 7250 MM
WORKING WIDTH Y-AXIS 1300 MM

- Insgesamt 2 Frässpindeln (1 mit 5. Achse)
- 10-fach Tellerwechsler
- 10-fach linearer Wechsler
- Cosmec Rastertisch besonders gut zur Bearbeitung leichter / kleiner Werkstücke

Vitap's new innovation:
- High-Performance CNC machine for the production of acoustic panels with micro-perforation

- Every 4 seconds you can punch 1.000 up to 2.331 holes (depending on the workpiece)

- The ideal CNC solution to process narrow and complicated work pieces
- for massive wood parts like slat frames
- with magazine
- Workpiece length up to 3350mm, 2-field operation

- new machine -
CNC - machining center for complete machining of various door frames

- Monobloc-boring head:
55 spindles, spindle distance 32 mm
- workpieces max.: X=unlimited, Y=1250mm, Z=50mm

For point-to-point throughfeed machining
With 2 working units for drilling and milling
With automatic loading and workpiece return system

- Panel movement seamlessly
- Automatic 4-fold tool changer
- No limit in panel length and 1250mm working width
- Loading and unloading device as optional available

- new machine -

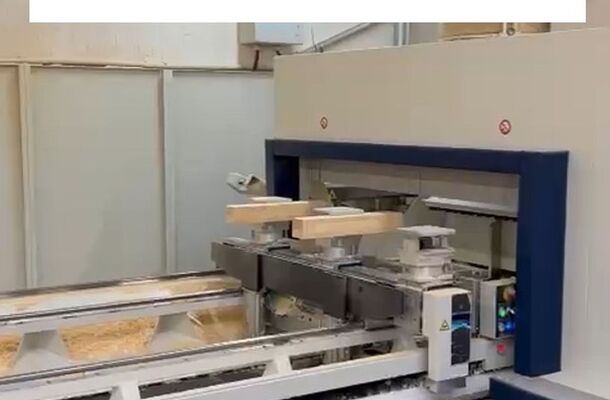

- CNC machining center for timber beams,
  strips and other narrow parts
- Space-saving and quick magazine loading
- 360° sawing, milling and drilling unit
- immediately available in our showroom

- new machine -
- Interruption-free workpiece transport
- Automatic 4-fold tool changer
- No workpiece length limit and 1250 mm working width
- Optionally with loading and destacking

Year 2022
5-axis main spindle 12 kW
Drilling head with 12 vertical drilling spindles
17-way linear changer
18-way disc changer
Label printer

- X = 2 x 2.400
- Y = 1.800 mm
- Hauptspindel 12 kW
- 18-fach Werkzeugwechsler
- Verleimaggregat mit 6-fachem Coil-Magazin

29 vertical drilling spindles can be called up individually
6 horizontal drilling in X and Y
Groove saw unit diameter 150 mm
Milling unit 3.5 kW

5-axis main spindle
Drilling crosshead
Saw head 0/90°
Working dimensions: approx. 530 x 130 cm
Refurbished replacement spindle installed in 2023
Operating hours 4,123 h (stand by end of 2023)

Console table
7,5 KW main spindel
8 vertical drilling spindles
6 horizontal drilling spindles
tool changer

- 4 axes
- with FLEX 5+ unit
- 36 vertical boring spindles
- 6 horizontal boring spindles
- grooving saw
- WoodWOP 7

5-axis spindle 10 kW
Max. machining area 3300 x 1550 mm
Control system WoodWOP 6.1
LED setup assistance
14-position tool magazine
Drill head with 16 spindles (12 vertical + 6 horizontal)
9-position linear tool changer
Chip conveyor

- Max. working area 5800 x 1480 mm
- Main spindle 12 KW
- With gluing unit
- Laser positioning aid

4-axis machining center
Working area: 4000 x 1200 mm
7.5 KW main spindle (S1)
Vertical drilling unit (11 + 11 spindles)
Horizontal drilling unit (2 + 2 spindles)
IMAWOP 7.0 control
2 x vacuum pumps
incl. various adapter units

- automatic adjustable working table
- main spindel with 5 interpolating axes 16.5 kW (22.5 HP), with HSK F63 adapter, liquid-cooled
- 2 tool magazines
- edge gluing unit

- CNC controlled point to point boring machine with through feed panel boring from side and bottom, with automatic panel return to the operator.

2 fache Robotkopf-Bearbeitung
Automatischer Teileeinzug mit Pufferstation
Austransport der fertig bearbeitenden Teile
Selbstrüstendes Spannsystem für kurze und lange Teile
