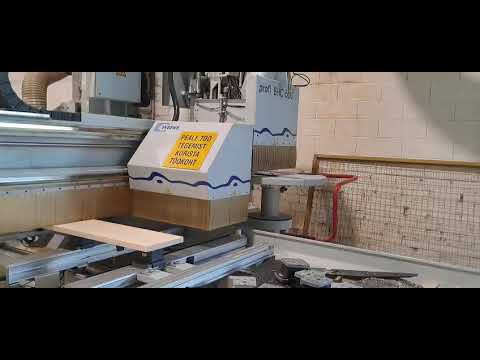

CNC working center WEEKE Profi BHC 600

CNC working center Weeke
Type: Professional BHC 600
Year of construction: 2003

TOOL CHANGE SPINDLE 12 KW - HSK F63
INCL. LIQUID RECIRCULATION
infinitely variable 1,250 - 24,000 rpm. programmable
max. 9/12 kW in continuous/intermittent operation (S1/S6-50%)

WORKING LENGTH X AXIS 7250 MM
WORKING WIDTH Y-AXIS 1300 MM

AUTOMATIC TOOL CHANGE MAGAZINE FOR
8 PLACES (PLATE CHANGER)

AUTOMATIC TOOL CHANGER M. 18 MAGAZINE PLACES
Automatic tool changing system in the X direction
riding on the machine stand

AGGREGATE INTERFACE F.D.MAIN SPINDLE,
To accommodate the adapter units including interface
Pneumatic and swivel drive C-axis with
Torque entrainment and 3-point support

VERTICAL DRILLING UNIT, 26 SPINDLES
Drive: 1.5 kW
11 spindles with step 32 mm in X-direction
11 spindles with step 32 mm in Y-direction
4 spindles with step 50 mm in X-direction
Spindle type: individually controllable

HORIZONTAL DRILLING UNIT, 6 SPINDLES,
IN X DIRECTION

HORIZONTAL DRILLING UNIT, 6 SPINDLES,
IN Y DIRECTION

CHIP REMOVAL BELT TO THE RIGHT SIDE

WOODWOP 5.0

low-maintenance vacuum pump with 100 m3/h

ADDITIONAL VACUUM PUMP 100 M3/H

Note:
The specifications and descriptions are a copy of the order confirmation at that time. Data are for information and are not binding.
