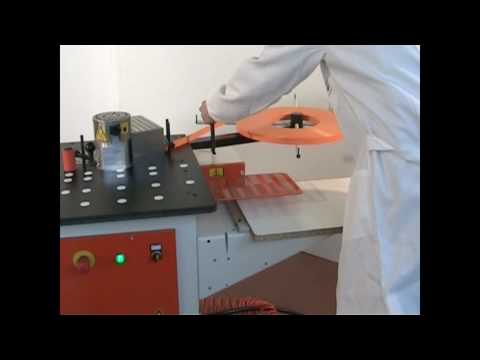

Contour edge banding machine  SMART-3 VITAP

Contour edge banding & trimming machine
Make: VITAP
Type: SMART-3
New machine

- With swivable trimming station

- For straight and formed workpieces (convex and concave)

- 1 glue spreading roller for 10-60 mm panel thickness
- Guillotine to cut bands up to 3 mm thickness
- edge 0,5-3mm

2 tape feeding speed (3 m/min or 7 m/min)

-Glue pot 1kg capacity
- Tape plate Ø=520mm

Solid Phenolic table
- Easy to clean
- With no heat transmission

- Electronic temperature control
- Foot pedal command for the guillotine

Tilting trimming unit
- with 1 high frequency motor HP 0.75 (kw0,55)
- 1 cutter Head with 2 knives r1mm/r2mm/r3mm
- Support tape plate Ø 600 mm
- Semi-automatic end-cutter with motor 0,5 kw and blade Ø=125 mm
- Working table 400 x 300 mm.

- CE standards.

Optional available for an extra charge:
- Cutter (without knives)
- Set 4 knives r 3 mm
- Set 4 knives r 2 mm
- Set 4 knives r 1 mm
- Couple of iron roller for straight pieces
- Kit limit switch
- Vitap glue 2kg
- Vitap glue 10kg
