panel dividing saw with storage and feeding system

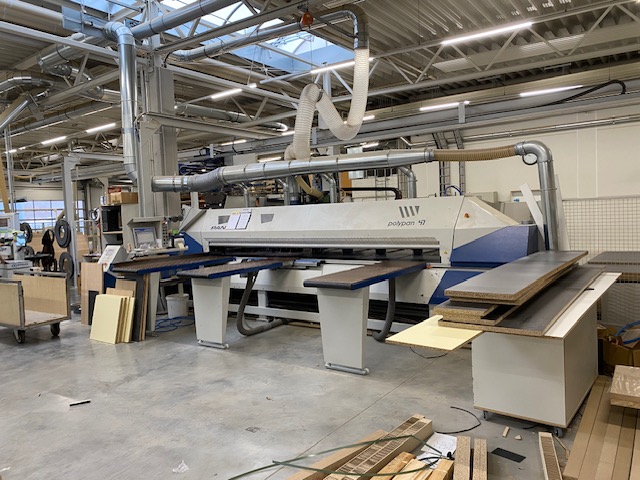

panel dividing saw
Panhans
Brand POLYPAN 47 F
year of construction 2007

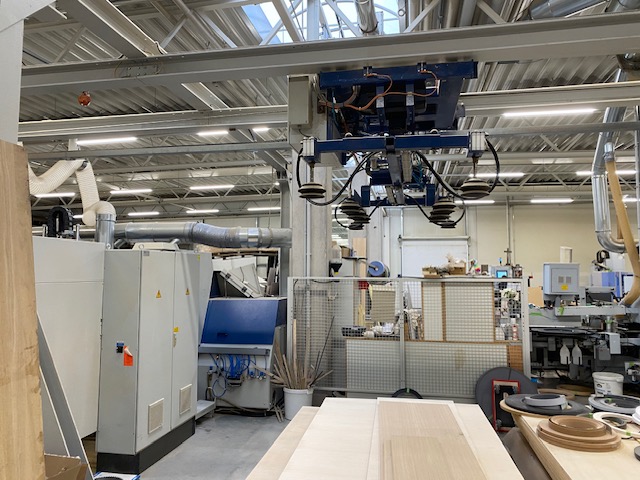

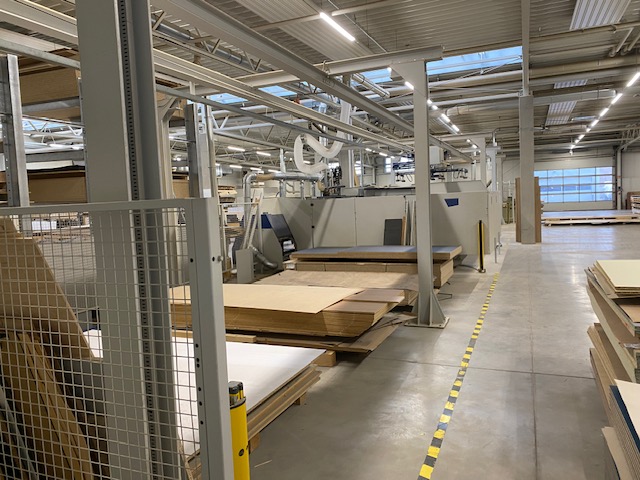

with storage and feeding system
Panhans type MLB 100

Technical data
- Cutting length: 4200 mm
- Cutting width: 4200 mm
- Main saw blade diameter: 350 mm
- APA - quick clamping system Cutting height: max. 72 mm
- Saw exit: max. 82 mm
- Main saw motor (15 HP): 11 kW
- Main saw speed: 4980 1/min
- Scoring saw motor (3.0 HP): 2.2 kW
- Speed of the scoring saw: 0.55 kW
- Feed speed of saw carriage, infinitely variable: 0 - 80 m/min
- Return speed of saw carriage: 80 m/min
- Frequency drive width stop: 1.1 kW
- Width stop in front infinitely variable: 0 - 25 m/min
- Width stop return speed: 80 m/min
- Operating pressure: 6 - 8 bar
- X-axis: linear guide, servo drive 80 m/min
- Z-axis: linear guide, servo drive Downwards: 20 m/min, upwards: 15 m/min

Drilling/milling head
- 14 drilling spindles standard
- Drive: 4 kW
- Vertical drilling
- Vertical speed: 7280 rpm
- Extension stroke: 50 mm
- Max. Drilling depth: 45 mm
- Tool holder: Weldon Ø10
- Smallest part to be machined: min 80 x 250 mm
- Largest part to be machined: max 2650 x 2070 mm
- Working path Y: 2100 mm
- Working path X: 3000 mm



Note:
The technical data and descriptions are transcribed from the original order confirmation. The information is for reference only and is not legally binding.
