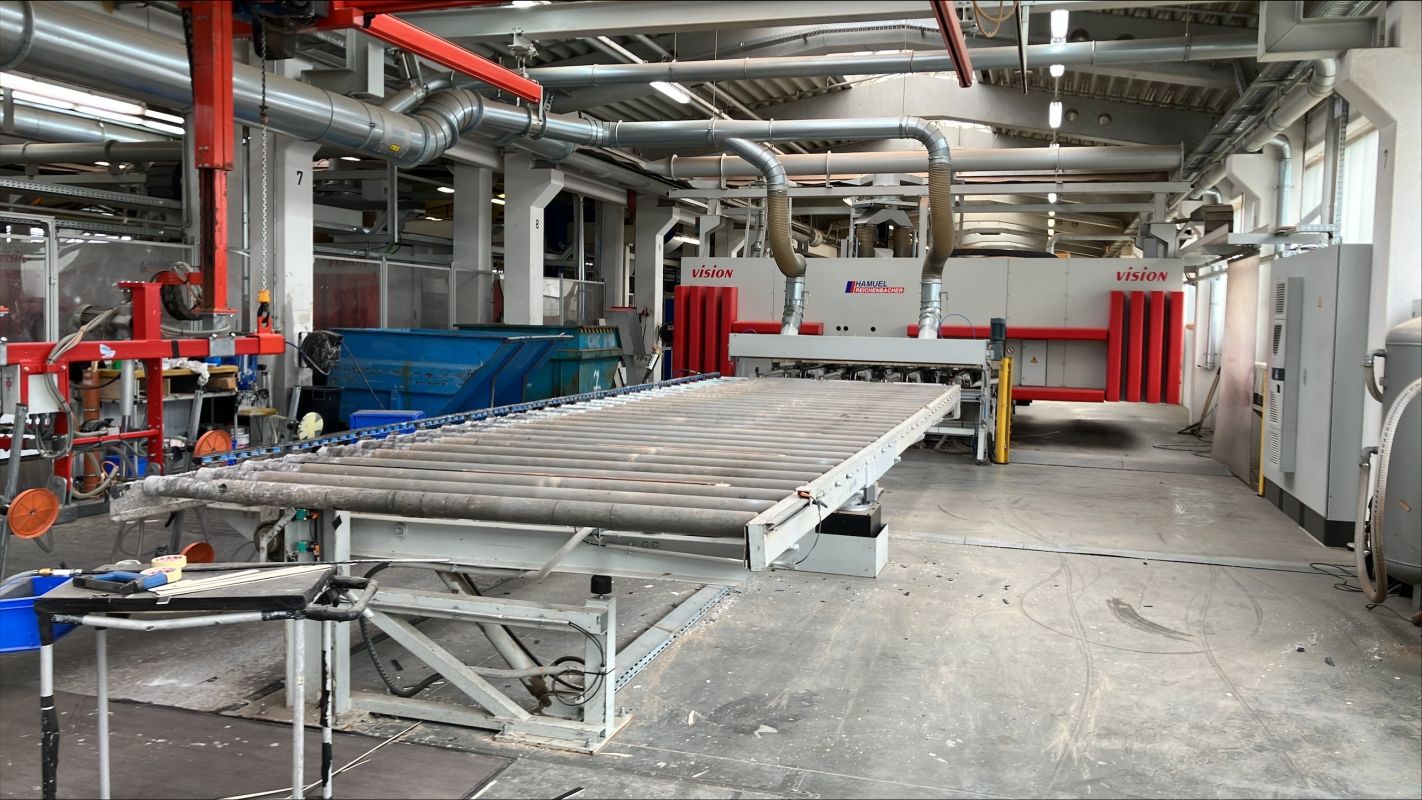

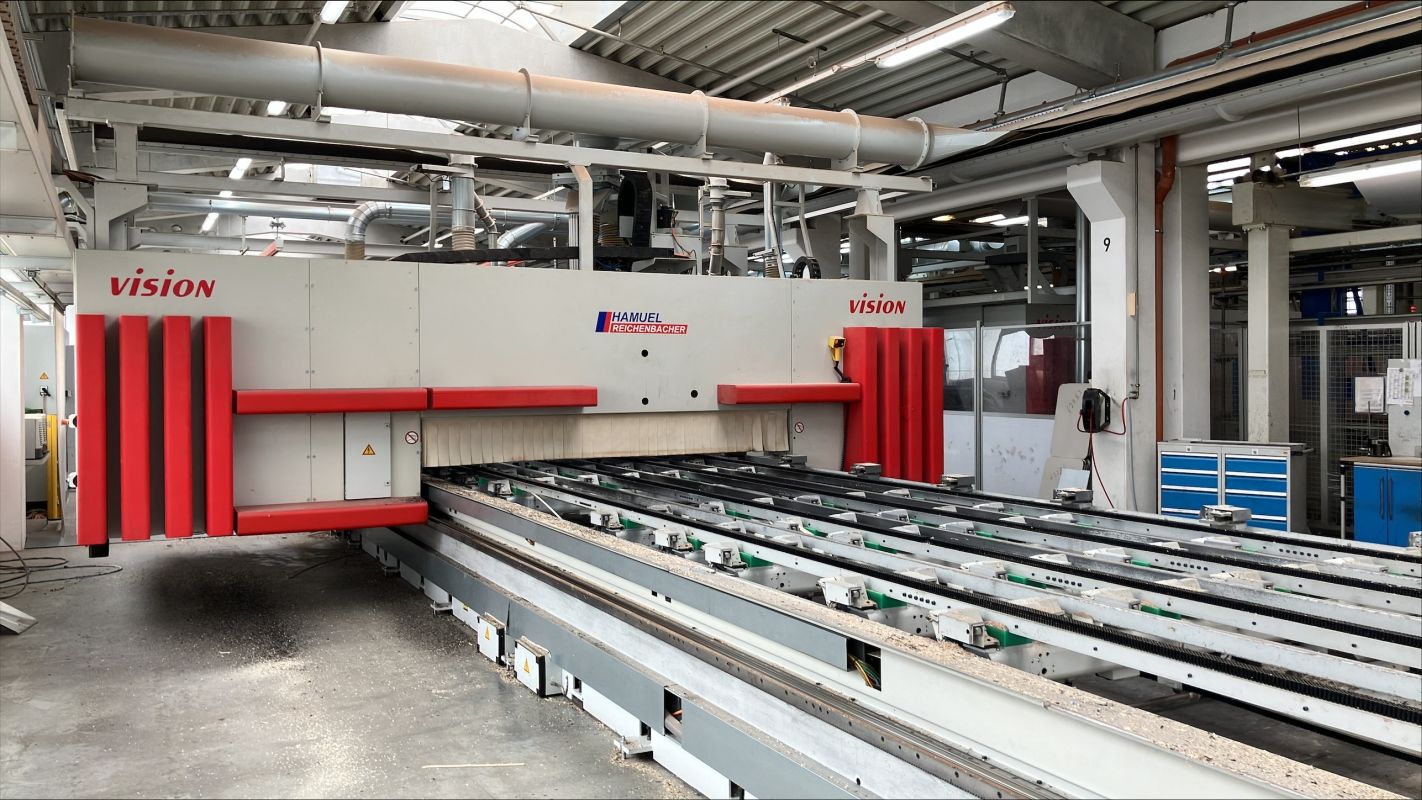

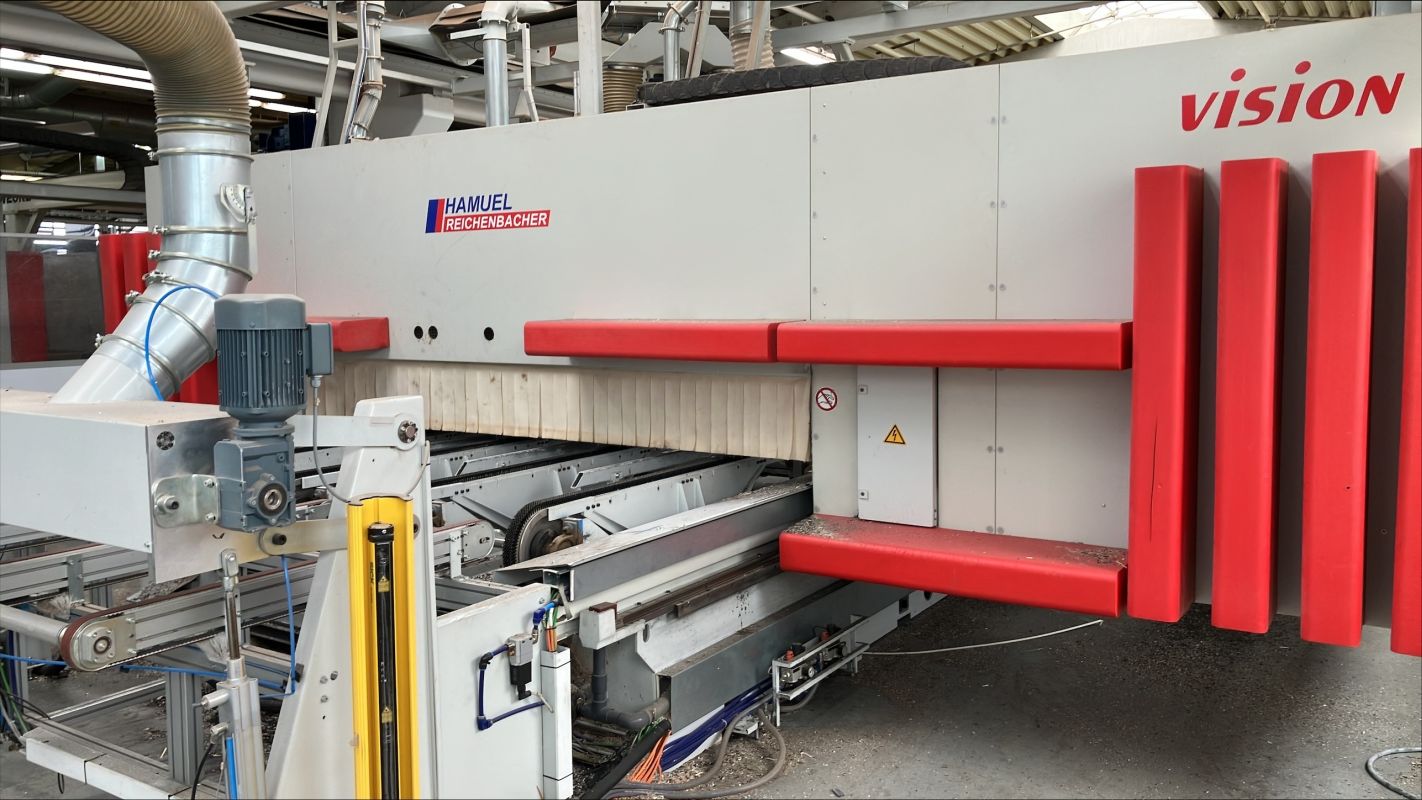

5-axis CNC machining center

5-axis CNC machining center
Brand: Reichenbacher
Type: VISION III-TT-L
Year of manufacture 2017


5-axis, 3-axis, MBG8, 5x SNA
automatic carrier table with vacuum pins

Data of axes and drives
Numerically controlled axes
X1/2-axes approx. 8,540 mm = longitudinal movement of gantry
Y1-axis approx. 2,500 mm = transverse movement of units
Z1-axis approx. 480 mm = vertical movement of units
B1 axis ? 180 ° = swivel movement
C1 axis ? 360 ° = rotary movement
X3 axis = movement of underfloor drilling unit
U2 to U10 axis = movement of carriers 1-9 (gantry)
Tool changer = rotary movement
Belt conveyor = rotary movement

Maximum speeds of the axes
in X direction: 60 m/min
in Y direction: 60 m/min
in Z direction: 20 m/min
Infinitely programmable working speed in the X/Y plane on any path.
The rotation speed of the B and C axes is max. 90 °/s.

Automatically adjustable support table with vacuum pins
Automatically adjustable supports with vacuum
suction plates are installed in the fixed machine bed in the X-direction.
Table size: approx. 8,500 x 2,600 mm

Working areas
The following working areas can be fully circulated when the work spindle (with tool
Ø=100mm) and the drilling unit are in a vertical position.
Simple loading: max. 8,500 x 2,600 mm
Max. workpiece weight: 150 carriers with vacuum suction plates (9 pieces). Workpiece weight: 150

Carrier with vacuum suction pads (9 pieces)
Movable carrier that can be moved by electric motor within a travel range of +/- 1,000 mm
Carrier at a distance of approx. 1000 mm
Min. distance between carriers: approx. 300 mm
8 vacuum suction cups (suction pads) with a Ø = 100 mm are provided on each carrier.
The belt drives divide the traverse into 1-2-2-2-1 suction cups.
The carriers are driven on both sides by electric motors.
Each carrier is equipped with a vacuum monitor.
The suction plates are equipped with blowing nozzles for cleaning the suction plates.

Vacuum pins Ø 100 mm (72 pieces in total)
The vacuum pins are permanently attached to the support.
Stroke = 100 mm
Effective stroke = 25 mm (above base belt)

Operating components
- Control panel TFT flat screen 17"
- Display computer PCU 50.5
- Operating system Windows 7
- User interface HMI Operate



Note:
The technical data and descriptions are a copy of the order confirmation at that time. Data are for information and are not binding.
