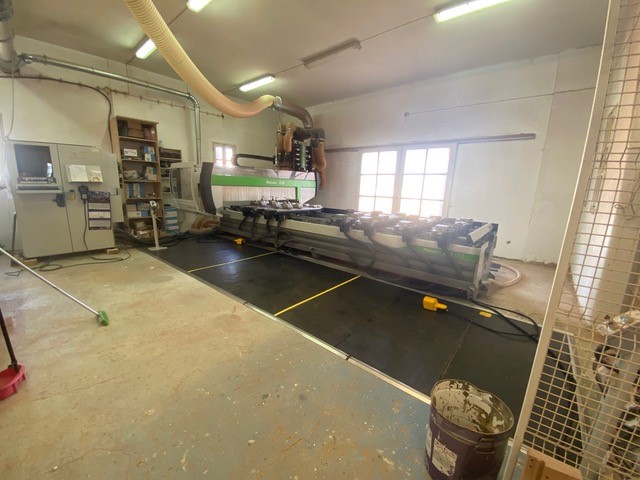

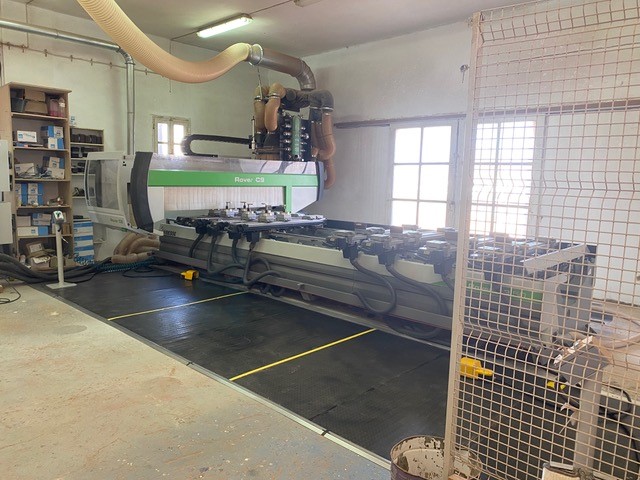

5-axis CNC machining center

5-axis CNC machining center
Brand: Biesse
Type: Rover C 9.50
Year of manufacture: 2009


technical data
- Working Dimension X: 4600 mm
- Working Dimension Y: 1935 mm
- Working Dimension Z: 275 mm
- Number of milling spindles: 1
- Main motor: 15 kW
- Rpm: max. 24000
- Torque support
- Milling spindle liquid cooled
- Tool clamping system: HSK-F63
- Chain changer
- Chain changer vertical
- Tool changer positions: 37
- Vertical drilling spindles: 29
- Horizontal drilling spindle in X: 8
- Horizontal drilling spindle in Y: 4
- Groove saw: In X-direction

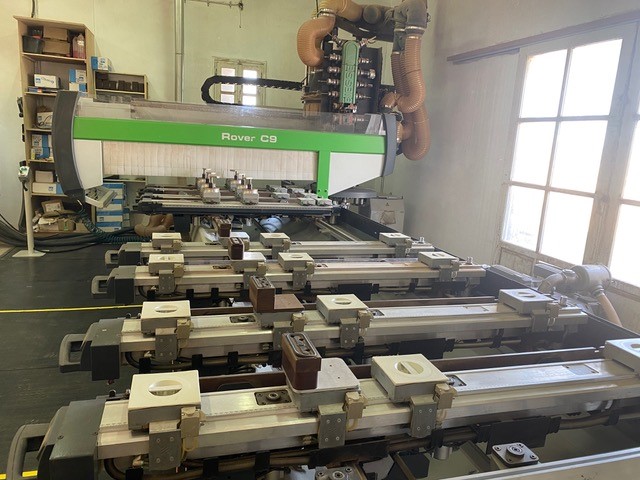

- Number of consoles: 8
- Three stop ranges
- Workpiece support aids
- 4-field processing
- Self-adjusting machine table

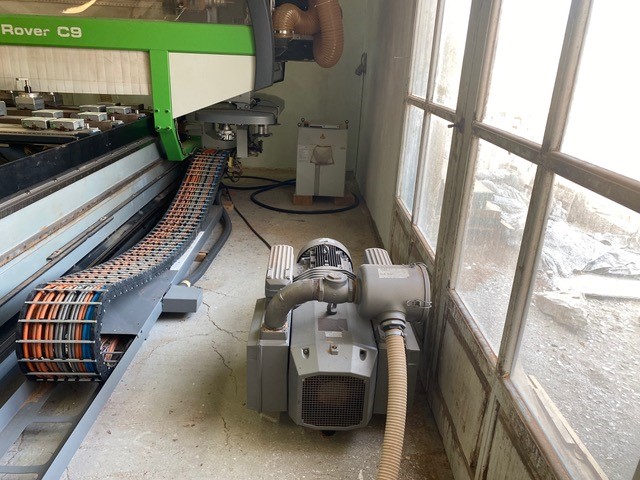

- Vacuum pump 250m³/h
- Special workpiece clamping system for windows and narrow workpieces
- Automatic lubrication
- Biesse Remote control unit RM 850



Note:
The technical data and descriptions are transcribed from the original order confirmation. The information is for reference only and is not legally binding.
