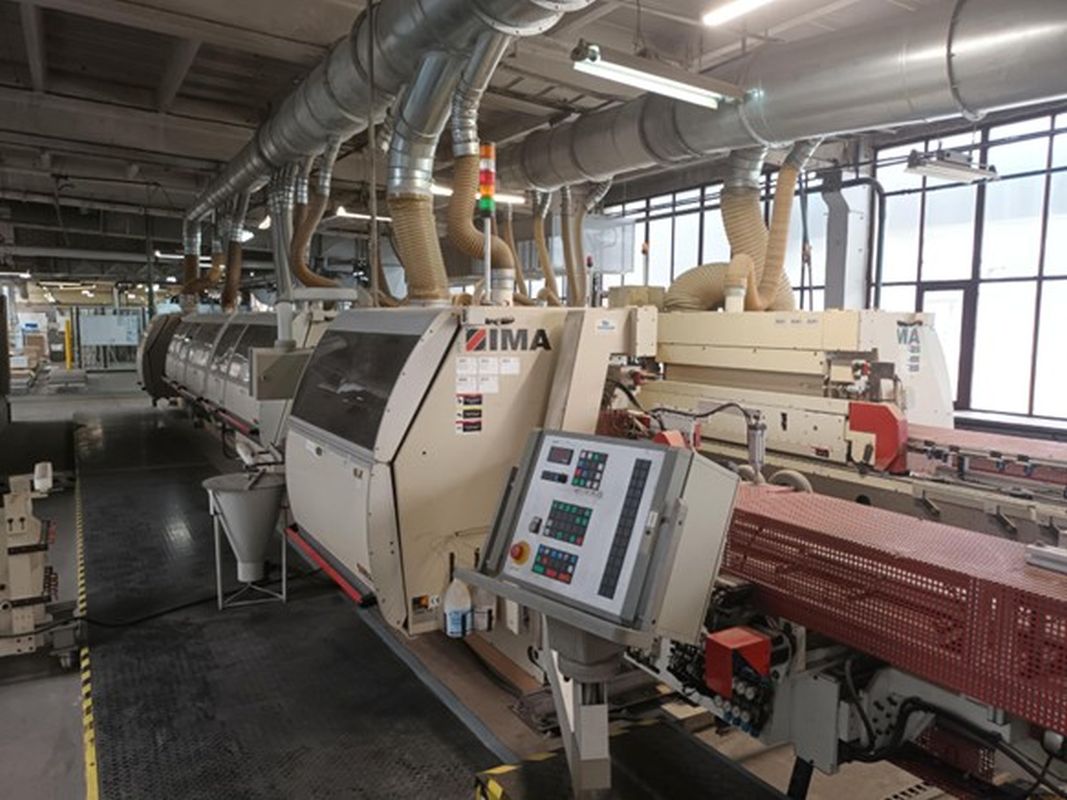

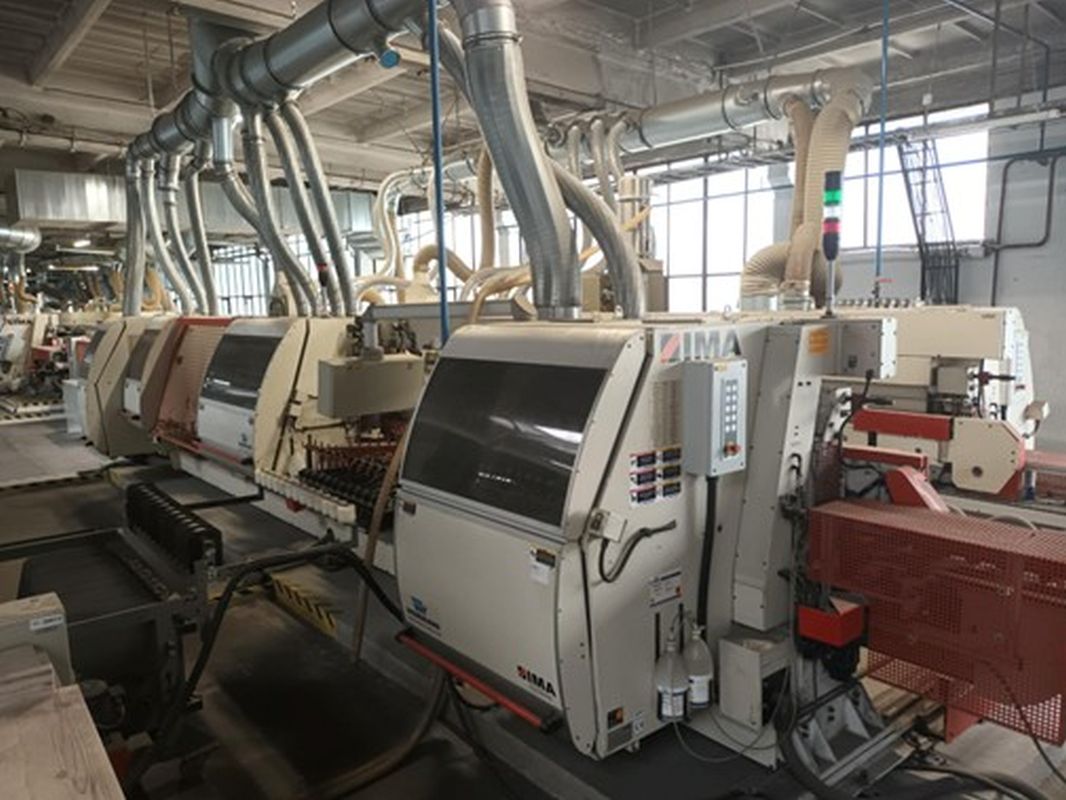

Used IMA line consisting of:

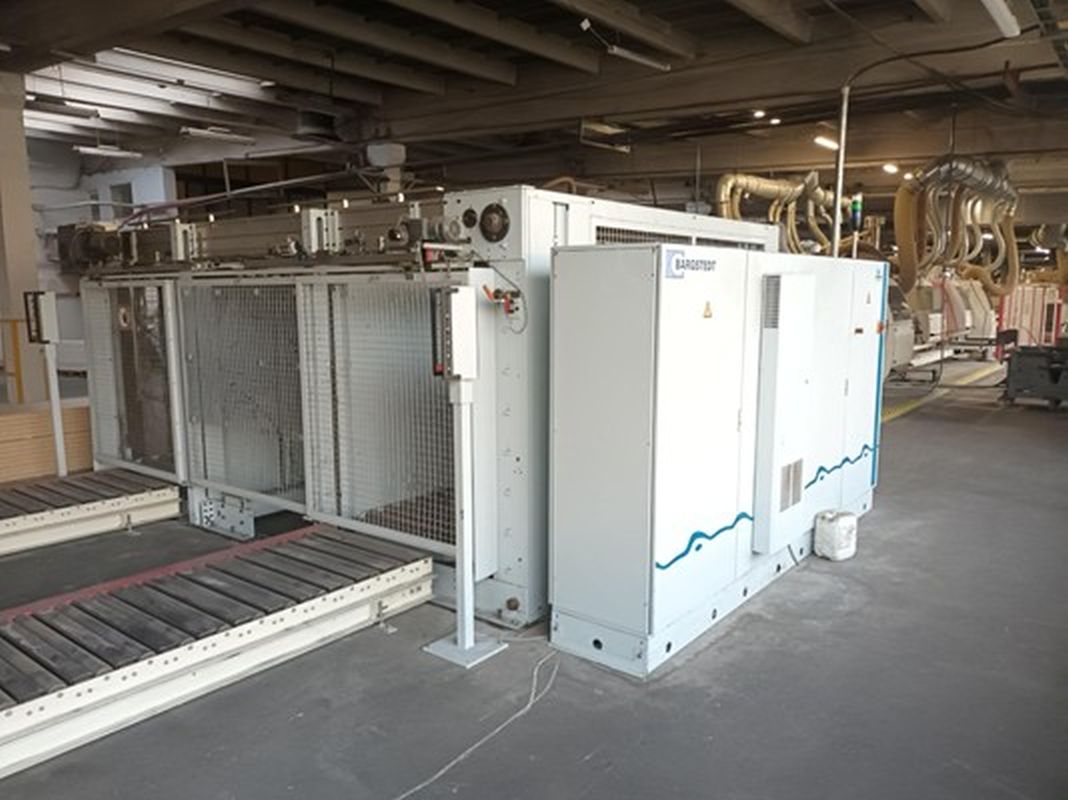

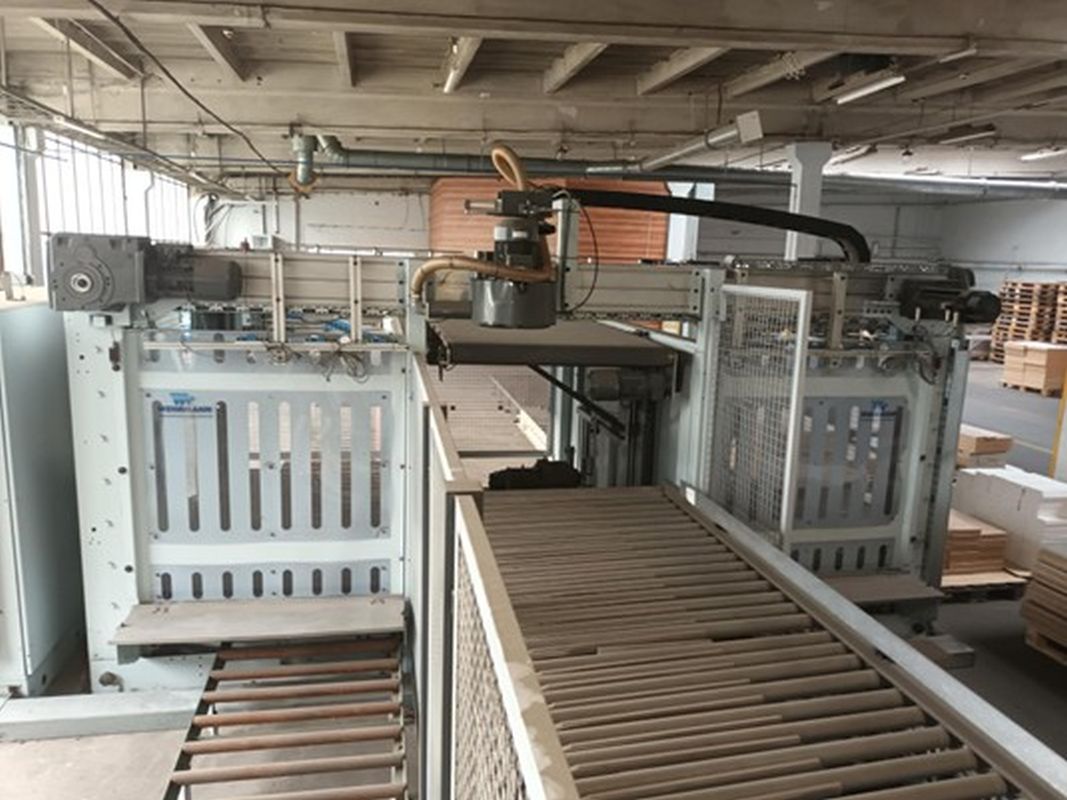

Automatic dual-chamber loading station
Brand: Bargstedt
Type: R TBH 22/D/30/12
Year of manufacture: 2003

Technical data
- Capacity: 8 times/min
- Loading with vacuum suction cups
- Maximum size of pieces 1300 x 2500 mm

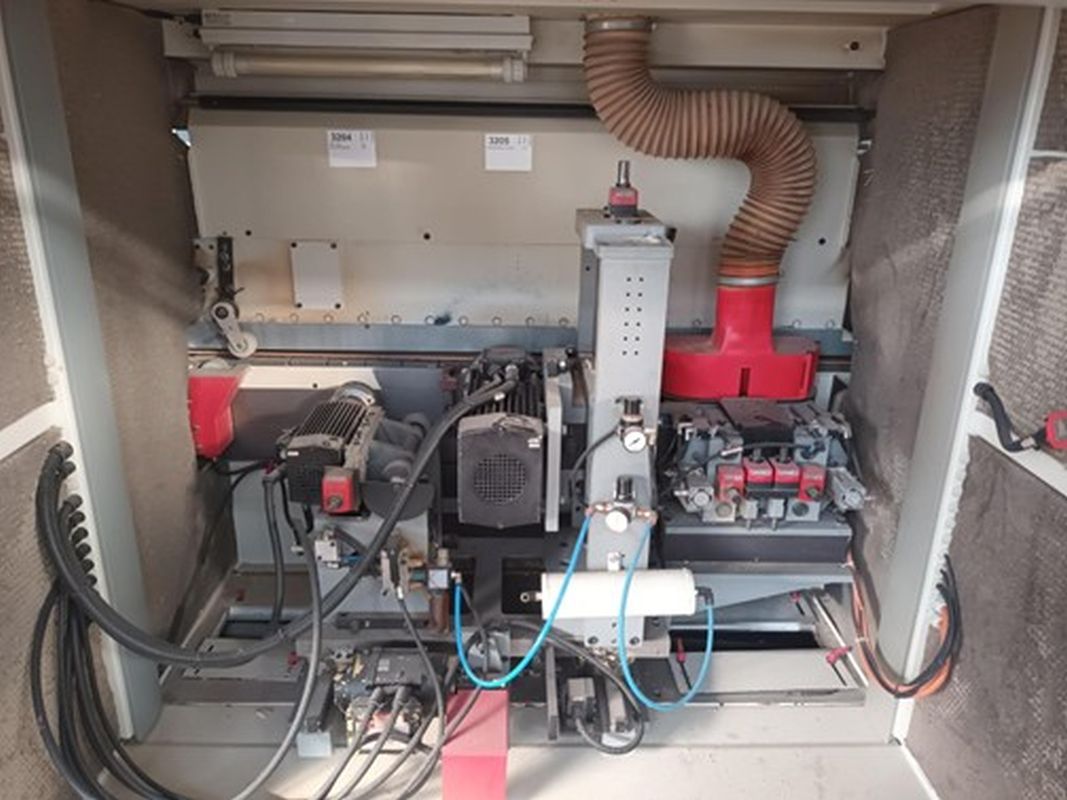

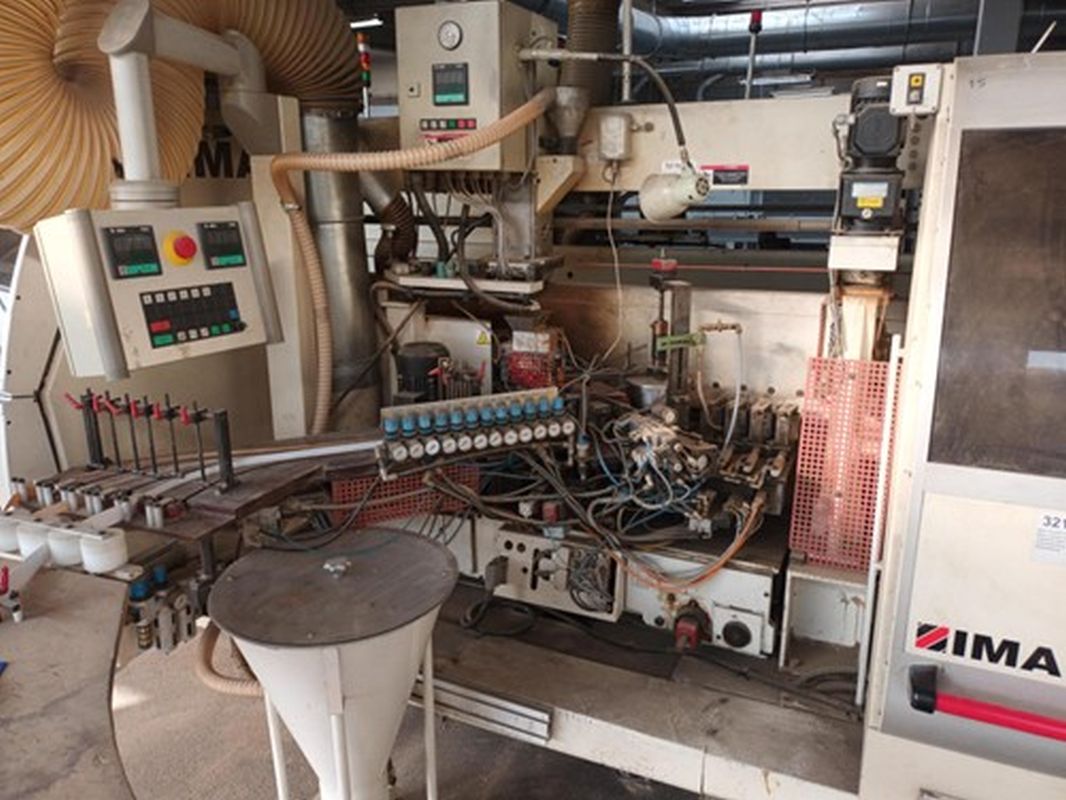

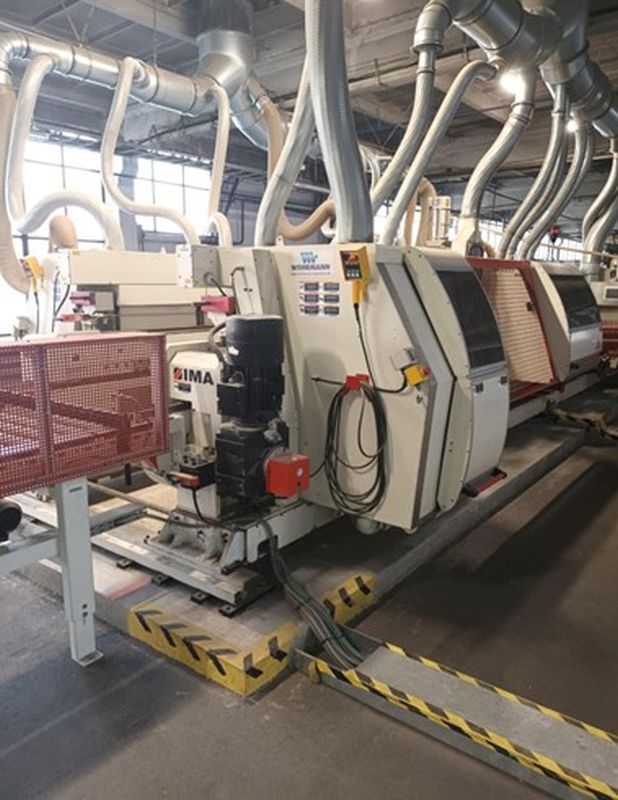

1. edge banding machine longitudinal
Brand: IMA
Type: Combima K/II/75/760/V/R3
Year of manufacture: 2000

Technical data
- Working width: 235 - 1100 mm
- Working length: 200 - 2500 mm
- Feed speed: 10 - 50 m/min
- Jointing milling

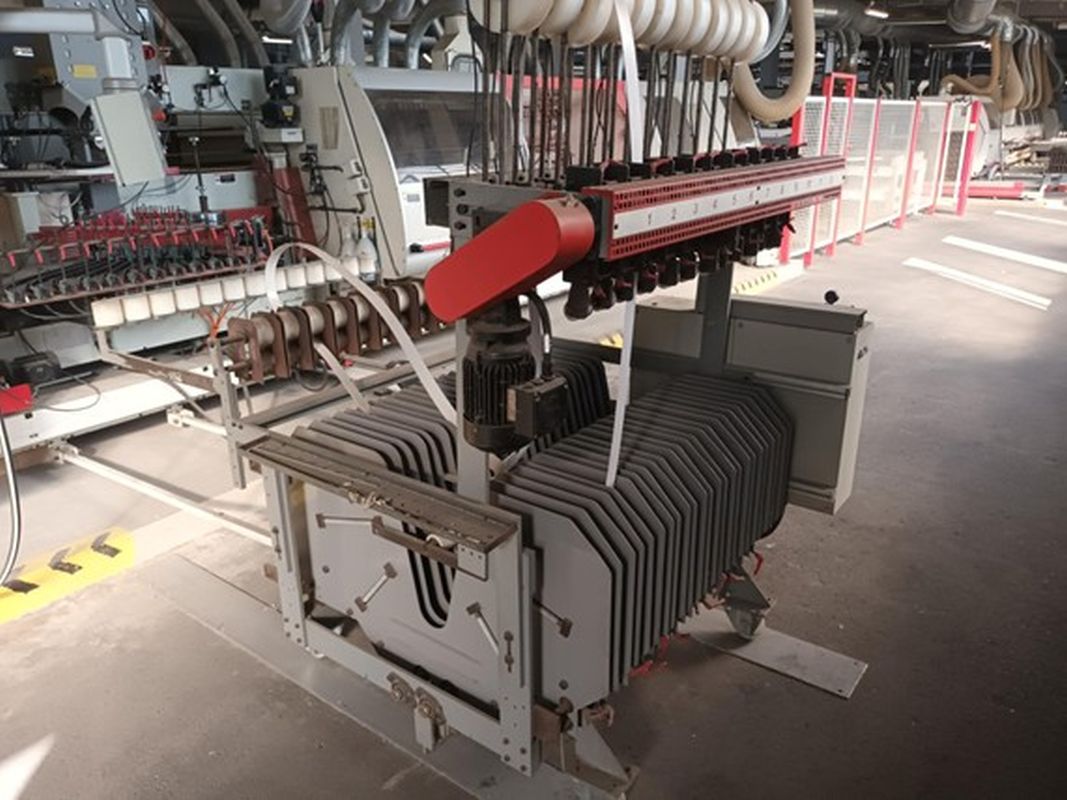

- Gluing unit + edge magazine 12 pcs. (automatic)

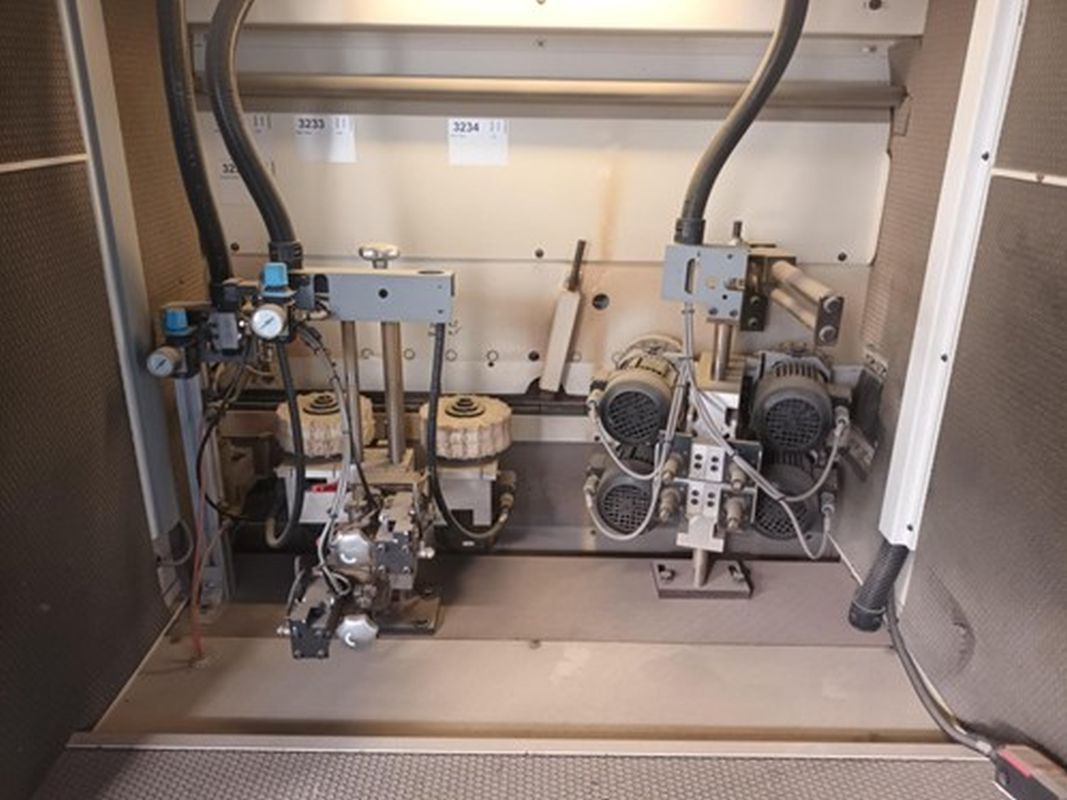

- Trimming unit (straight and profile)
- Surface scrapers
- Profile scrapers
- Buffing unit
- Grooving unit

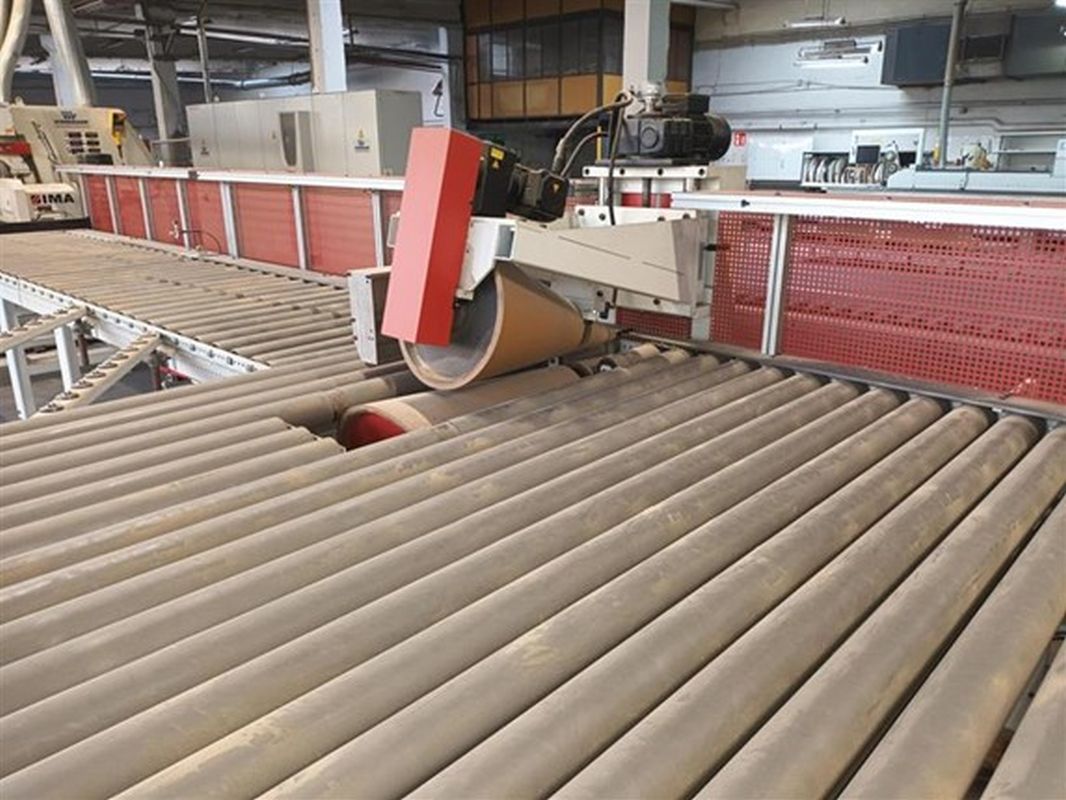

Turning station
Brand: IMA
Year of manufacture: 2020

2. edge banding machine, crosswise
Brand: IMA
Type: Combima K/II/R75/1320/V/R3
Year of manufacture: 2002

Technical data
- Working width: 235 x 2600 mm
- Working length: 200 x 2600 mm
- Feed speed: 10 - 40 m/min
- Jointing milling
- Gluing unit + edge magazine 6 pcs (semi-automatic)
- Cutting unit
- Trimming unit (straight or profile)
- MFA (top and bottom)
- Surface scrapers
- Profile scrapers
- Buffing unit
- Sanding unit

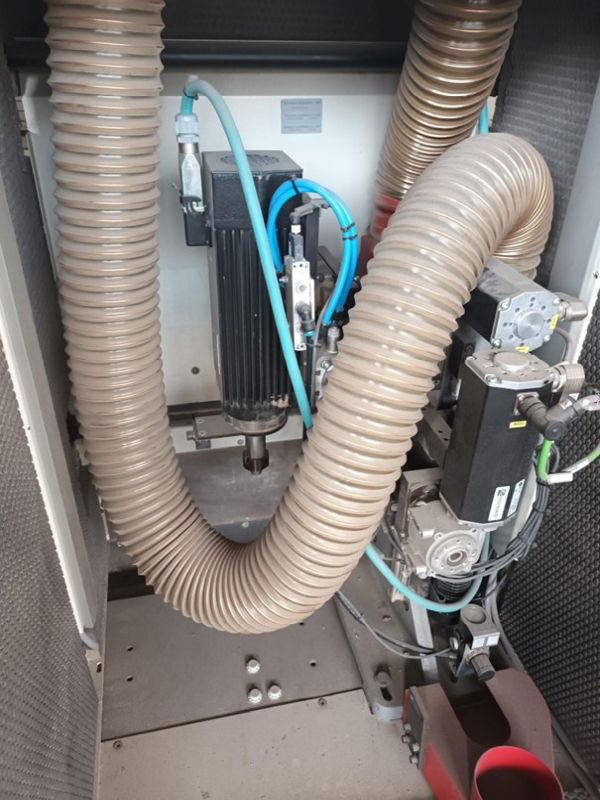

- Wood milling unit (automatic front cutter, manual rear cutter) can be operated at 90° and 180° angles



Note:
The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding.
