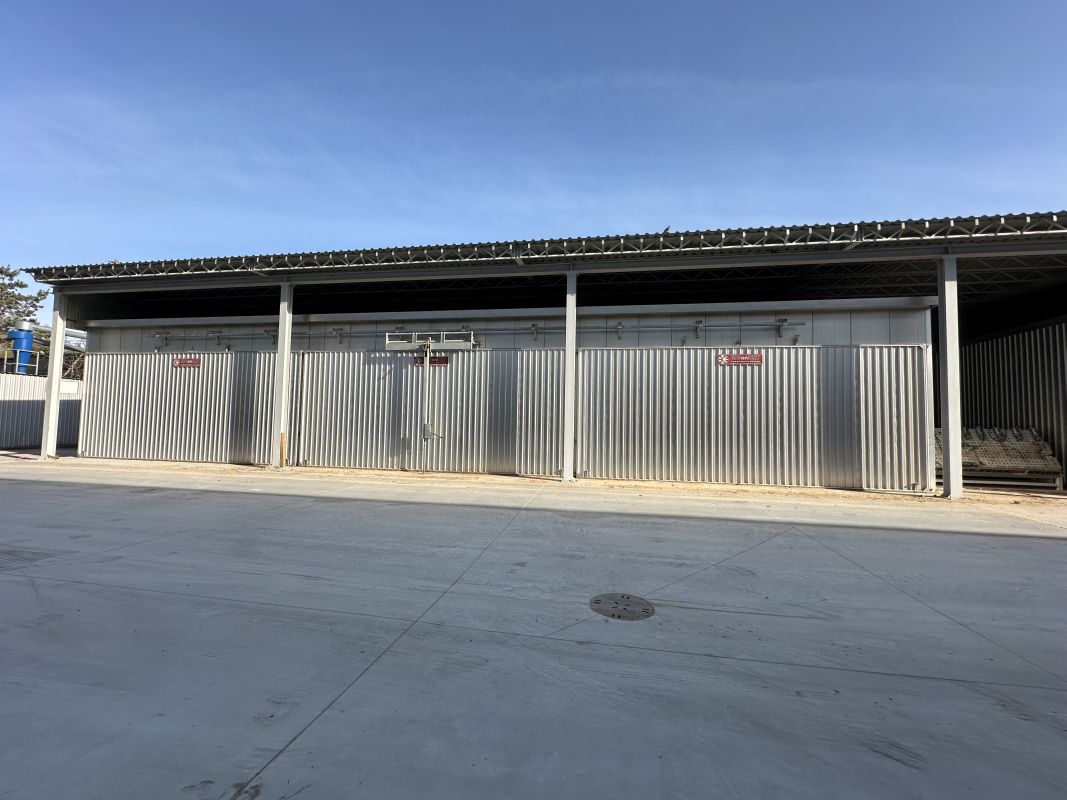

drying chamber

drying chamber
Brand: BigonDry
Type: Mod.LEM96.73.41.
Year of construction: 2021


Technical data
- number of chambers 3
- capacity of one chamber 90 m3
- chamber size 9.6x7.3x4.1 m
- total chamber size 10.2x7.5x5.4 m
- type of hardwood
- final moisture content 10 +/- 2%

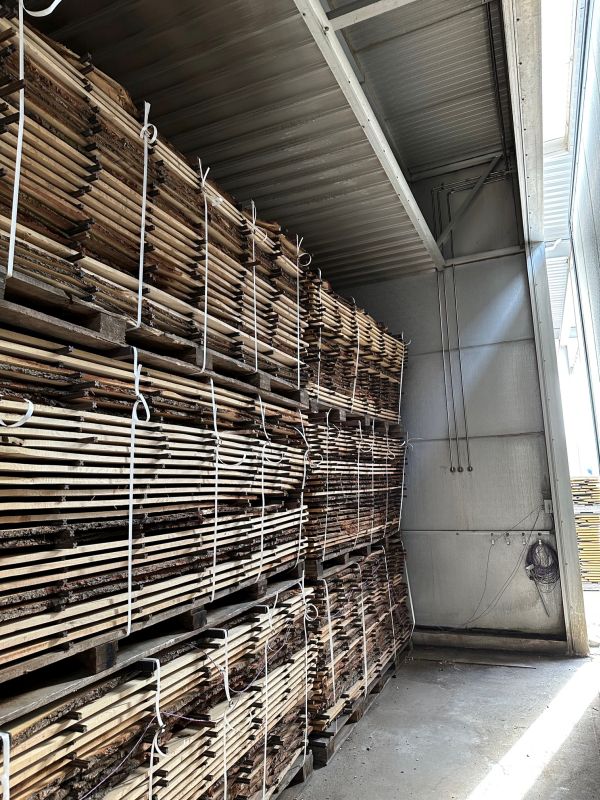

- drying package 4.5x1.2x1.2 m
- supporting structure aluminum
- wall insulation aluminum cassettes plus 100 mm glass wool

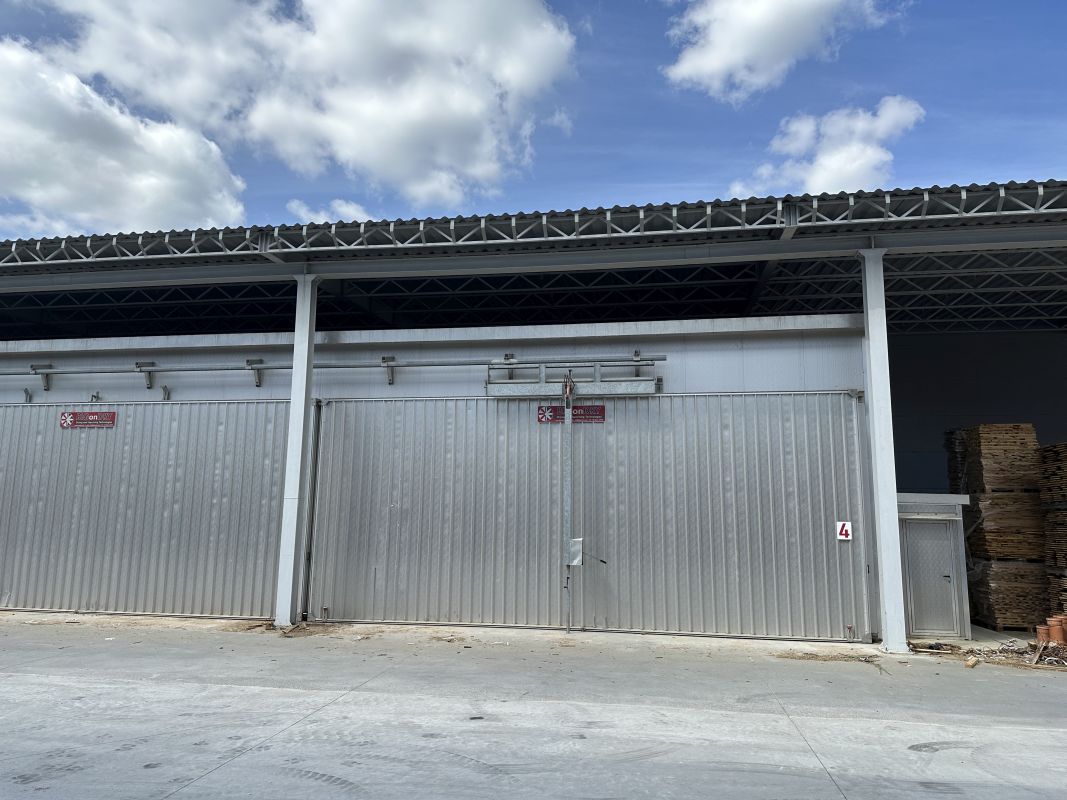

- sliding doors aluminum plus 100 mm mineral wool
- front unloading
- ventilation  900 mm
- ventilator power 3 kW
- nominal air volume 36000 m3/h
- heating water temperature 90-95 deg C
- heating capacity 380000-190000 kcal/h
- roof vents 2+2
- water spray rate 80 bar
- aluminium intermediate ceiling
- inspection doors
- wind resistance 110 km/hr
- snow load 200 kg/m2

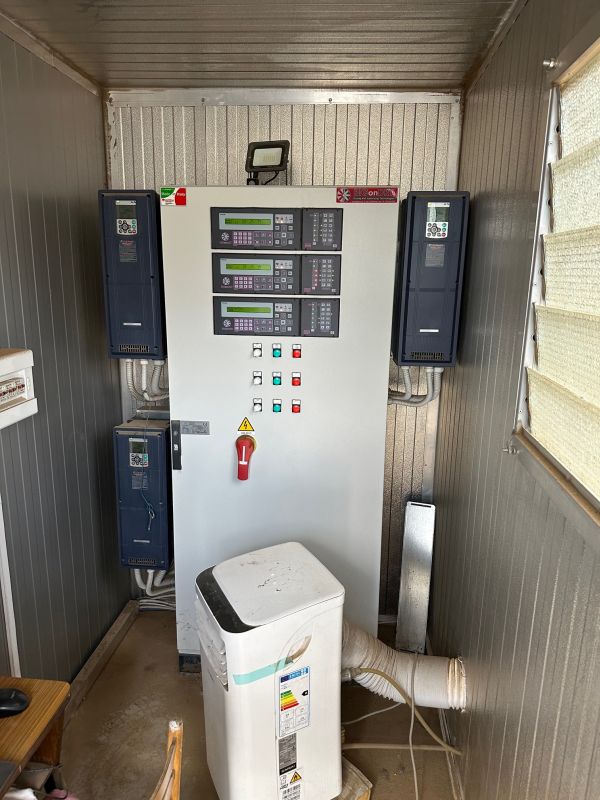

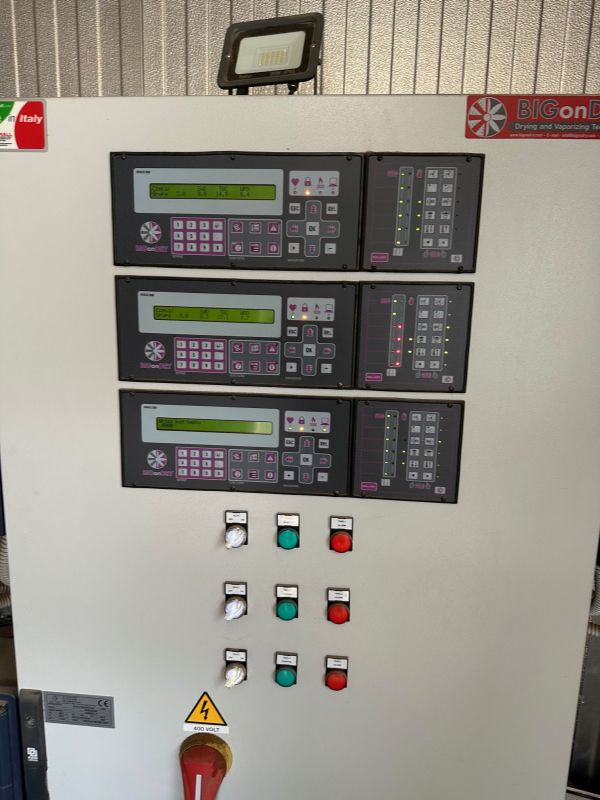

- control system fully automatic control unit VENUS 2500-24F-PRO
- noise level 68-70 dbA
- digital probes
- total power 18.5kW
- power supply 400v/50Hz


Note:
The technical data and descriptions are transcribed from the original order confirmation. The information is for reference only and is not legally binding.
