BrandFELDER
typeRL 300
stateUsed
stock number0401779
year2019
Maximum volume (V max): 7880 m³/h
Nominal volume (V nenn at 20 m/s): 5100 m³/h
Negative pressure at V nenn: 3090 Pa
Motor power: 8.2 kW
Motor speed: 2905 rpm
Extraction port diameter: 300 mm
Weight: 750 kg
Questions about this machine

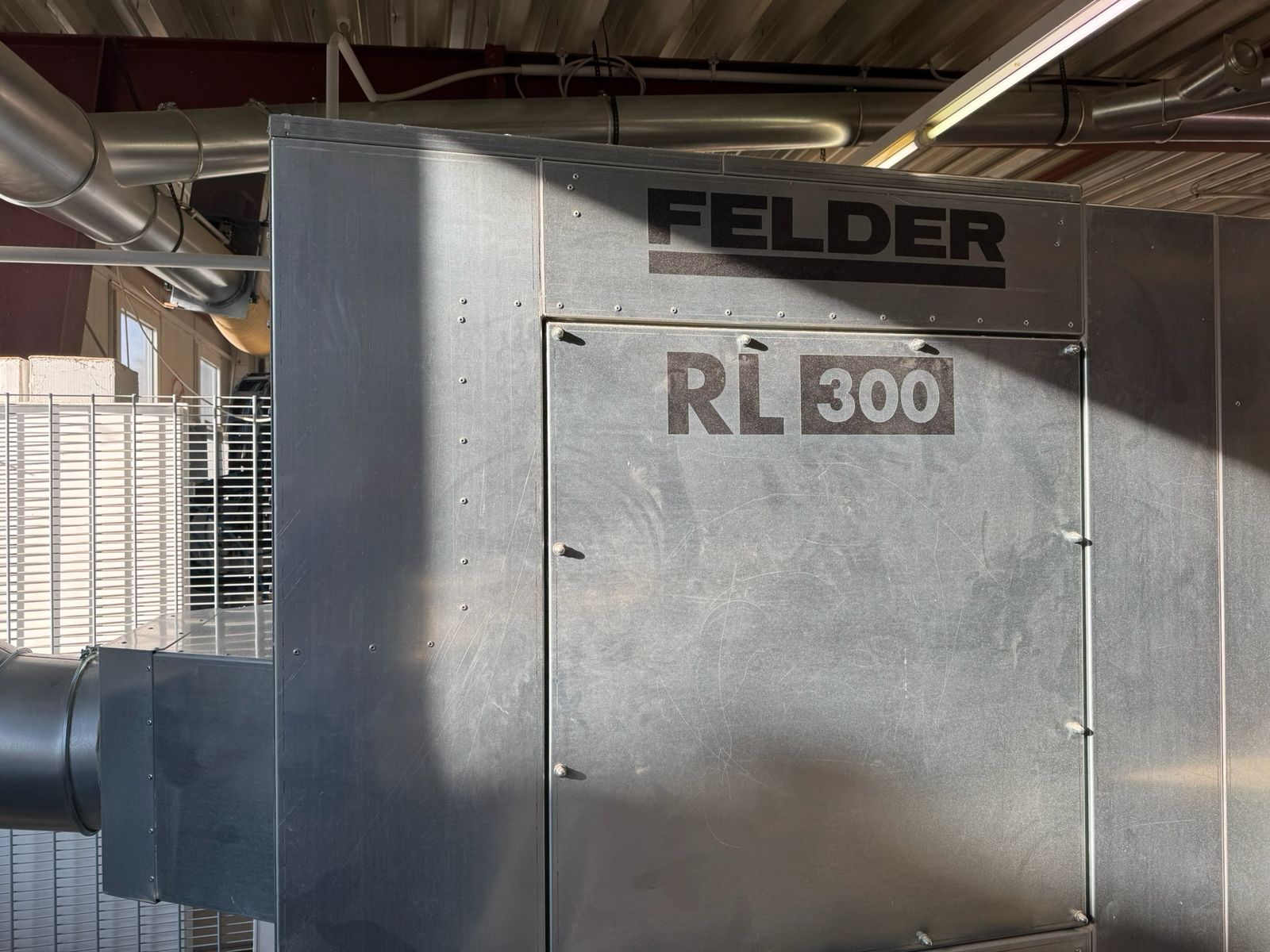

dust extraction system
Manufacturer: Felder
Model: RL 300
Year of manufacture: 2019
Technical data:
Maximum volume (Vmax): 7880 m³/h
Nominal volume (Vnenn at 20 m/s): 5100 m³/h
Negative pressure at Vnenn: 3090 Pa
Motor power: 8.2 kW
Motor speed: 2905 rpm
Extraction port diameter: 300 mm
Pre-fuse: 32 A
Voltage: 400 V, 50 Hz, 3-phase, 18 A
Weight: 750 kg
Note:
The technical data and descriptions are transcribed from the original order confirmation. The information is for reference only and is not legally binding.
