Troughfeed carcass press

Continuous Carcass Press
Manufacturer: LIGMATECH

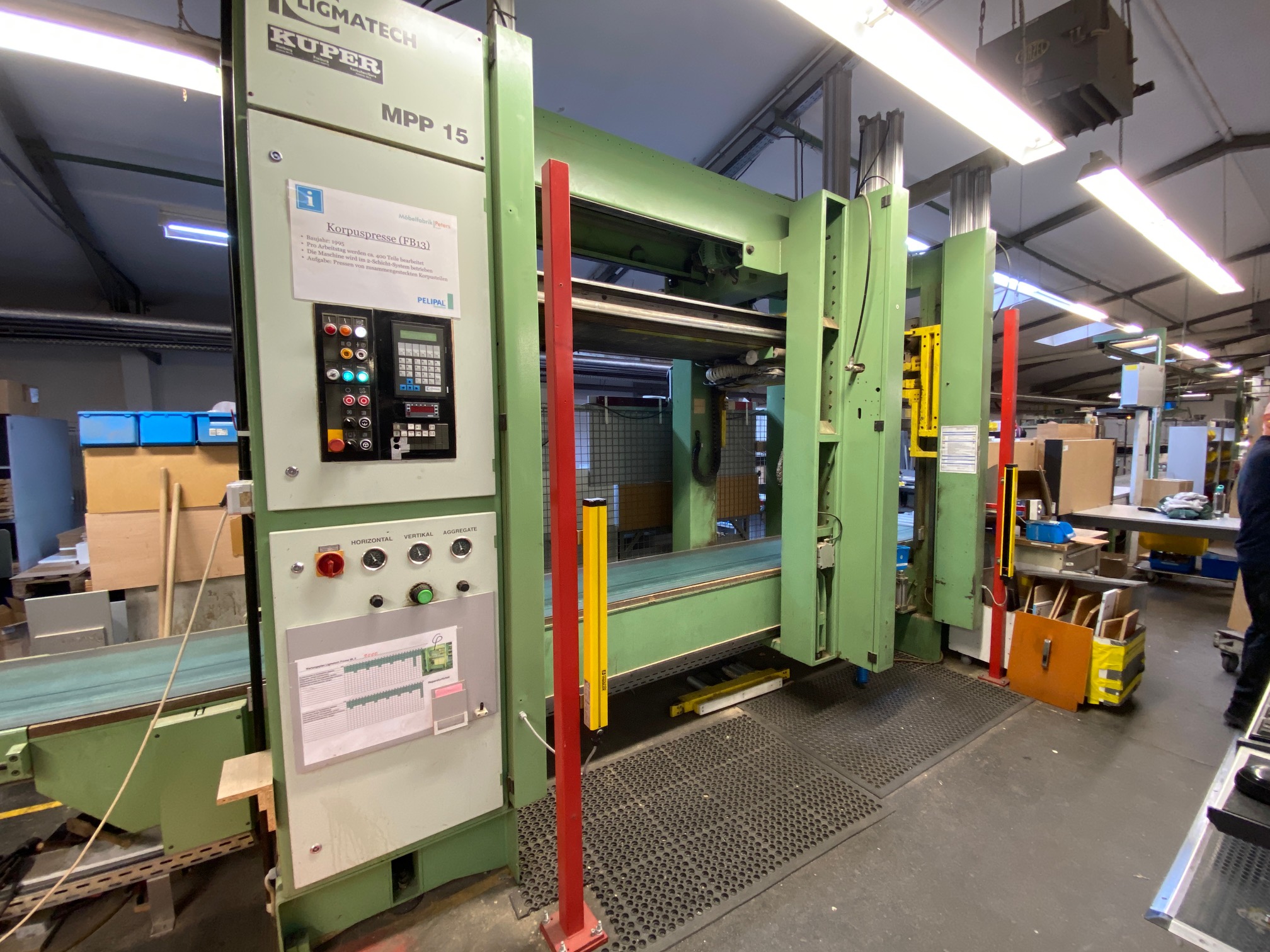

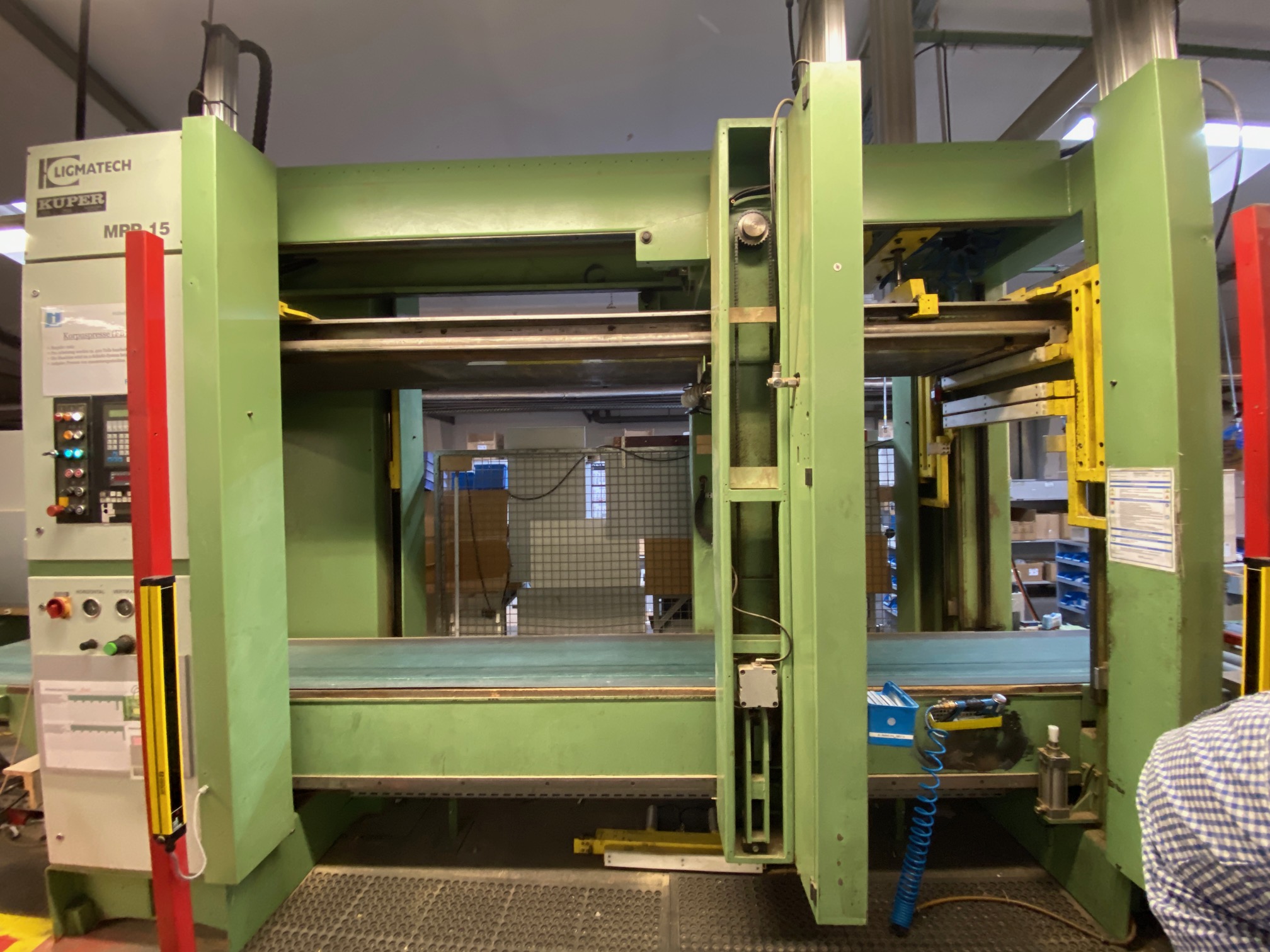

TYPE MPP 15
Year of construction: 1998

The MPP 15 is a flexible press for order-related production without setup times.

The MPP 15 can be used individually or in various combinations in an assembly line.

The pressing forces are applied pneumatically. Separately adjustable vertical and horizontal pressure makes it possible to press both horizontal and vertical carcasses.

The vertical forces are transmitted via a plate,
while the horizontal forces act on the carcass via pressing jaws.

The position of the central pressing jaws can be adjusted using adjustable stops, allowing for different heights of the bottom and sides.

The carcass is photoelectrically measured during infeed,
which automatically positions the horizontal pressure beam.

Technical specifications:

Body dimensions:
Length: min. 300 mm / max. 2300 mm
Height: min. 300 mm / max. 1220 mm
Depth: max. 600/800/1000 mm (depending on press type)

Pressure:
Vertical max. 17 kN
Horizontal max. 16 kN

Working height: 500 mm
Transport speed:
Min. 8 m/min. / max. 37 m/min.
Pressing time: Selectable up to 999 s

Operating voltage: 400 V, 50 Hz
Control voltage: 24 V DC (according to VDE)
Required air pressure: 5...8 bar
Air consumption: 120 NL/working cycle
Total connected load: 3 kW
Weight: approx. 4 tons
Required room height: 3000 mm

Extended infeed conveyor as pre-insertion point

Note:
The technical specifications and descriptions are a copy of the original order confirmation. Data is provided for information purposes only and is not binding.
