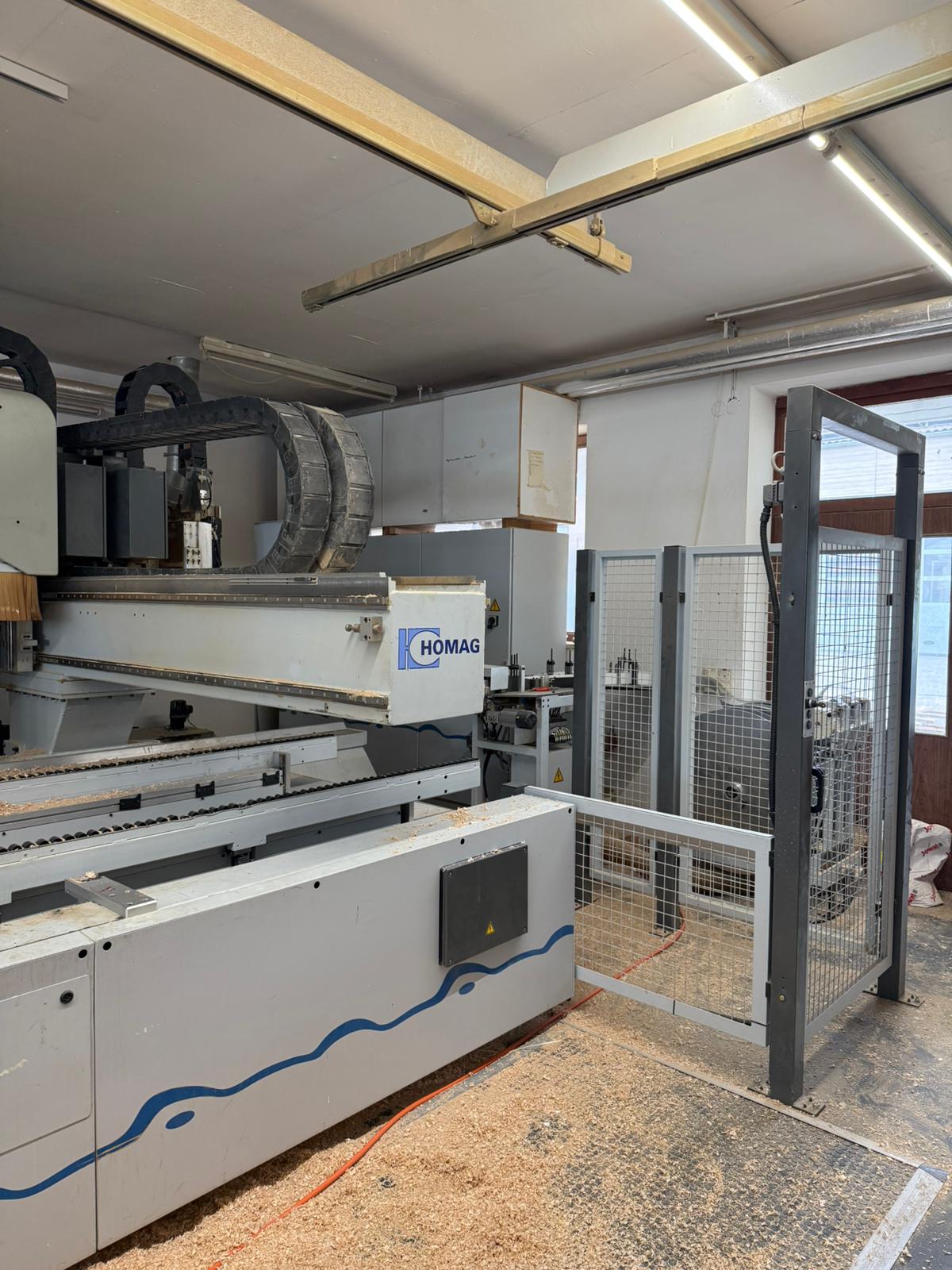

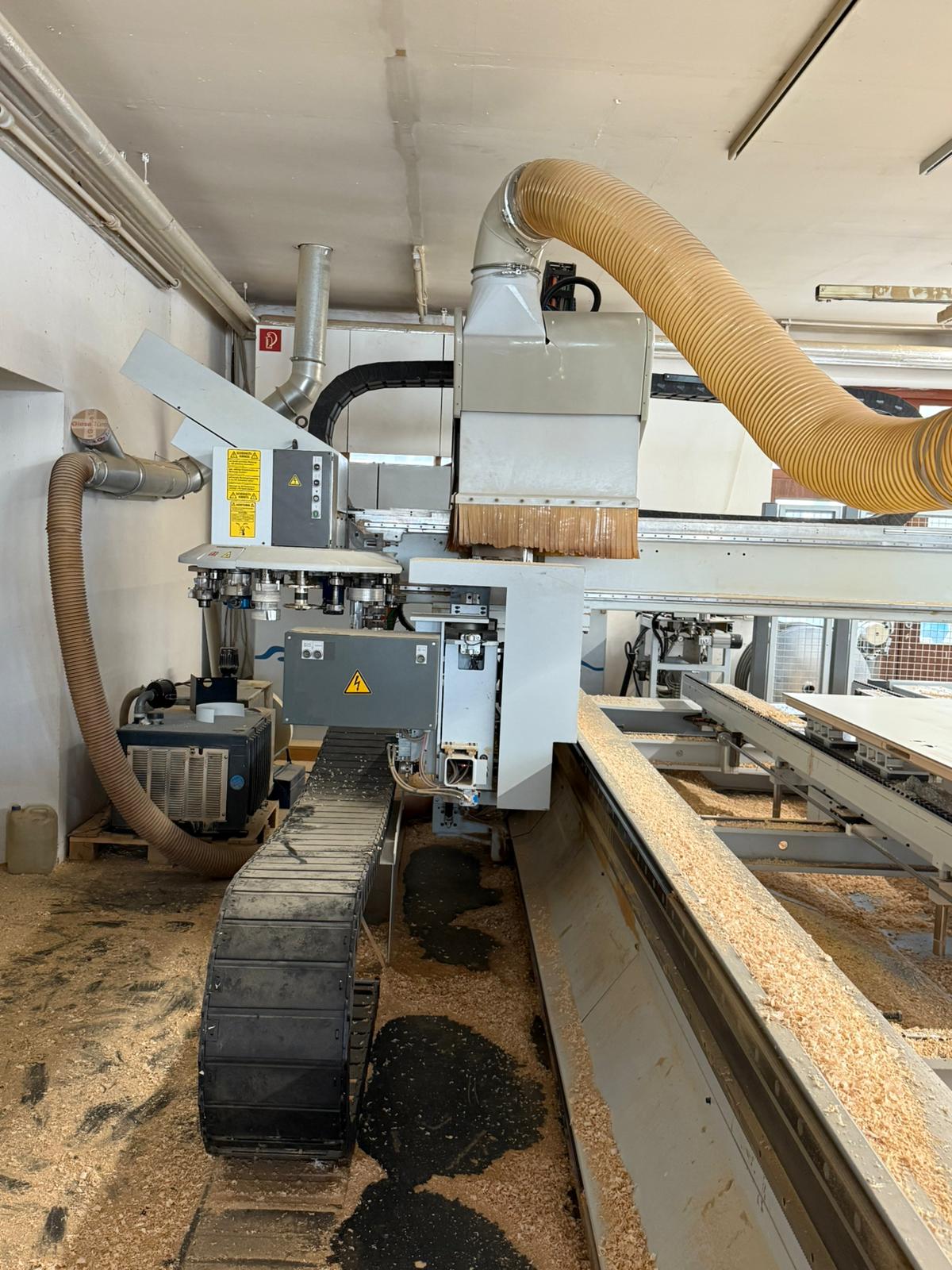

CNC machining center

CNC machining center
Brand: Homag
Type: PROFI BAZ20/30/16/V/D
Year of manufacture: 2003


Technical data

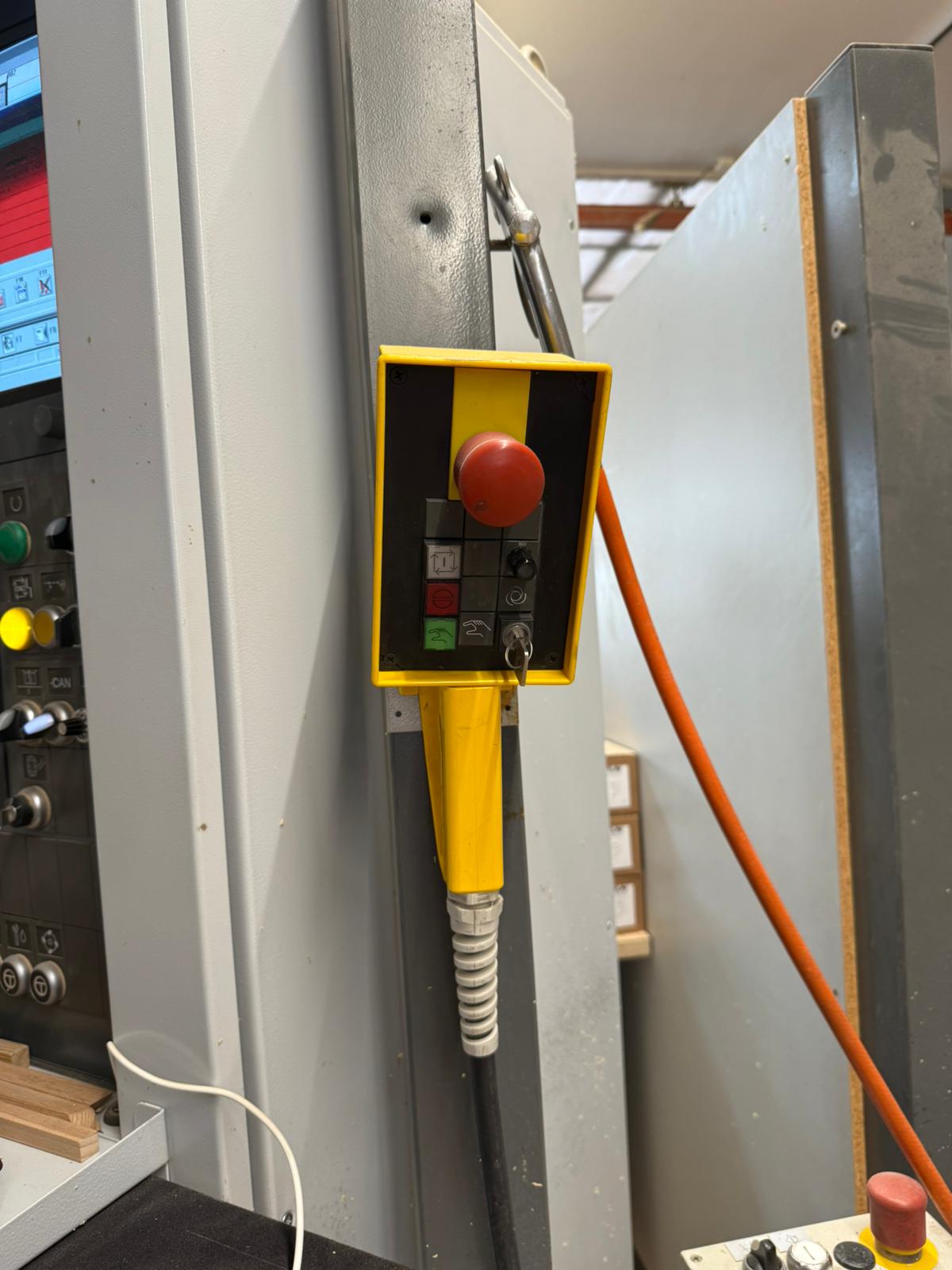

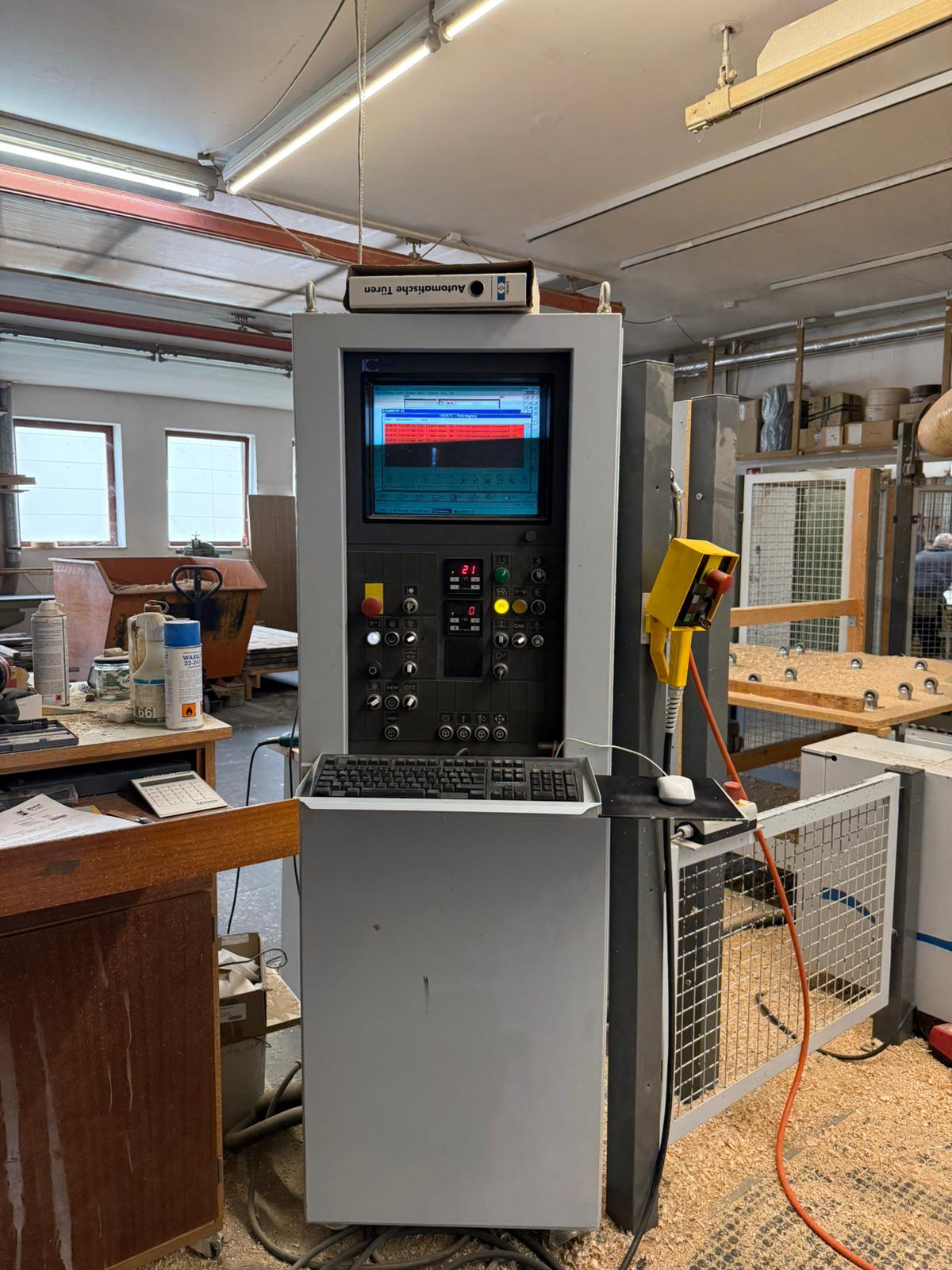

Homatic CNC control

WOODWOP CNC programming system

Postprocessor

Workpiece dimensions
- Workpiece length: 800 - 3000 mm
- Workpiece width: 350 - 1400 mm
- Workpiece thickness: max. 70 mm with edge / max. 80 mm for milling
- Frieze width: min. 120 mm
- Weight: max. 150 kg

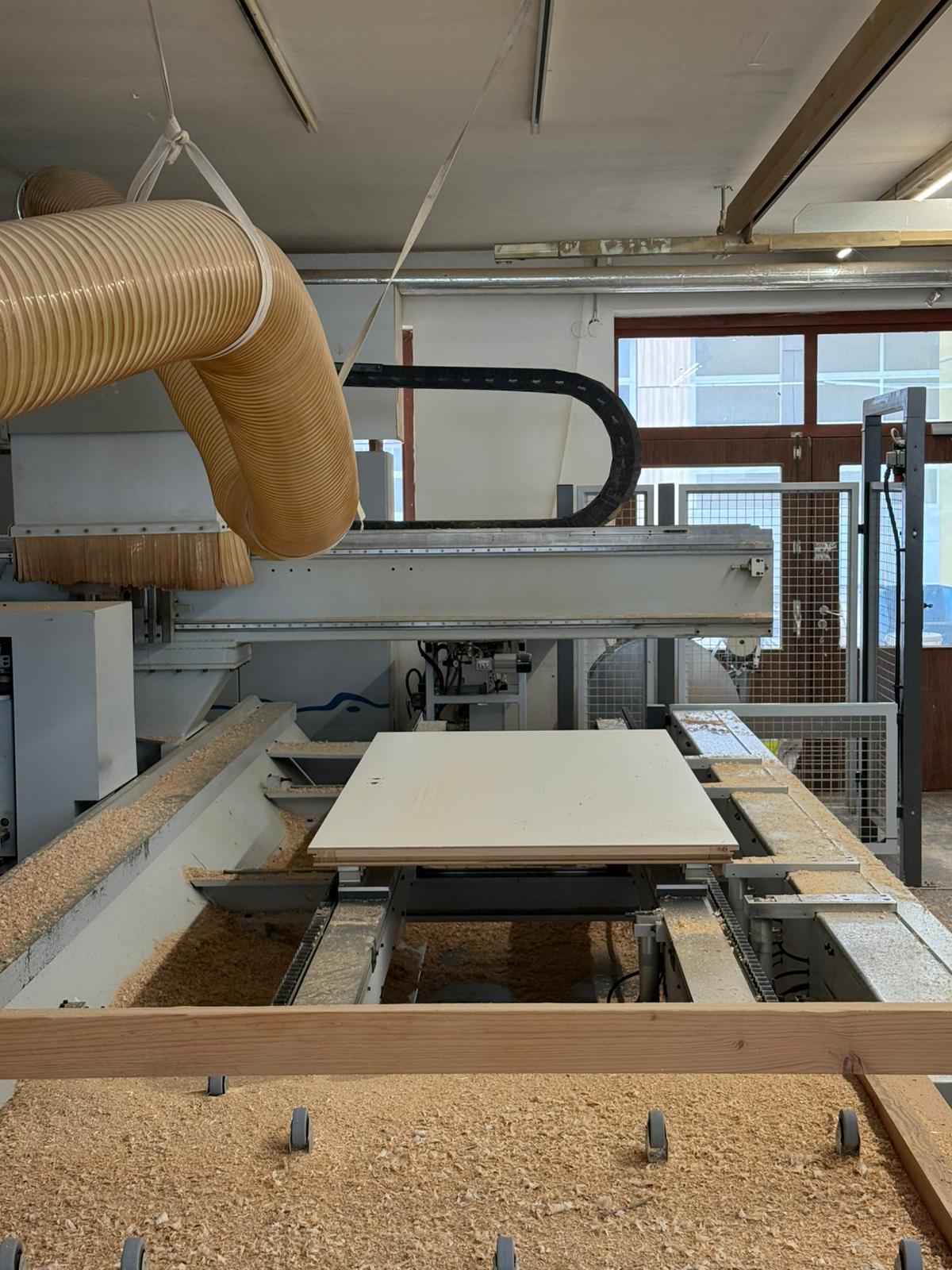

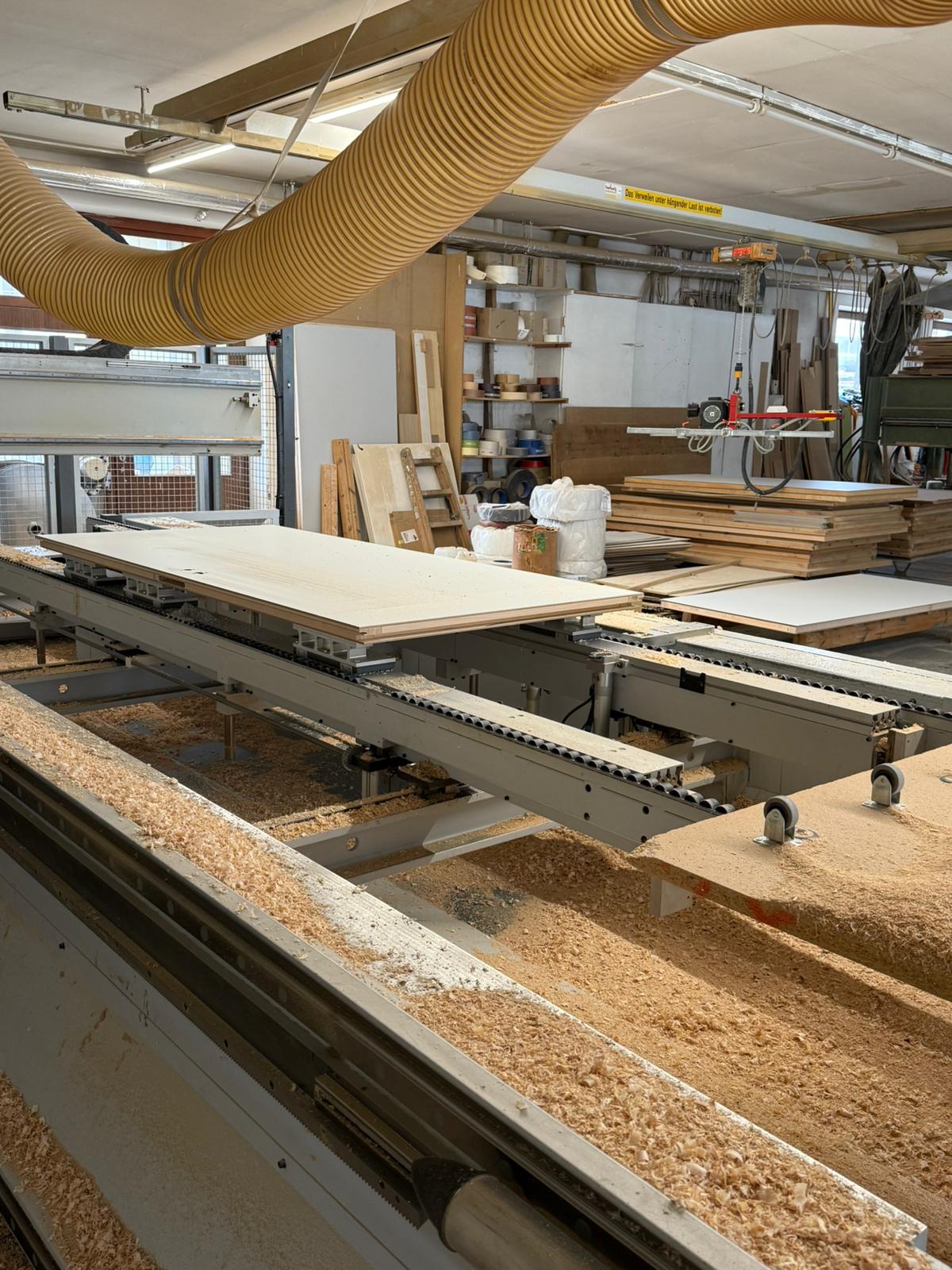

Continuous table
- Longitudinal console 1 permanently installed
- Longitudinal console 2 manually adjustable via width adjustment in Y direction
- 8 vacuum clamps 125 x 50 x 100 mm
- Working height lower edge of workpiece 950 mm

Motor, width adjustment longitudinal console D-table
- For different workpiece widths via servo drive for continuous table
- Per longitudinal console

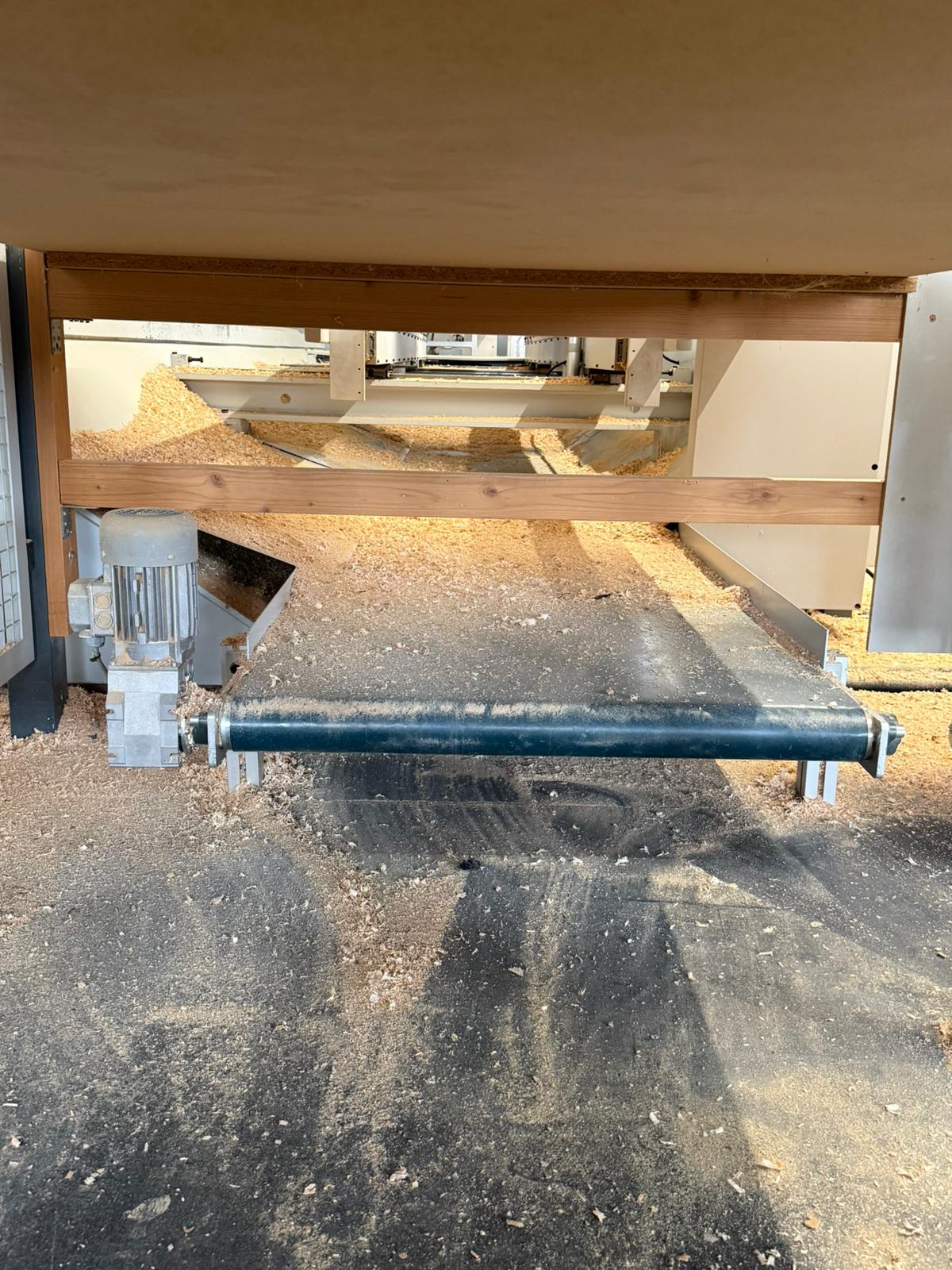

Chip conveyor belt
- Chip and scrap disposal via integrated chip belt below the longitudinal crossbars

Stop bolt for top layer overhang
- Stop bolt with lifting and rotating device for workpieces with max. 20 mm top layer overhang
- Individually selectable, end position monitored, stroke 110 mm.
- For manual placement of doors

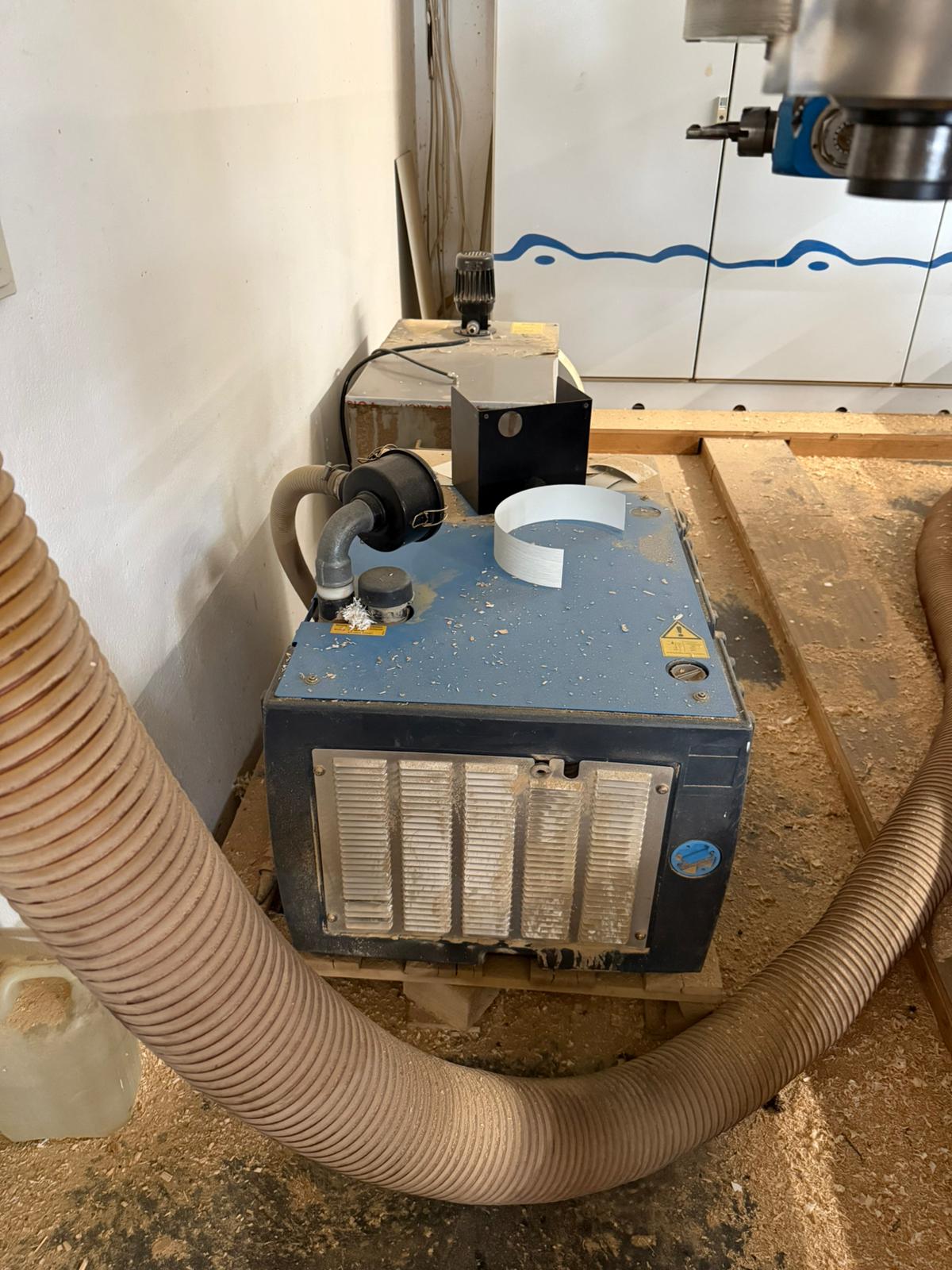

Vacuum pump 100/140 m3/h

Unit for moving the vacuum clamps
- Mounted on the unit carrier with pneumatic extension console
- For max. 4 vacuum clamps per longitudinal console

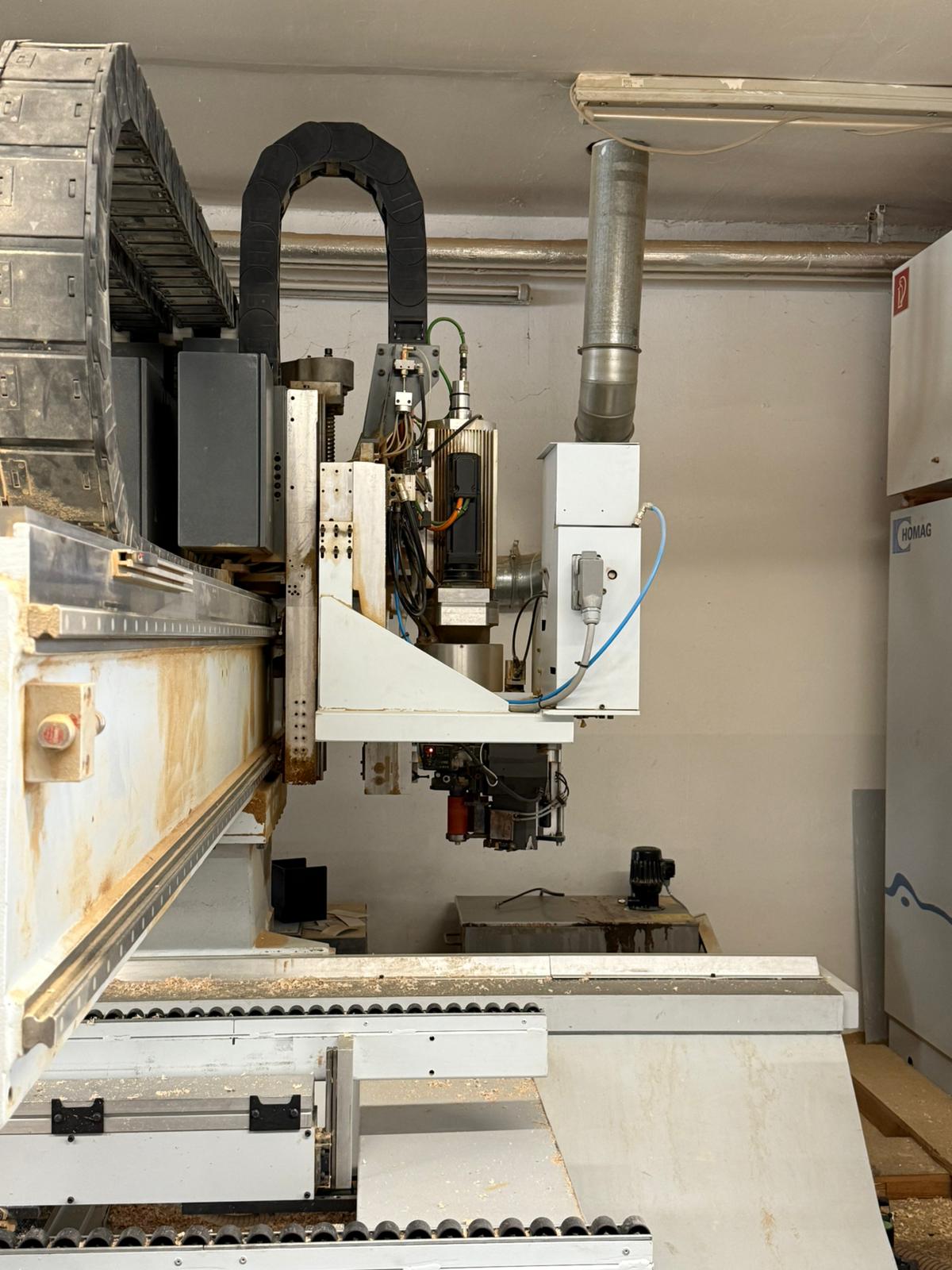

Main spindle 12 kW
- Tool holder HSK F63
- Room extraction for all tools and units
- Three-phase asynchronous motor 12 kW at S1, water-cooled
- Tool weight: max. 6 kg incl. holder
- Tool length: max. 200 mm from lower edge of motor spindle
- Tool diameter: max. 180 mm for milling tools / max. 200 mm for grinding tools
- Frequency converter: 15 kW
- Speed range: 1500 - 18000 rpm, infinitely variable, programmable
- Full rated power from 12000 rpm

Aggregate interface for main spindle
- For connecting the machining aggregates
- Pneumatic and swivel drive interface
- C-axis with torque drive and 3-point support

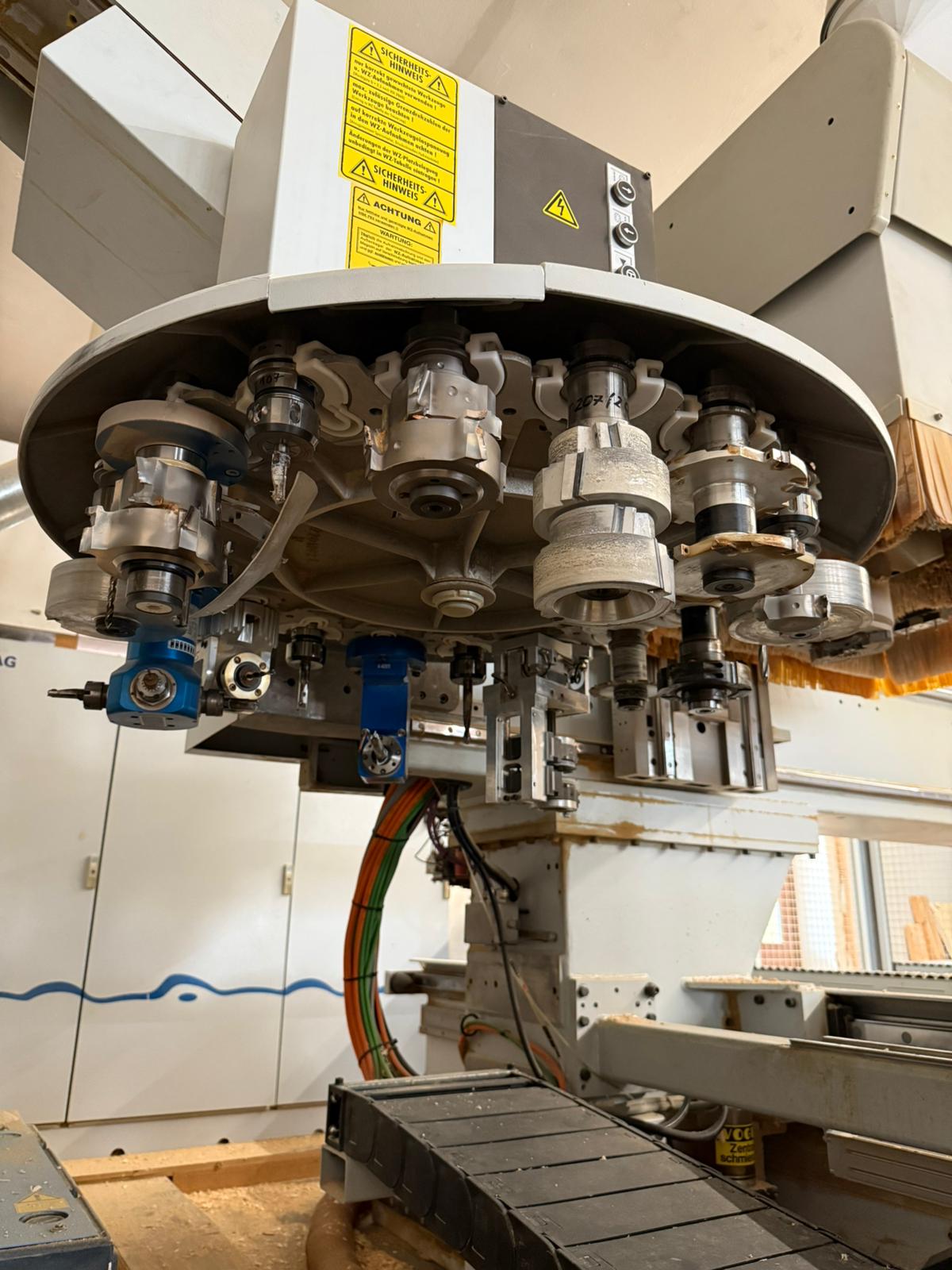

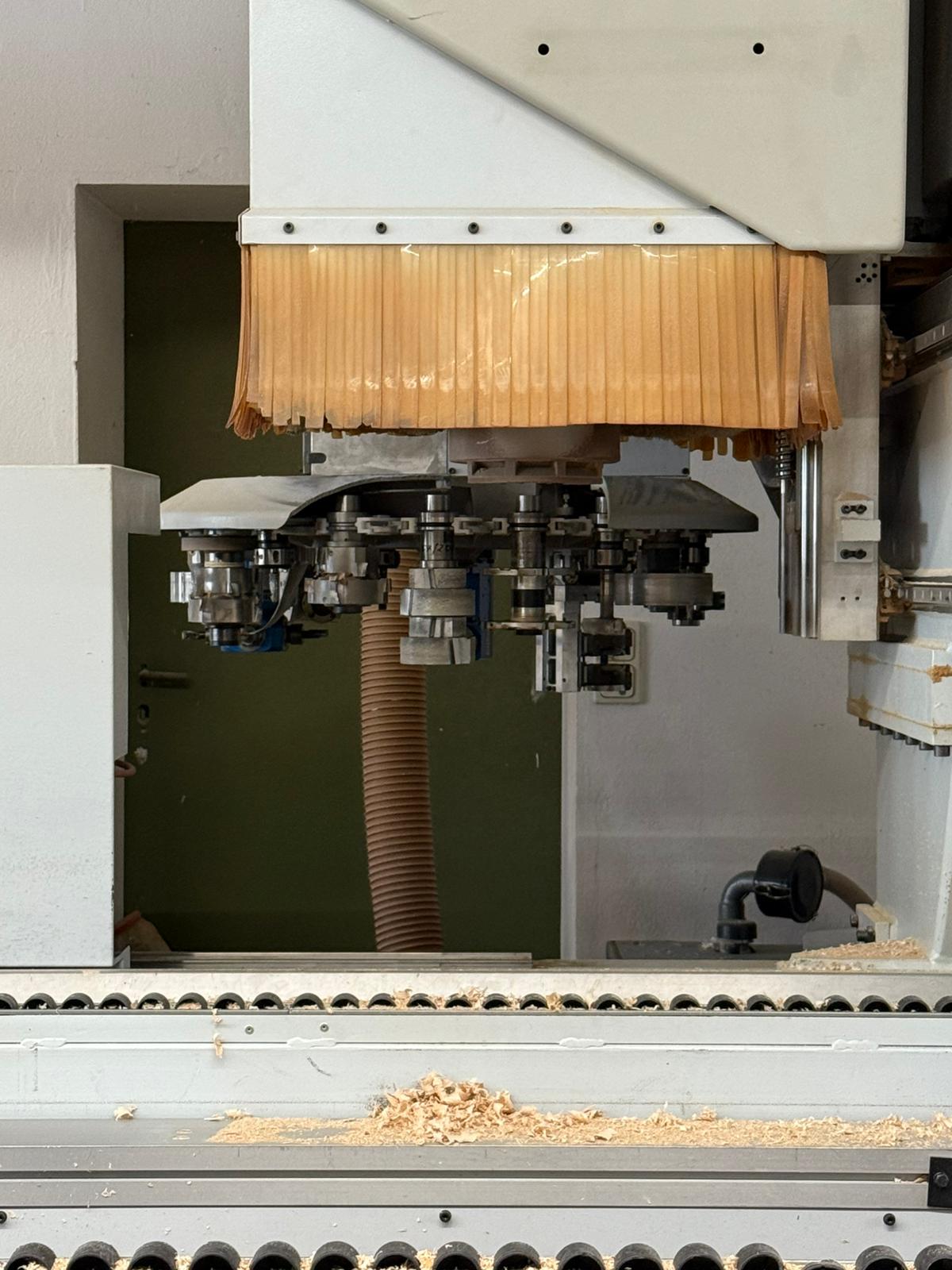

18-position disk changer
For tools and aggregates with HSK F63
Tool weight: 6 kg
Tool length: max. 200 mm from bottom edge of motor spindle

The following tool and unit configurations are possible
- 18 x Ø max. 130 mm
- 9 x Ø max. 180 mm and 9 x Ø max. 70 mm
- Tool diameter max. 200 mm for grinding tools
- Tool changer can be raised for traveling pickup position on the left side

Drilling/milling unit 4 - spindles F. Tool changer
- for automatic changeover to the main spindle
- Collet chuck ER25 up to max. 16 mm shank diameter
- Tool protrusion max. 50 mm
- Speed: max. 13500 rpm
- Standard collet Ø 10 mm
- Unlimited swiveling via C-axis
- Without tool

Lock case milling unit 2 spindles D=16/20
- With integrated blow-out nozzle
- Double-sided spindle exit with counter-rotating direction
- Speed: 12,000 rpm
- Unlimited swiveling via C-axis
- Without tools

Swiveling saw/drill unit for tool changer
- For chamfer cuts and angled drilling
- Manually swiveling from 0 to 90 degrees
- Mounting flange Ø 30 mm with countersunk screws
- TK diameter 52 mm
- Prepared for crosscut saw: Ø max. 180 mm
- Drill chuck with Weldon chuck: D=10 mm
- Speed: max. 9000 rpm
- Can be swiveled infinitely via C-axis
- No tools required

Milling cutter holder D=30 with chip guide
- Holder mandrel length 45 or 80 mm
- Chip guide plate control via C-axis
- Space requirement in changer Ø 140 mm

Drive spindle / V / for gluing units
- Mounted on the right side of the boom for mounting and driving various gluing units

Consisting of:
- Cross slide with Y-axis anti-reb and extension stroke in Z-direction
- Anti-reb spindle with C-axis and electrical/electronic interface

Z-axis for drive spindle / V /

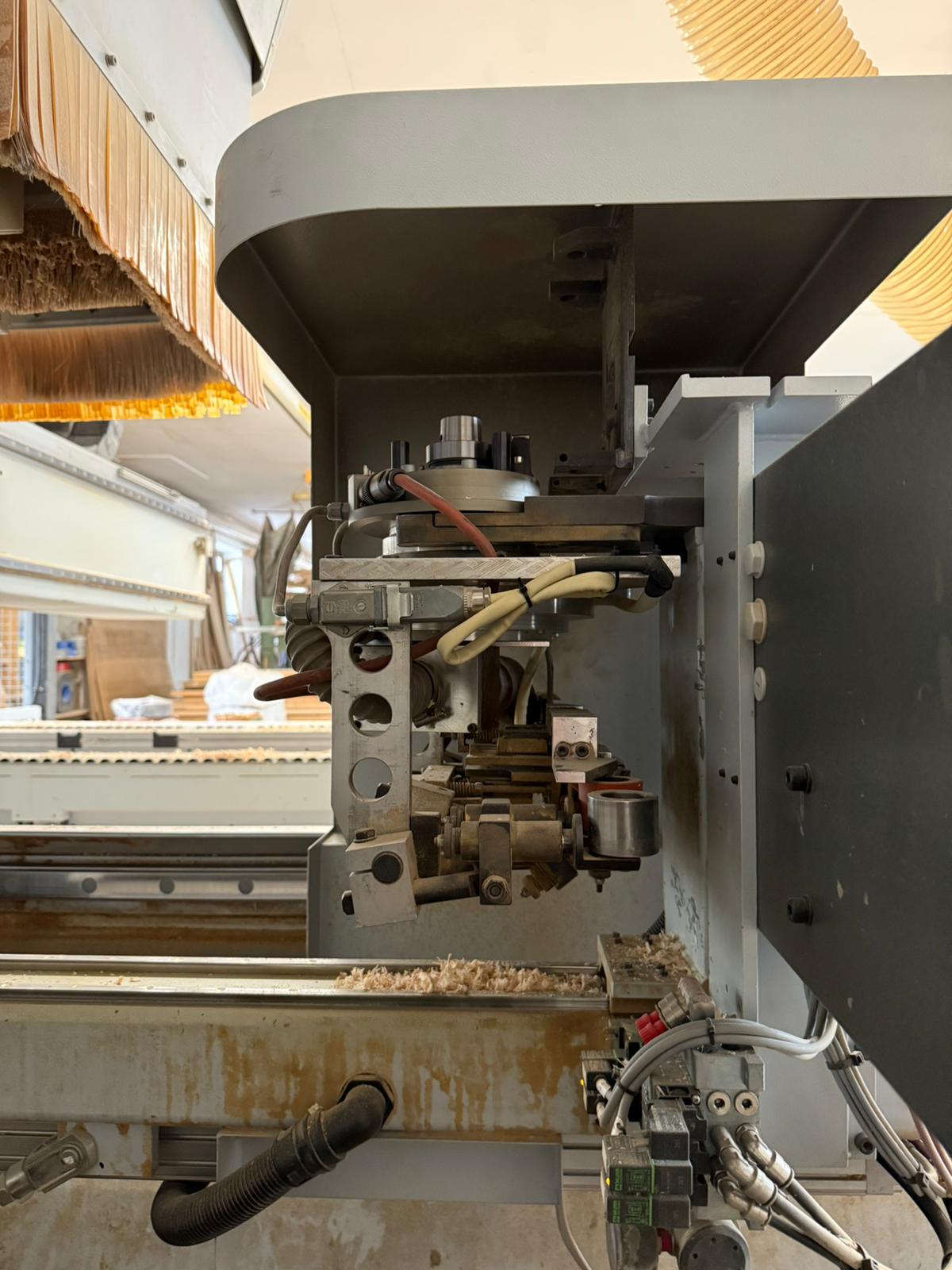

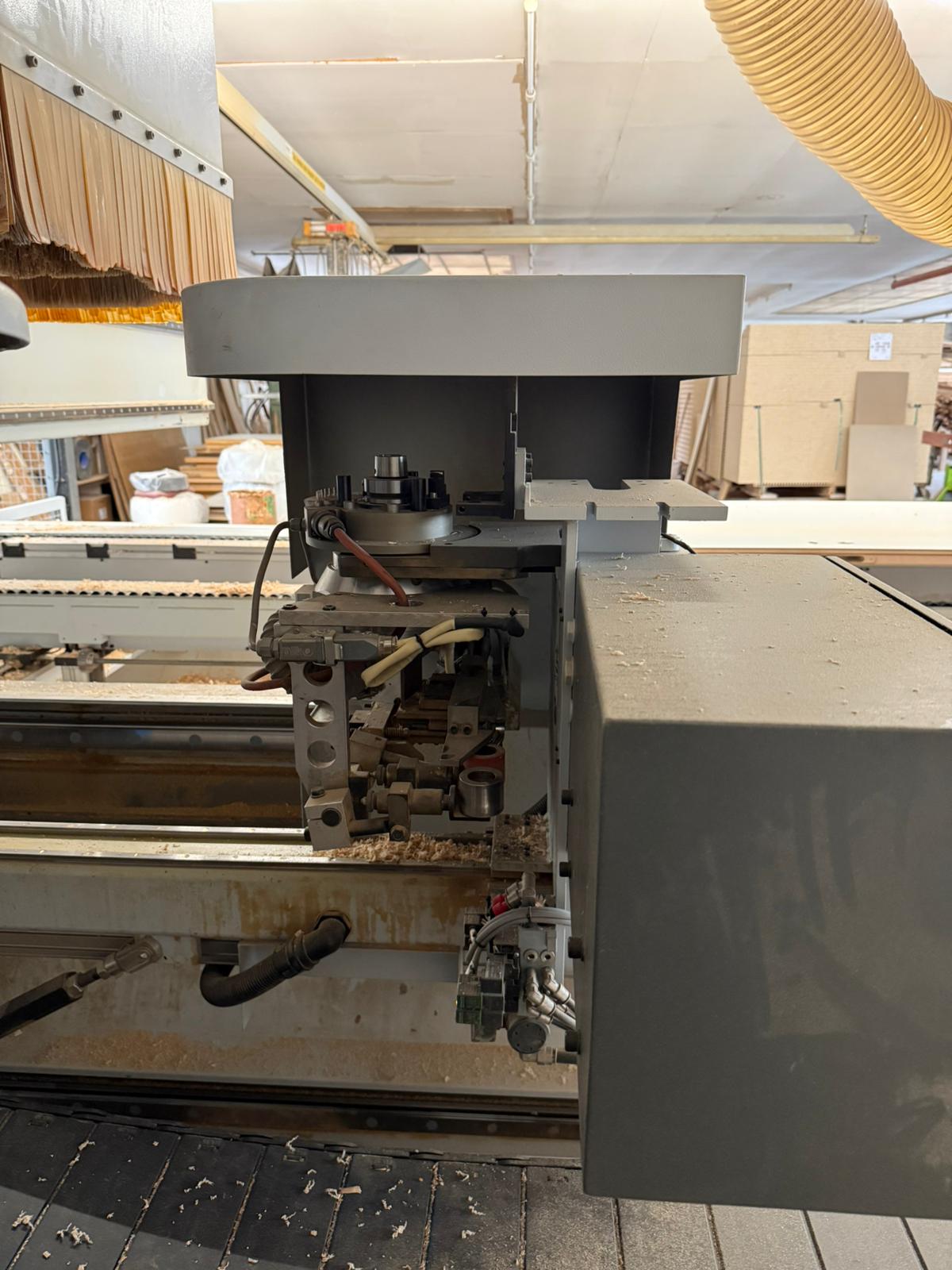

Gluing unit 4 sides 90 mm for main spindle
- For straight edges with direct glue application
- 1 pressure roller for pre-pressing, 1 pneumatic post-pressing roller, freely programmable
- Inner radius min. R=40 at 90 degree corner
- Outer radius according to flexibility of edge material
- Edge height: max. 90 mm
- Edge thickness veneer: 0.4 - 1 mm
Edge hold-down device manually adjustable

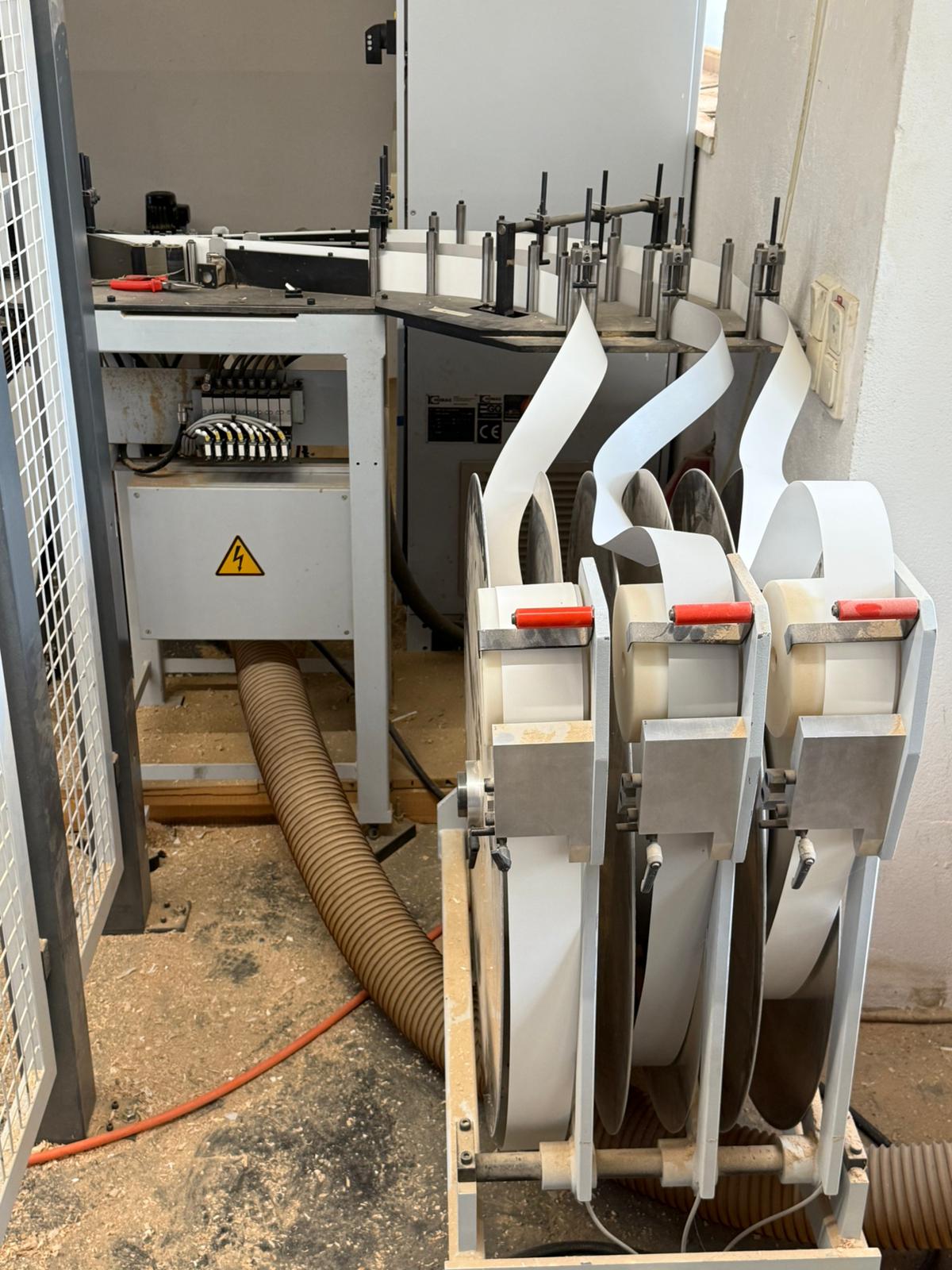

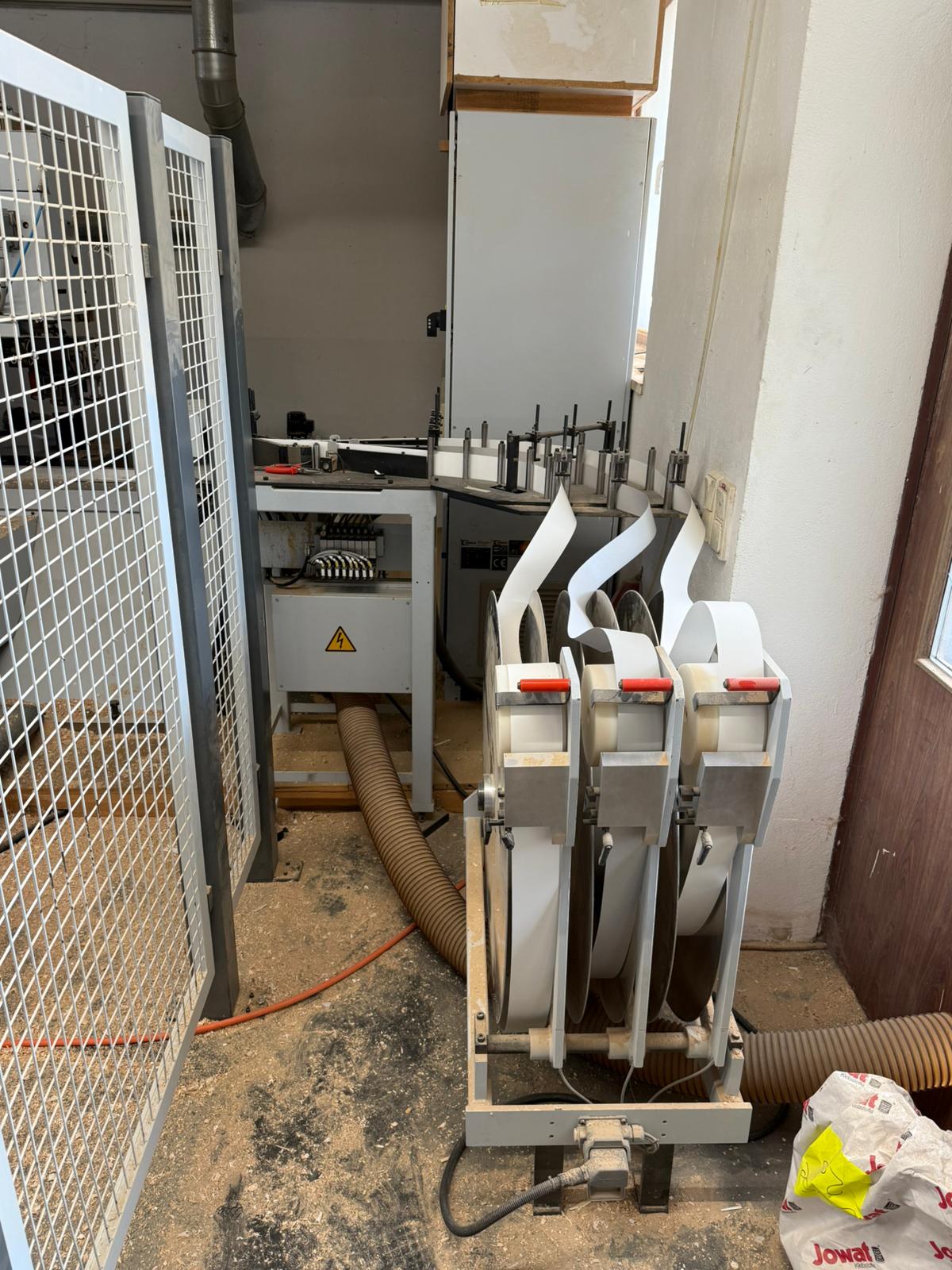

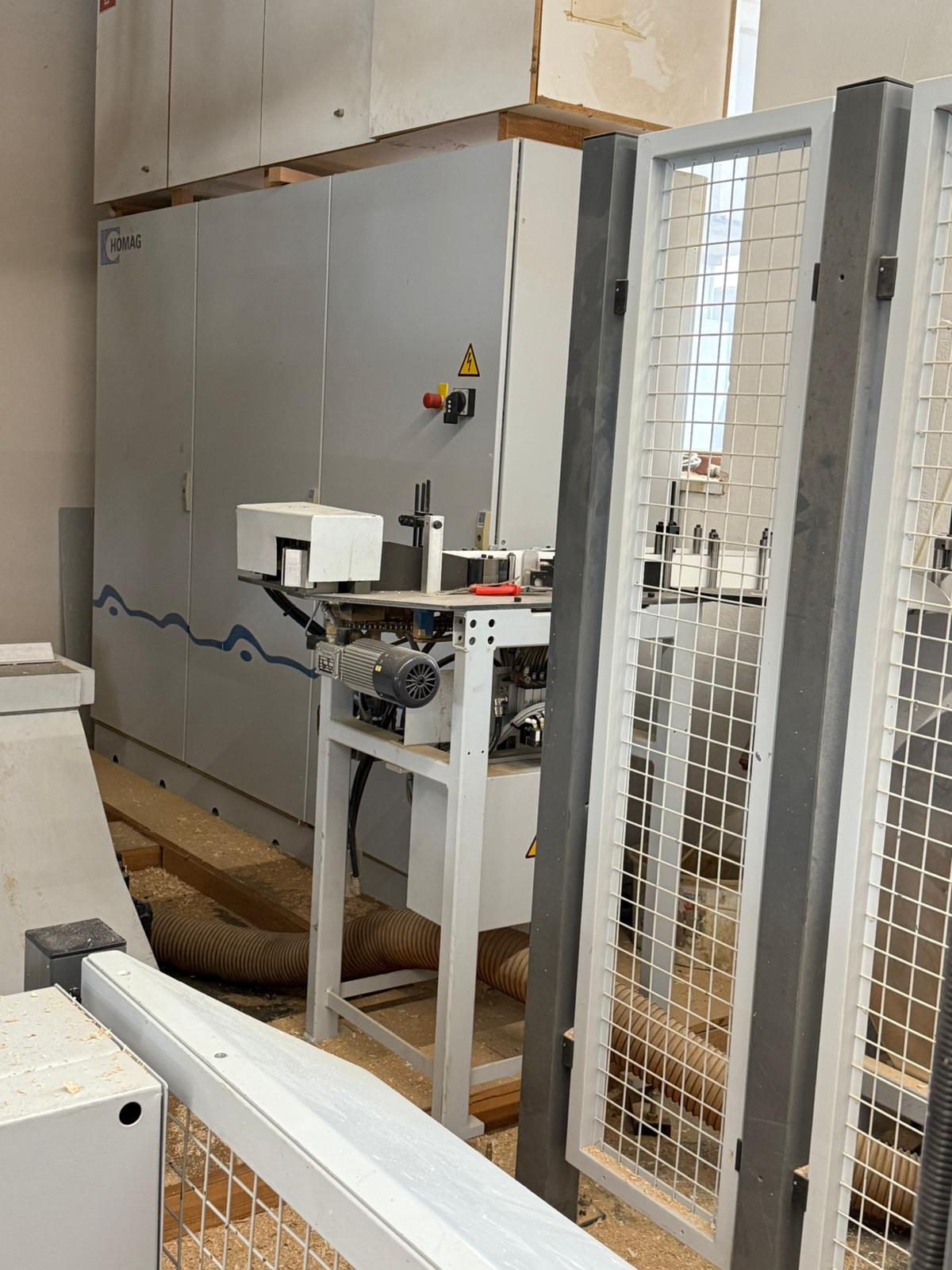

External pre-chopping station and 3-stage roller, automatic.
- Roller turntable is mounted on the operator side.
- Roller diameter: 800 mm.
- Edge length: min. 350 mm.
- Edge height: max. 90 mm.
- Residual edge length monitoring with feed stop at 2400 mm.

Pickup space on X-support for special units.
- Magazine space for an interchangeable special unit, e.g., motor-driven swiveling machining spindle

Folding pressure zone main spindle
- With hot melt adhesive reactivation

Flush milling unit for tool changer
- Simultaneous machining from above and below
- Edge radius: max. R=12 mm
- Scanning from above, below, and from the side to compensate for workpiece and edge tolerances
- Min. outer radius approx. R=5 mm at 90-degree corner
- Min. inner radius approx. R=30 mm at 90-degree corner
- Unlimited swiveling via C-axis, resulting in constant contact pressure perpendicular to the workpiece contour
- Speed: max. 12000 rpm
- Workpiece thickness: max. 50 mm
- Min. workpiece overhang approx. 35 mm
- With narrow feeler shoes

WPL knife head
- Run-out angle 5 degrees, diameter 70 mm

Ethernet network connection



Note:
The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding.
