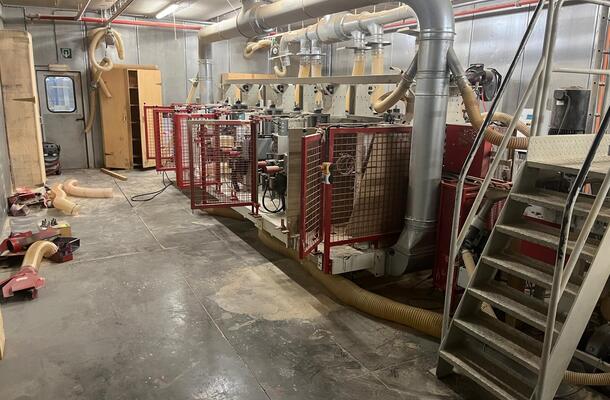

5 shafts (bottom, right, left, top, bottom)
Air speed 30 - 32 m³ / MIN
Air requirement per spindle 28 - 32 m³ / MIN
Total air requirement 8400 - 9600 m³ / H

cutting length 3100 mm
with croring saw

21 horizontal drills
8 dowel driving tools
1 glue pump
approx. 950 mm working width

Machining area 3000 x 1300 x 80 mm
Milling cutter HSD ISO 30 7,5 kW
Automatic tool changer 9-fold, traveling on the X axis
Drill head 16 spindles: 10 x vertical, 6 x horizontal

- max. panel width 4500 mm
- max. panel length 2200 mm
- max. saw blade projection 127 mm
- main saw 18.5 KW
- scoring saw 2.0 KW
- with lifting table

- Feed infinitely variable 10 - 40 m/min
- Workpiece protrusion 40 mm
- Workpiece thickness 8 - 60 mm
- Working height to top edge 950 mm
- Working width double-sided min. 240 - 270 mm
- Working width double-sided max. 2500 mm

- with joint milling units
- with copy milling units (4 motors)
- with 2 grooving units (1 of which with automatic adjustment option)
- with workpiece return
Preis: 42.000,00 EUR + MwSt

- Year of manufacture 2020
- Milling spindle 2x3.5 kW
- upper and lower drilling heads
- Grooving saw
- Barcode reader

- Edge thickness up to 15 mm
- Use of EVA and PUR glue
- with joint milling
- with “Round SK” rounding unit
- with workpiece return

Workpiece dimensions
Length: 250 - 2500 mm
Width: 130 - 700 mm
Thickness: 16 - 19 mm

Year 2022
5-axis main spindle 12 kW
Drilling head with 12 vertical drilling spindles
17-way linear changer
18-way disc changer
Label printer

- X = 2 x 2.400
- Y = 1.800 mm
- Hauptspindel 12 kW
- 18-fach Werkzeugwechsler
- Verleimaggregat mit 6-fachem Coil-Magazin

Spray machine for automated painting of furniture parts, doors, stairs and interior fittings with water- or solvent-based paints.

- 4 axes
- with FLEX 5+ unit
- 36 vertical boring spindles
- 6 horizontal boring spindles
- grooving saw
- WoodWOP 7

- Automatic feeding table
- KFA milling unit
- Workpiece returning system

- new machine -
Double-sided cross-cut saw for cutting strips, profile strips and door frames on both sides

- Feeding table
- Gluing with PUR or LASER
- KFA unit

- with infeeding table for exact measurement
- with KFA-unit
- with grooving unit

Arbeitsbreite: 1300 mm
Anlagengeschwindigkeit: 15 - 45 m/min
Plattendurchlauf: zentrisch

Consisting of:
- Loading station BIESSE RBO
- Double-sided IMA COMBIMA for first pass
- Turning device
- Double-sided IMA COMBIMA for second pass

consisting of:
- Double sided egde banding and format processing machine KF 20/19/QA/35
- Turning device lengthwise - crosswise TD 31/30/12
- Roboter unloading station

Complete production factory for:
Sawmill, 3-layer Parquet,
Glued wood panel, Doors and Windows

Consisting of:
Double-sided feeding
Double-sided edge processing machine for longitudinal processing
Rotation station from longitudinal to transverse orientation
Double-sided edge processing machine for transverse processing

IMA Combima machine I
Turning device
IMA Combima machine II

- Roller conveyors
- chain transports
- webbing systems
- link belt conveyors
- turning stations
- carcass erectors
- carcass turners
- etc ...

Example:
- useful working width: about 900 mm
- lamination: aluminum foil bottom and top


Individual compilation, "tailor made" for your Company and your products on request!

- for panel workpieces up to 1350 mm width
- top/bottom cross running cleaning brushes
- usind special fluid for fine dust
