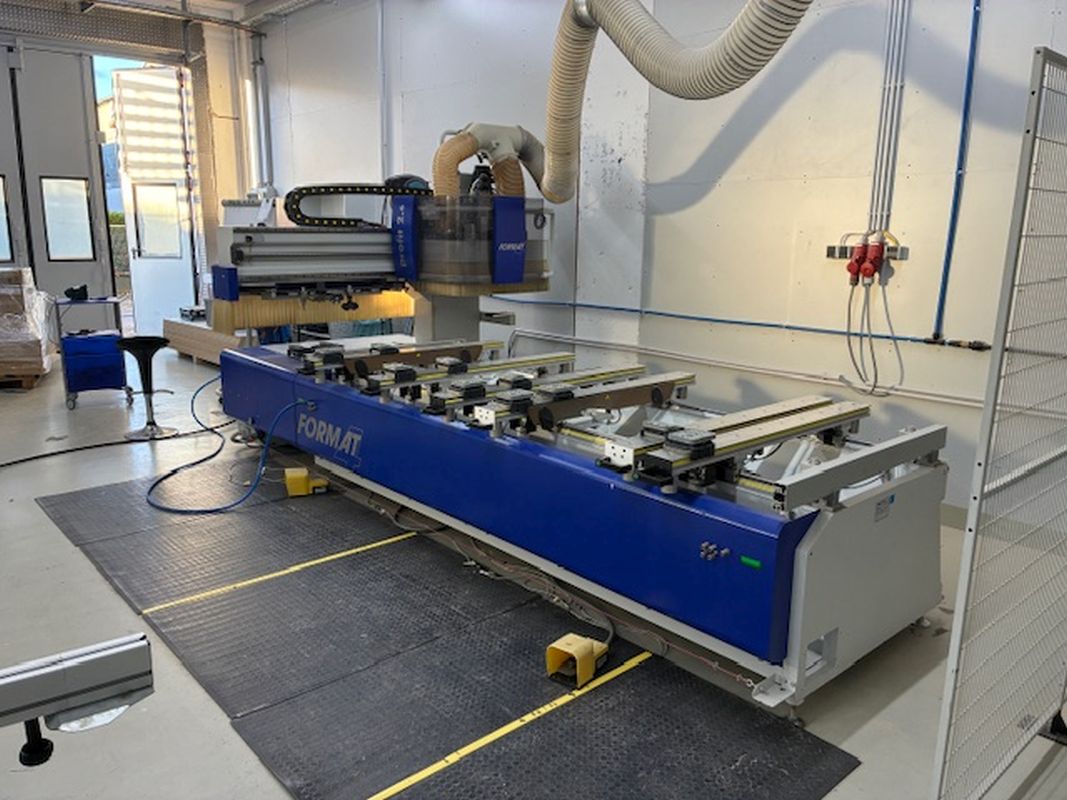

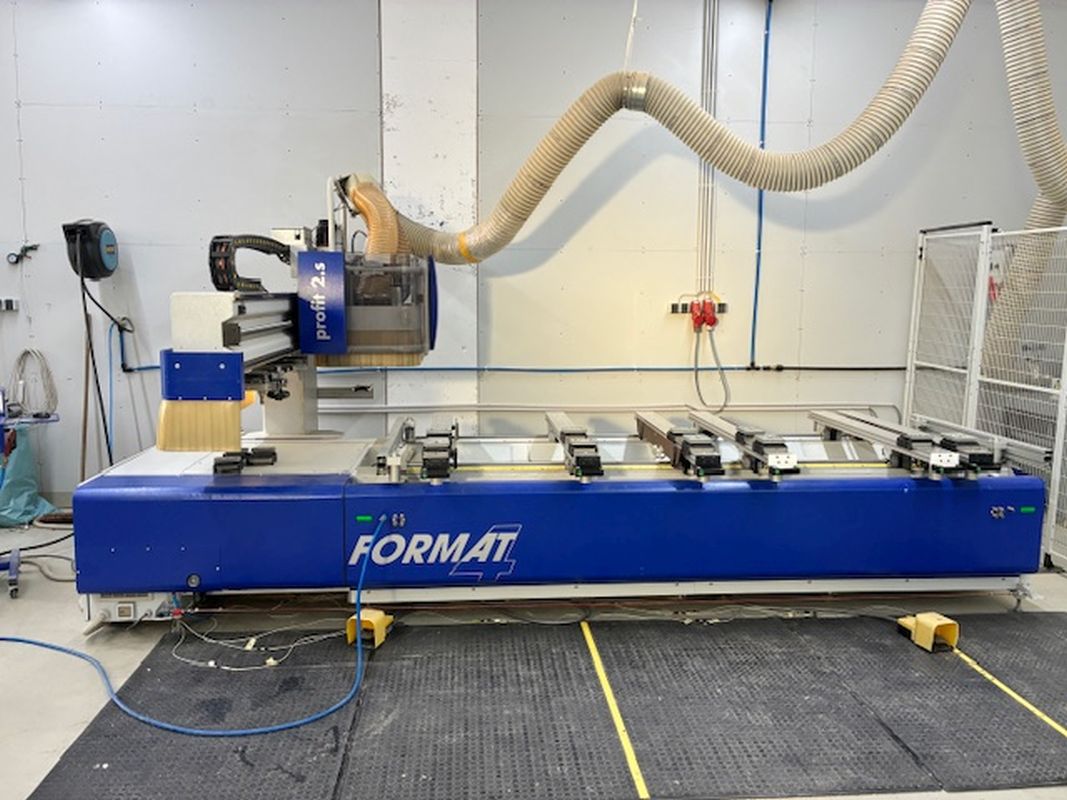

CNC machining center with extraction system

CNC machining center with extraction system
Brand: Felder Format4
Type: Profit 2.s
Year of manufacture: 2008


Technical data
Working area
- X = 3530 mm
- Y = 1700 mm
- Z = 250 mm

Speed
- X = 60 m/min
- Y = 60 m/min
- Z = 15 m/min

Drill head
- Vertical drill spindles: 12
- Horizontal drill spindles: 6
- Variable speed: 6000 rpm

Milling motor
- HSK F63: 9.2 kW
- Variable speed: 24000 rpm

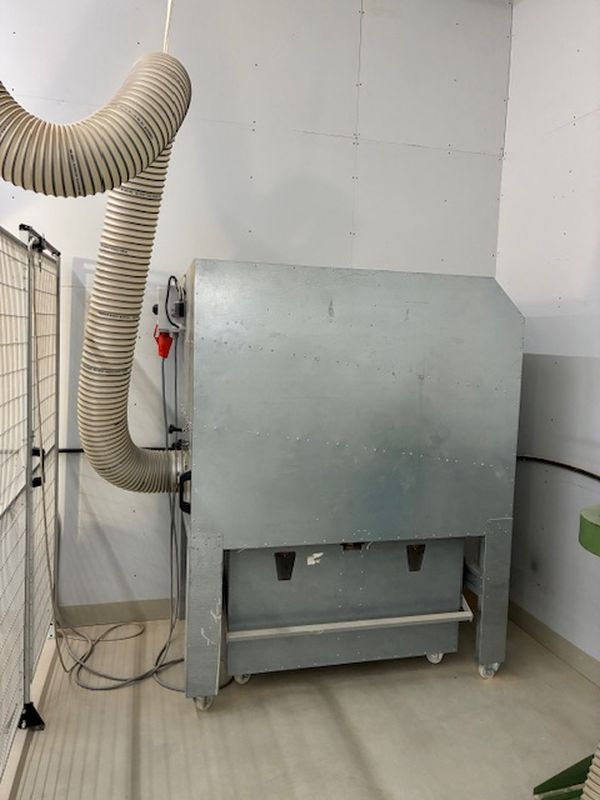

Extraction system
Brand: Felder
Type: RL200
Year of manufacture: 2008

Technical data
- Motor power: 4 kW
- Max. volume: 4000 m3/h
- Nominal volume flow (20 m/s): 2300 m3/h
- Negative pressure: 2400 Pa
- Sound pressure: 70 dbA


Note:
The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding.
