Single-sided edge banding machine with Workpiece return
Brand: Brandt
Type: KDF 991
Year of manufacture: 2008

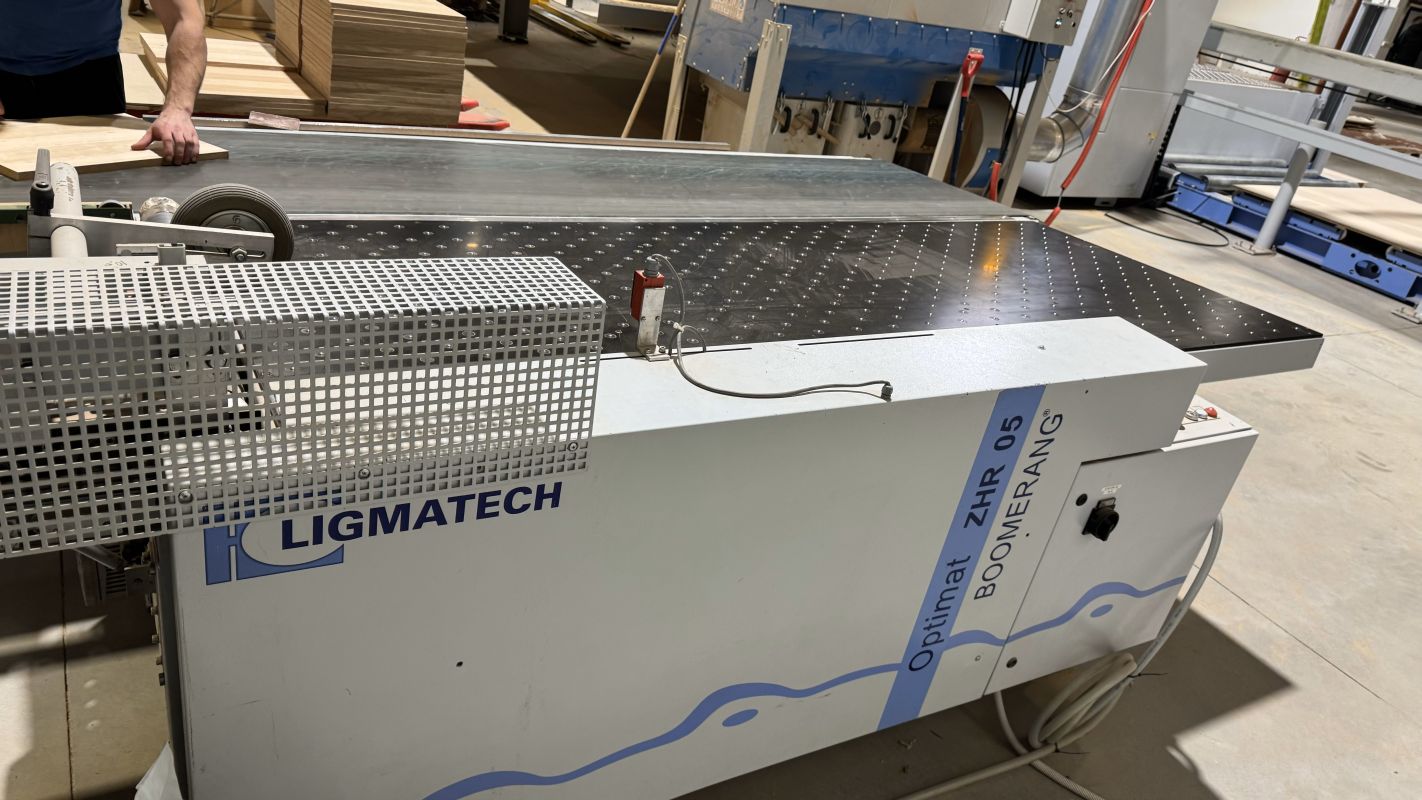

Workpiece return
Brand Ligmatech
Type: ZHR 05 Boomerang
Year of manufacture: 2007
Technical data
- right-sided machine
- machine length: 8,260 mm
- Ligmatech ZHR 05 length: 10. 460 mm
- Edge thickness max: 20 mm
- Panel thickness: 8-60 mm
- Thickness of coiled edge max: 3 mm
- Workpiece width min: 60 mm
- Feed speed max: 20 m/min
- Infinitely variable feed: material pressure zone servo motor adjustable
- Electric motor height adjustment
- Infeed stop: servo motor adjustable
- Infeed stop for thin elements
- Granulate glue system: Glue pot via feed chain
- BRANDT glue system QUICKMELT QA 45
- Suitable for PUR glue
- Magazine for single strips

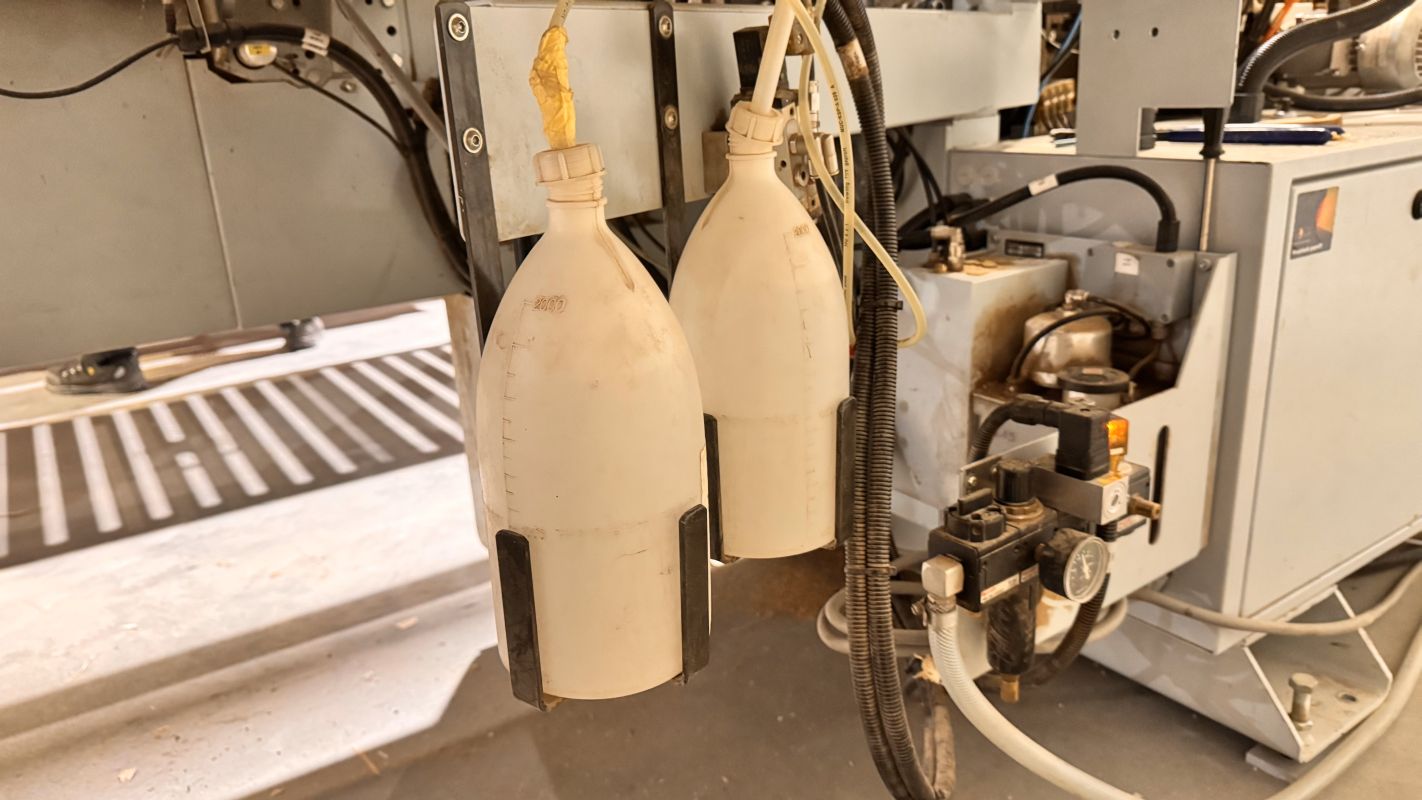

- Spraying device, front, cleaning at rear
- Pre-milling unit
- Pre-heating zone
- Trimming saw: 2 motors pneumatically adjustable
- Coarse trimming: Top + bottom manually adjustable
- Fine trimming trimming unit: 2 motors servo motor adjustable R2
- Corner rounding unit: 4 motors manually adjustable
- Grooving trimming unit: manually adjustable with tilt function
- Radius scraper blades: R2 pneumatically adjustable / second set for R1 included
- Flat scraper unit
- Glue joint scraper
- Cleaning fluid spraying in the back
- Buffing unit
- Solid wood edge sanding unit
- Conformity marking: Including complete documentation and CE
Note:
The technical data and descriptions are transcribed from the original order confirmation. The information is for reference only and is not legally binding.
