for corner notching
in off-set design

for boring
and routing
with two tool interfaces
angle 90°

with oscillating cutter head

for boring,
routing, and sawing
With adjustable angle 0 – 100°

for boring and routing
With four tool interfaces
2x boring / 2x routing
angle 90°

for boring, routing,
and sawing
With two tool interfaces,
angle 90°

for boring,
routing, and sawing
With one tool interface,
angle 90°

- More stability thanks to the lower brush position
- 600mm long brushes with 270mm large diameter for structuring

The best solution for grinding individual parts such as for window profiles or strips.

Antriebsmotor: 7,5 kW
Saugstutzen Ø 300mm
Volumenstrom: 5950 m³/h
Abmessungen (LxBxH) 3550 x 1580 x 2570mm

The compact sanding machine for sanding doors and windows.

Variant with motorized filter cleaning.
No compressed air connection necessary.

Drive motor: 4 kW, 400 V, 50 Hz, 3 Phases
Filter surface: 14,5 m²
Filter cleaning: pneumatical (manual release)
Air consumption: approx. 3,5 l at 8 bar
Sound pressure level: 75 dB (A)

max. cutting length: 3200 mm
max. cutting height: 1900 mm
highest horizontal cut: 1700 mm
engine power: 5 hp (3.7 kW)

Made for Batch1. Different length and width in the mix !

For contoured, concave, convex and straight workpiece edges, from 10-60 mm thickness and 1-3 mm edge thickness.

- For corner rounder and straight corners
- Standard cutters 15° R2 mm or R3 mm
- Movable reference with mechanical digital readout

with:
- Tiltable trimming unit ( with 1 high frequency motor HP 0.75 (kw0,55)
- 1 cutter Head with 2 knives 1 straight 15 degrees, the other 2 mms radius

- 1 glue spreading roller 60 mm high;
- Guillotine to cut bands up to 3 mm thickness;
- Plastic cups to raise the piece above the table

- 2 high frequency motors HP.0,75 (Kw 0.55) each. 12000 RPM, in vertical opposite position with inverter
- 2 cutter heads with cutters one knife straight 15° the other radius 3mm

- Automatical end trimming
- Edge banding up to 45 °
- Workpiece thickness: 10-60 mm

Drive motor: 3 kW
Nominal volume flow: 1832 m³/h
Connection diameter: 180 mm
Filter surface: 13,5 m²
Filter cleaning: motorical (no compressed air connection needed)

Drive motor: 3 kW
Nominal volume flow: 1832 m³/h
Connection diameter: 180 mm
Filter surface: 13,5 m²

- one boring head 35 spindles / 32 mm grid
- pneumatic cylinder for horizontal/vertical positioning of the boring group

- Digital display
- Swiveling drill bar
- Drilling speed and depth adjustable
- Reliable dimensional reference between horizontal and vertical holes

- 1 drilling unit 21 spindles / 32 mm spacing
- Drilling unit swivable 45 degree and any intermediate angles
- Front/top caliper to obtain the same drilling measure between horizontal and vertical position

- Panel processing with a shaft á 7 saw blades
- No limits for panel length
- available in combination with the Vitap Acoustic

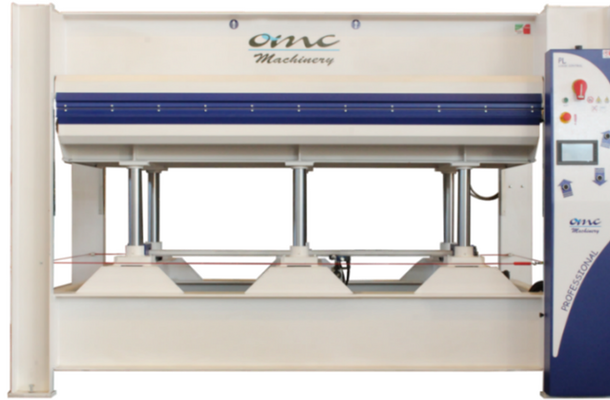

Press are: 3000x1300 mm
Amount cylinders: 6
Daylight: 400 mm
Total pressure: 90t

Press are: 2500x1300 mm
Amount cylinders: 6
Daylight: 400 mm
Total pressure: 90t

- Working width 600 mm
- Display for height-adjustment
