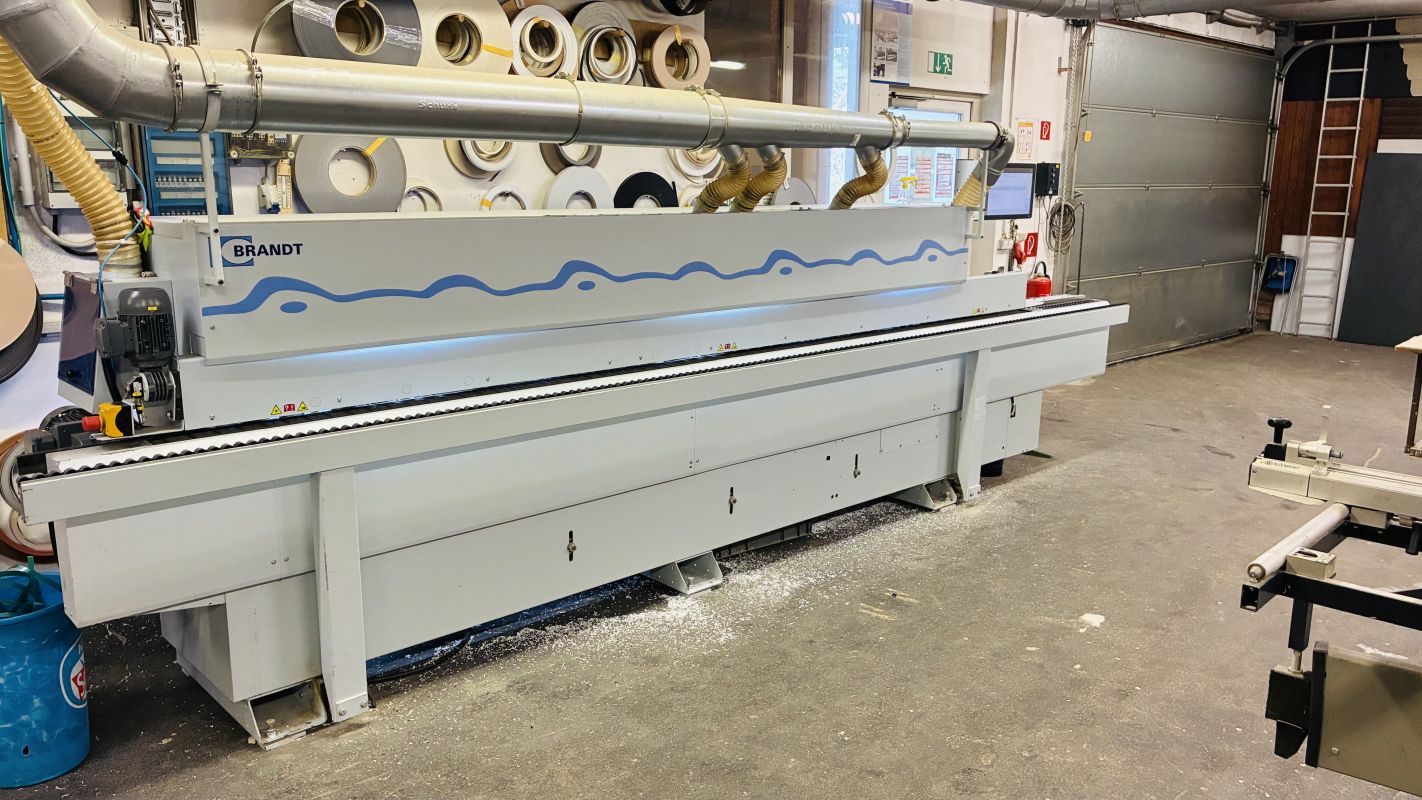

edge bander

edge bander
Make: Brandt
Type: KDF 440 C,
Year of manufacture 2015


Single-sided edge bander for processing
straight workpiece edges and for gluing
and refinishing various edge materials
in longitudinal and cross-feed.

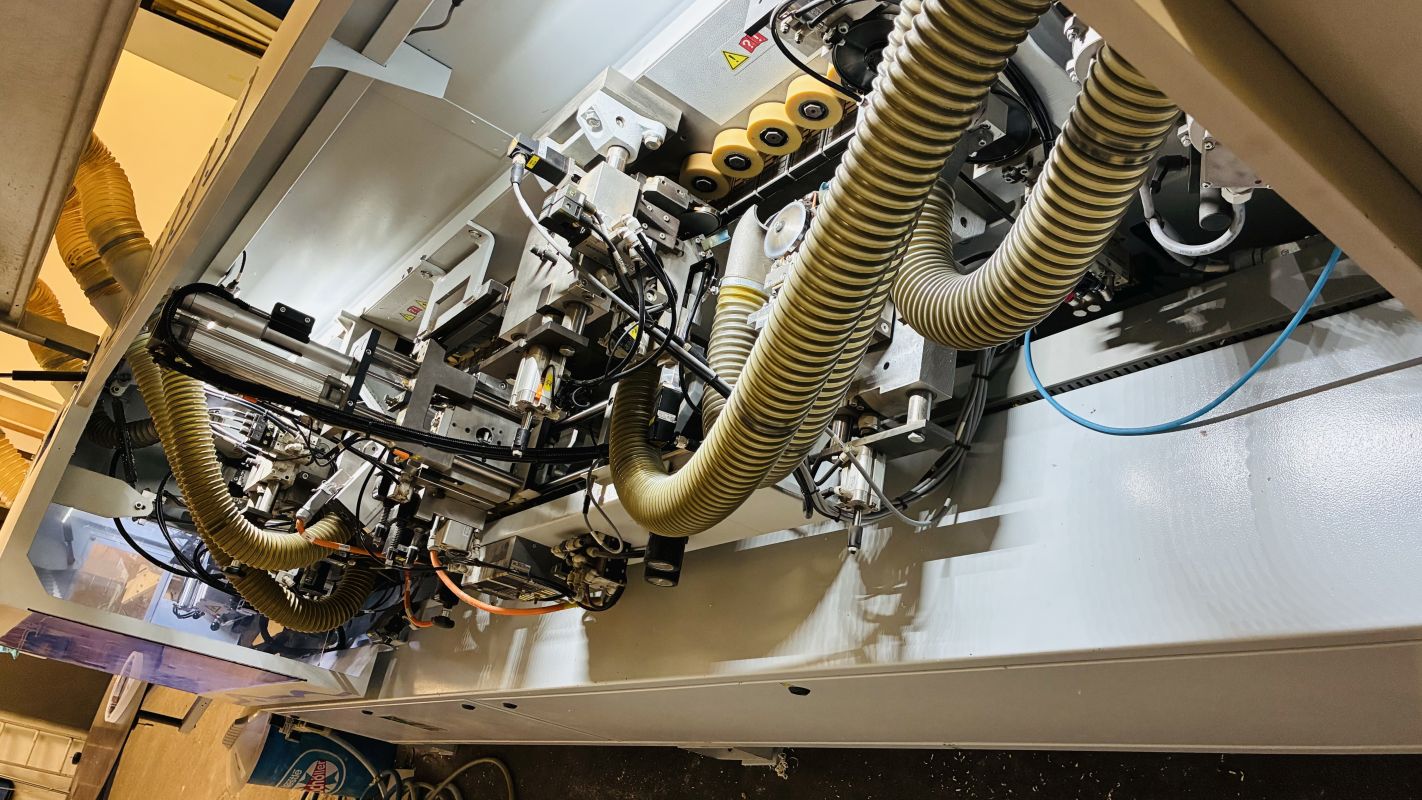

WORKING UNITS:
- Jointing unit, 2 x 2.2 kW, 200 Hz
- Gluing unit, A8
- end trimming unit, bevel/straight, 2 x 0.18 kW
  Pneumatic adjustment for trimming, bevel/straight
-Multi-stage trimming unit MS 40
-Contour  trimming unit, 1 x 0.35 kW, WD 60
  Pneumatic. 2-point radius / chamfer adjustment
- MZ 40 multi scraping unit
- Flat scraper
- Buffing unit

WORKPIECE AND EDGE PARAMETERS:
- Workpiece thickness: 8 - 60 mm
- Edge material roll: 0.4 - 3 mm


Note:
The technical data and descriptions are copies of the order confirmation at the time. Data is for information purposes only and is not binding.
