panel dividing saw with loading storage station

panel dividing saw with surface bearing
Brand: Holzma
Type: Profi HPP400/38/38
Year of construction: 2017

surface bearing
Make: Homag
Type: TFL211/31/08
Year of construction: 2017



Technical data of the HPP400/38/38
Panel dividing saw for tear-free and dimensionally accurate dividing of coated and uncoated panels made of wood-based materials and those that are to be processed like wood-based materials.
Control panel and angle ruler on the right.

- Angular pressure device
- Main motor 18 kW (50 Hz)
- Scoring motor 2.2 kW
- Main saw blade 450 x 4.8 60 mm
- Scoring saw blade 180 x 4.8 - 5.65 x 45 mm
- Cutting length 3800 mm
- Cutting width (program pusher travel) 3700 mm
-Collets 6 pieces
Pitch 75 / 275 / 475 / 1075 / 1525 / 3125 mm

Basic package BR 3/4/5
Optimized panel handling for the operator.

The option includes:
- Machine table set-up
- dustEx. combination nozzles
- One 2-finger collet chuck
Item: 2325 mm

Dynamic package pressure beam BR3/4
Increased performance of the saw through optimized control of the pressure beam

The option includes
- Pressure beam height control
- Weight-optimized pressure beam

Labeling package: Automa. via pressure beam
Holzma patent! Fully automatic labeling system integrated in the pressure beam.

The option includes:
- Label program
- Labeling with part graphics
- Label printer mounted on the pressure beam

Pre-stacking table without alignment (3800x2200) BR3
Includes:
- Combiprofile rails
- Extended and raised side guides
- 2 alignment devices in front of the cutting line

1m extension of the program pusher travel path
Includes:
- Extension of the program slide guide, complete.

Turning device 3200/3800/4300 mm 1.1 TO
For type 300/400/500
Automatic turning device for head cuts
Sequence: Rotation of the positioned package by 90° to the head cut position. After the head cut is completed, the main part is turned back to the starting position.

Panel dimensions:
- Panel format min. : 1600 x 1220 mm
- For cutting length 3800 mm -> 1 collet included!

Collet HPP BR 3 / 4
Item: 175 mm

Lifting element, full package height BR 3 / 4 / 5
for moving over a stacked package.
Includes:
- Lifting element for 1 collet

Saw blade projection 125 mm HPP/L 400
Conversion of the saw carriage to a saw blade projection of 125 mm.

Operator assistance system LED

Online data transfer + USB port

Data connection to storage systems (complex)
Area / stacking / rack storage system

Stacking module Lite
consisting of:
- “Pallet” destacking module
- Stacking module “stacking trolley”

USV device / individual saws

Fully equipped roller rails HPP/L

Label printer type PICA II 108
Thermal / thermal transfer label printing station

Cadmatic configuration: Warehouse controls saw

Teleservicenet via DSL / Lan
Remote diagnosis via router instead of modem for fast, cost-effective and reliable remote service.

Production feedback for PPS systems

Technical data of the TFL211/31/08

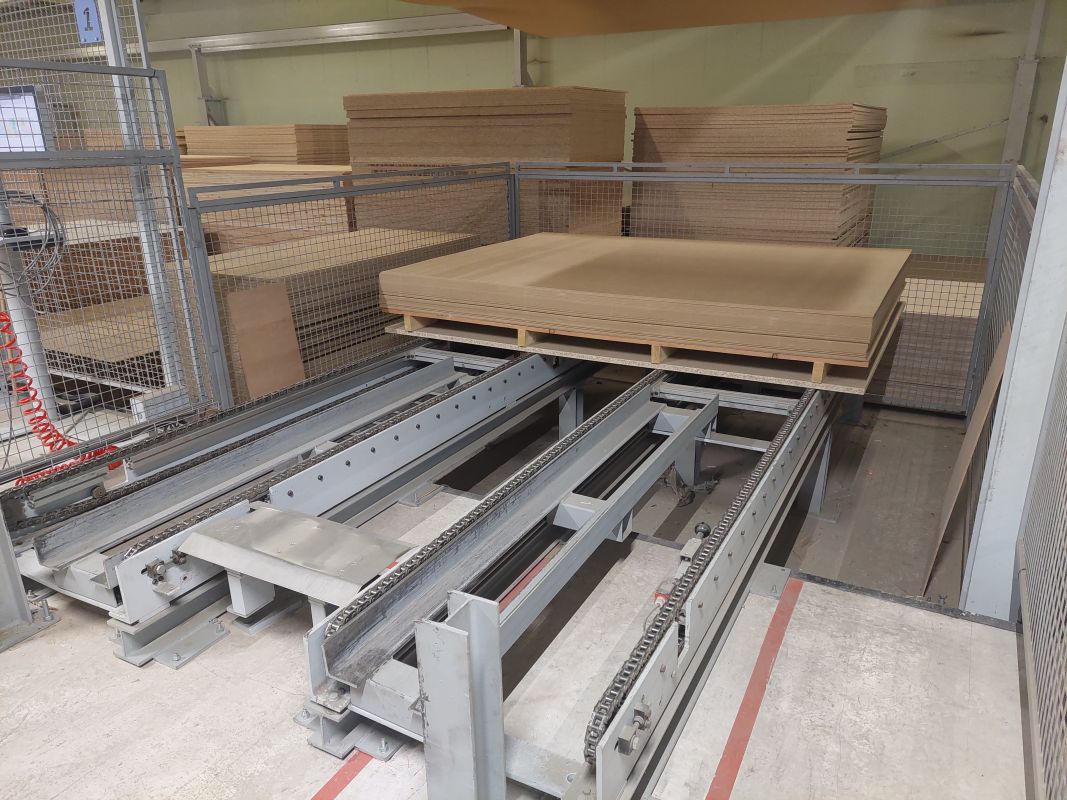

Homag Automation storage system

Dimensions
- Frame length (X): 10000 - 50000 mm
- Span width (Y): 5000 - 12000 mm
(in 100 mm increments)
- Stacking height in the warehouse: max. 2100 mm

Workpiece and stacking parameters
- Workpiece length: 2000 - 4000 mm
- Workpiece widths: 800 - 2200 mm
- Workpiece thicknesses
Coated panels: 9 - 40 mm
Chipboard raw: 12 - 40 mm
MDF uncoated: 16 - 40 mm
- Individual weight: max. 250 kg
-Density
Raw chipboard: >650 kg/m²
Raw MDF boards: >750 kg/m²

3 x widening span TFL211

Special panel features TLF
- Independent control circuit of the vacuum system
- Suction cups acting on the panel corners
- Vacuum lifting suction cups for pre-separation in one corner of the workpiece
- Improved sensor technology

- Raw chipboard, standard E1, thickness >= 6 mm
- MDF boards raw, thickness >= 3 mm

laminate
- non-absorbent
- Workpiece width max. 1300 mm (ST60/ST61)
- Workpiece thickness >= 0.8 mm

Performance package for TFL21X
- max. 25% increase in performance by increasing the accelerations and speeds

Modification TST61 suction traverse
Note
- By adapting the suction technology, it is possible to move so-called perforated plates.
Perforated plates
- Regularly arranged holes in a grid of 25 mm (vertical and horizontal)
- Hole diameter: 4 mm
- Plate thickness: 3 mm
- Coated side Always on top
- Strongly structured back (fabric-like)
- Weight: > 6.3 kg
- Performance-inhibiting
- Format: 2300 x 1600, 2300 x 1100, 2300 x 1600

Stacking height 2500mm TFL211,411,810

Connection to Homag Group machines

Upgrade to Woodstore storage control Profiline

Uninterruptible power supply (UPS)

MMR Professional for single machines



Note:
The technical data and descriptions are a copy of the order confirmation at that time. Data are for information and are not binding.
