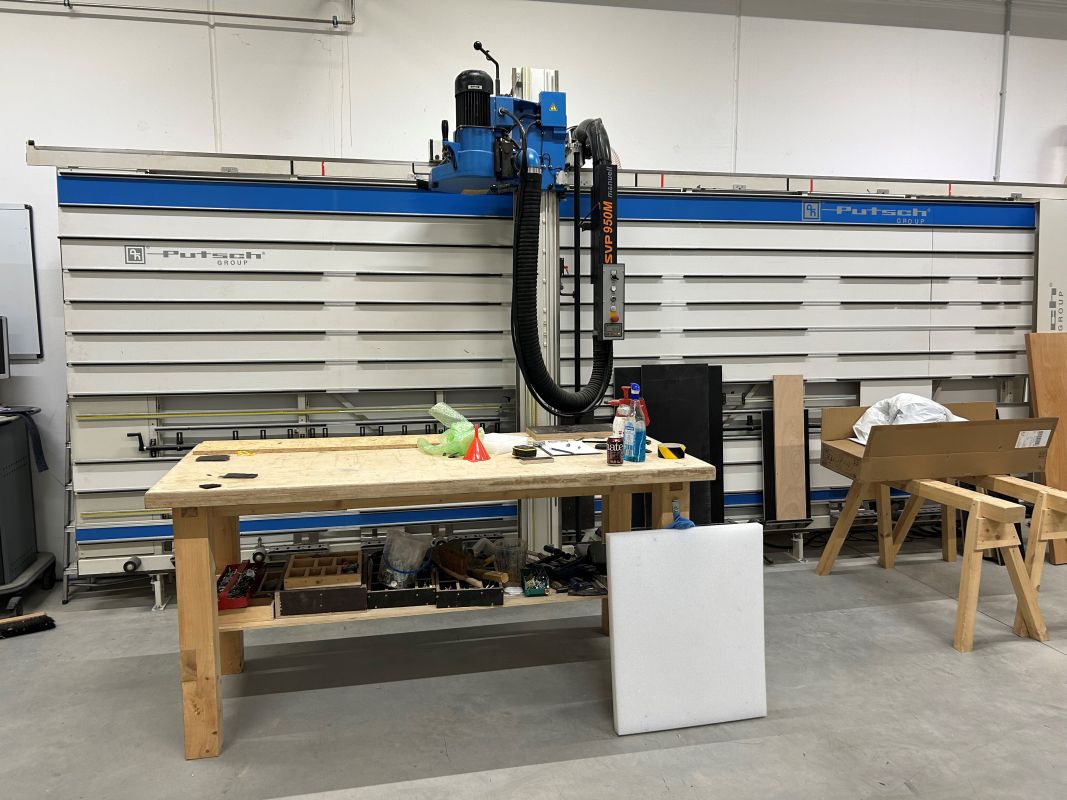

vertical panel saw

vertical panel saw
Brand: Putsch
Type: SVP 950M
year of manufacture: 2011


Technical data:
- max. cut length: 5300 mm
- max. vertical cut : 5200 mm
  (5100 with digit. dimension display for vertical cuts)
- max. cut height: 2200 mm
- highest horizontal cut: 2100 mm
- max. cut depth: 80 mm
- motor power: 7,5 hp (5,6 KW)
- saw blade diameter: 300 mm
- saw blade rotation: 5000 rpm

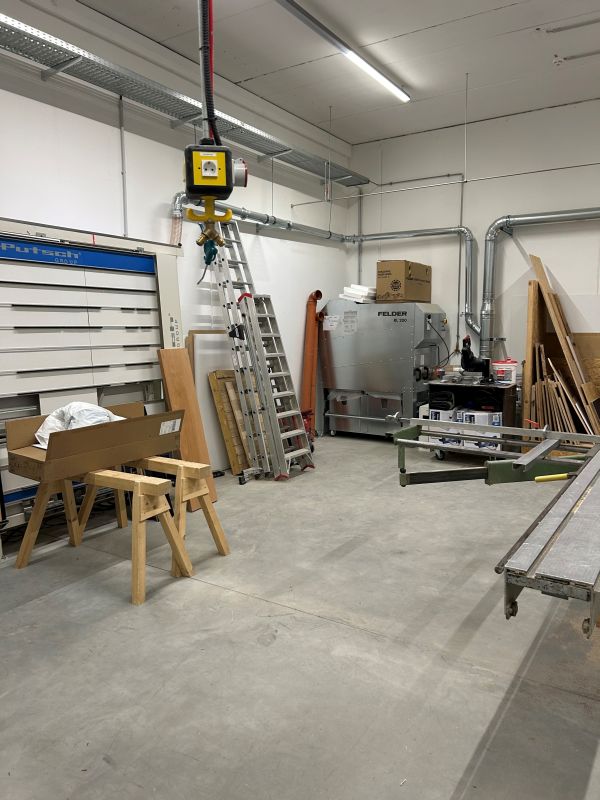

Optionally available with a new Felder RL 200 extraction system from 2024.



Note:
The technical data and descriptions are copies of the order confirmation at the time. Data is for information purposes only and is not binding.
