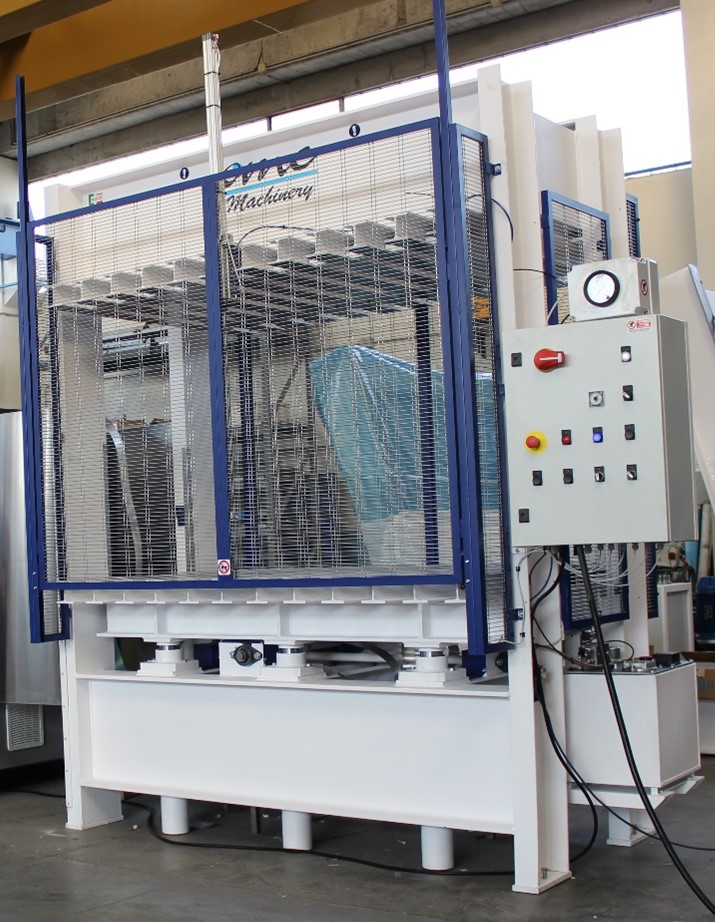

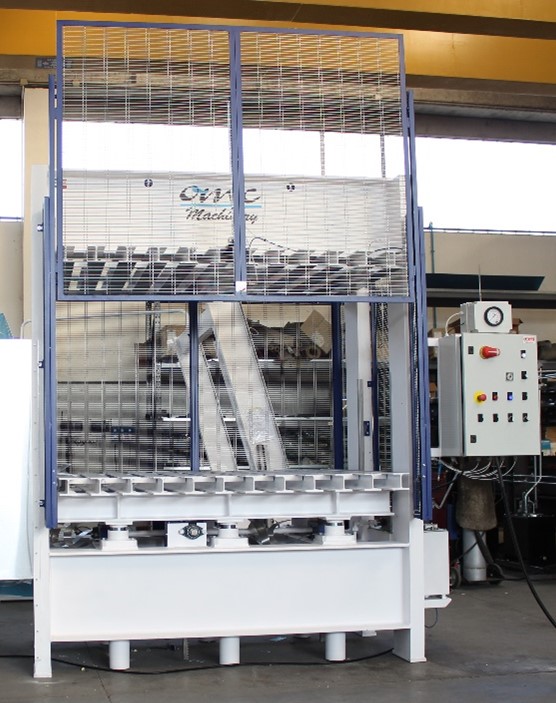

Bending press

Bending press
Brand: OMC
Type: PPC/e
Year of construction: 2022
New machine

Technical data
Plate size: 2000 x 1400 mm
Supports for molds: Included for 2 sections (molds are not included)
Press cylinders: 6 x Ø 85 mm
Stroke: 650 mm
Opening size: 1200 mm
Stroke type: drive plate bottom (from bottom to top)
Press force: 120 tons
Specific pressure: 4.28 kg / cm²
Control panel: basic equipment electrical control module with double button and adjustable pressure gauge with pressure recovery
Automatic opening with timer
Connection: 400 V, 50 Hz, 3 ph
Protection device:
- Emergency call button
- Two-hand operation
- Manually closing guillotine guard at the front
- Metal protective grilles on the sides
- Aluminum foil connected to the generator
CE standard

Press structure
The press structure is made of assembled and welded steel. The structure of both the fixed and moving platen is made of composite and welded steel.
The press is equipped with a rack and pinion guide system to ensure a perfectly parallel movement during the closing/opening of the plates.

Hydraulic system
- The hydraulic system consists of a two-stage power unit with a pump to reduce noise and lubricate the rotating parts.
- Pump for fast closing/opening (high flow rate - low pressure), press pump (low flow rate - high pressure).
- Electric motor
- The hydraulic unit is equipped with the following control/safety valves installed on the tank:
- Maximum pressure valve to prevent excessive pressure in the hydraulic system in the event of an electrical or electronic control fault
- Pressure retention valve (check valve)
- Valve for low drain pressure (pre-drain valve). It prevents dangerous shocks in the system.
- Oil drain magnetic valve

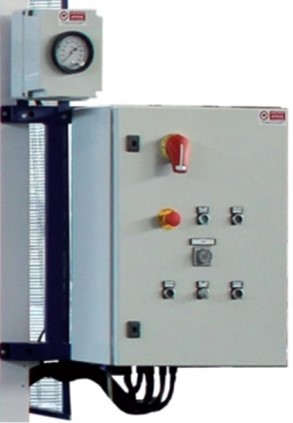

Control panel and electrical system
The main control panel is equipped with switches for controlling the pressing parameters:
- Pressure gauge for setting the working pressure with automatic pressure equalization system
- General on/off switch
- Automatic opening timer with dedicated switch that allows automatic or manual opening of the plate after the work cycle.
