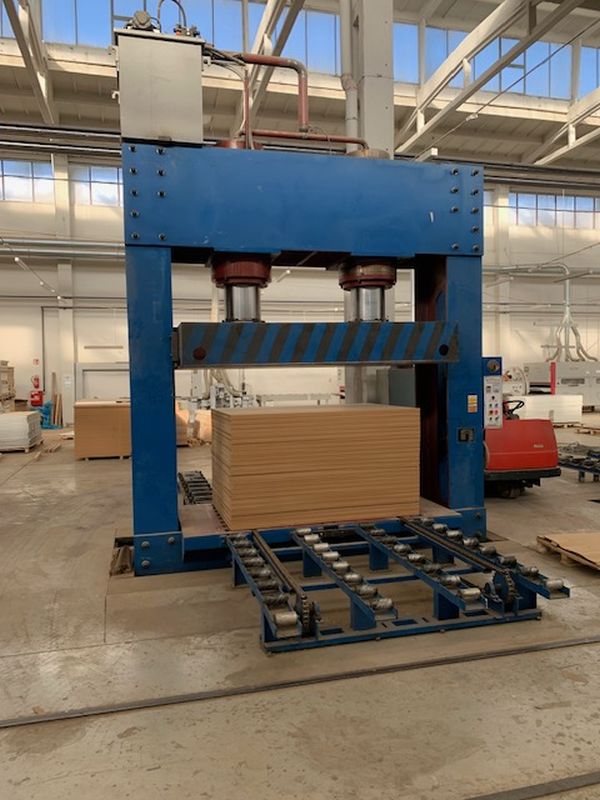

hydraulic carcass press

hydraulic carcass press
Brand: LINYI JIANZHONG WOOD MACIHNERY
Type: JJZ-CP
Year of manufacture: 2019

The JJZ-CP press is suitable for the production of plywood, doors, and MDF panel joints. The glued elements are fed and removed automatically via driven roller conveyors.

technical data
- Max. Pressure 500 t (adjustable)
- Max. Filling height 1300 mm

- Min. filling height 900 mm
- Max. Filling size 1300 x 2500 mm
- Press dimensions 3600 x 1370 x 4500 mm
- Press position approx. 500 mm below floor level
- Feeding table 2000 x 1960 mm
- Pick-up table 2350 x 2500 mm

- Max. Power 13.2 kW
- Weight 12000 kg
- CE marking
- Capacity: 6 batches per hour

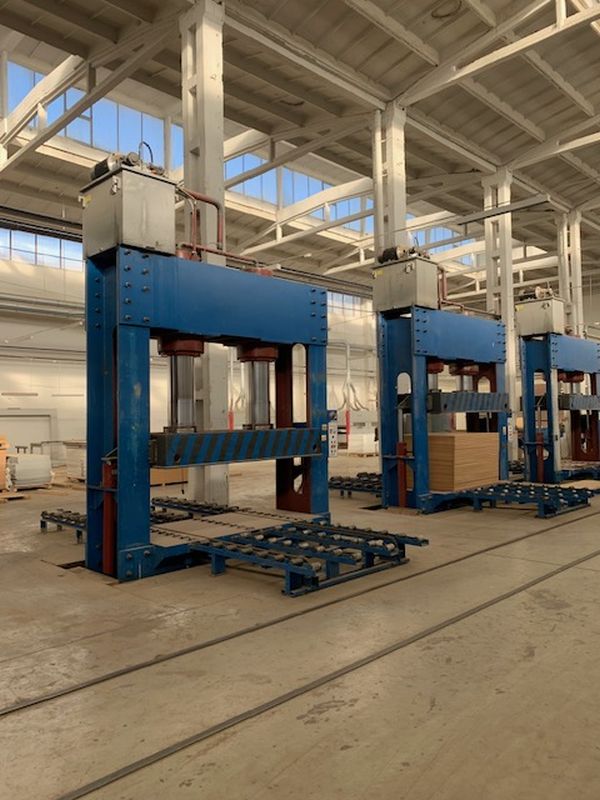

There are 2 carcase presses available for sale.



Note:
The technical data and descriptions are transcribed from the original order confirmation. The information is for reference only and is not legally binding.
