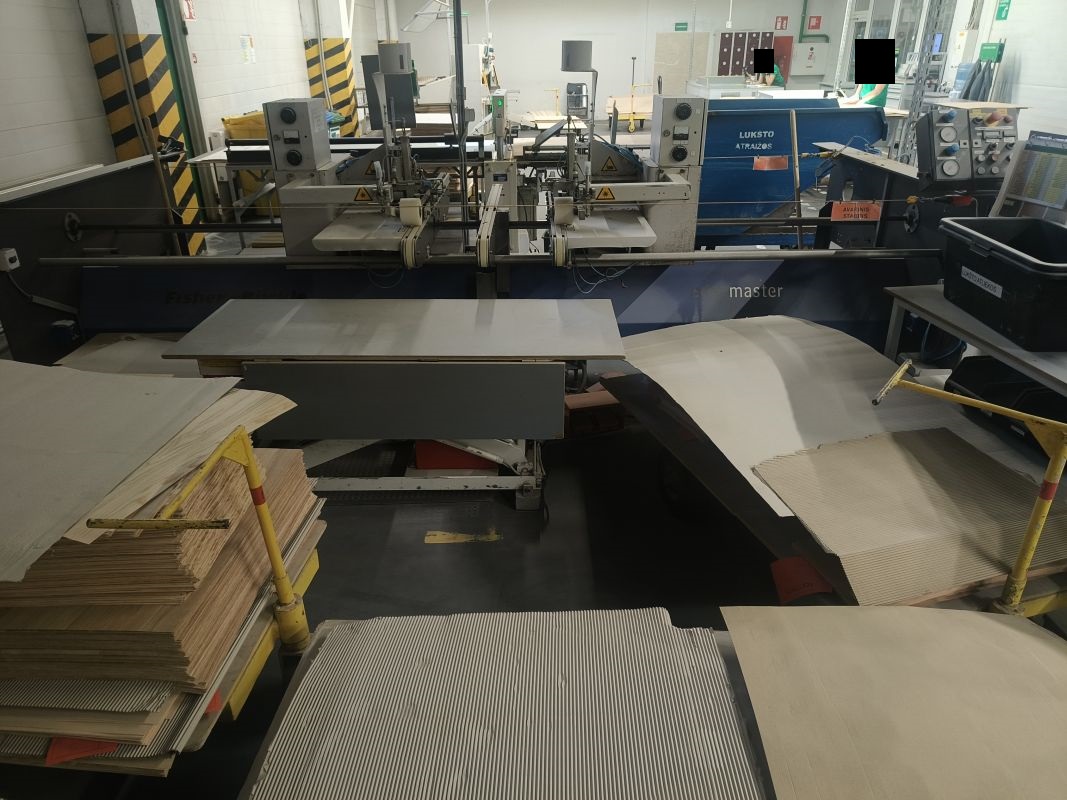

Edge strengthening and trimming device

Edge strengthening and trimming device
Brand: Fisher & Rückle
Type: EMF-28
Year of manufacture: 2009


Edge strengthening and trimming of glue spliced veneer faces in grain or cross grain direction. The ends are automatically reinforced with glue thread and exactly rectangular trimmed on both sides. The Edgemaster eliminates splitting or cracking of the veneer and avoids repair work after further handling of the faces.

Technical data:
Veneer face lengths (grain direction): 400 - 2800 mm
Veneer face widths (cross grain direction): 400 - 4200 mm
Veneer thickness (trimming and reinforceing mode): 0,3 - 1,5 mm
Veneer thickness (reinforcing mode only): 0,3 - 2,0 mm
Trim-off widths (each side): 10 - 350 mm

Features
- Two laser lines indicate the position of the application head for fast repositioning of the veneer and/or application heads
- Motorized displacement of the application heads with digital read out. lt numerically indicates the distance between the heads, enabling quick lengths change over
- Guaranteed parrallel in feed due to positioning rollers
- Continuosly adjustable in feed speed
- Long life, regrindable roller knifes



Note:
The technical data and descriptions are copies of the order confirmation at the time. Data is for information purposes only and is not binding.
