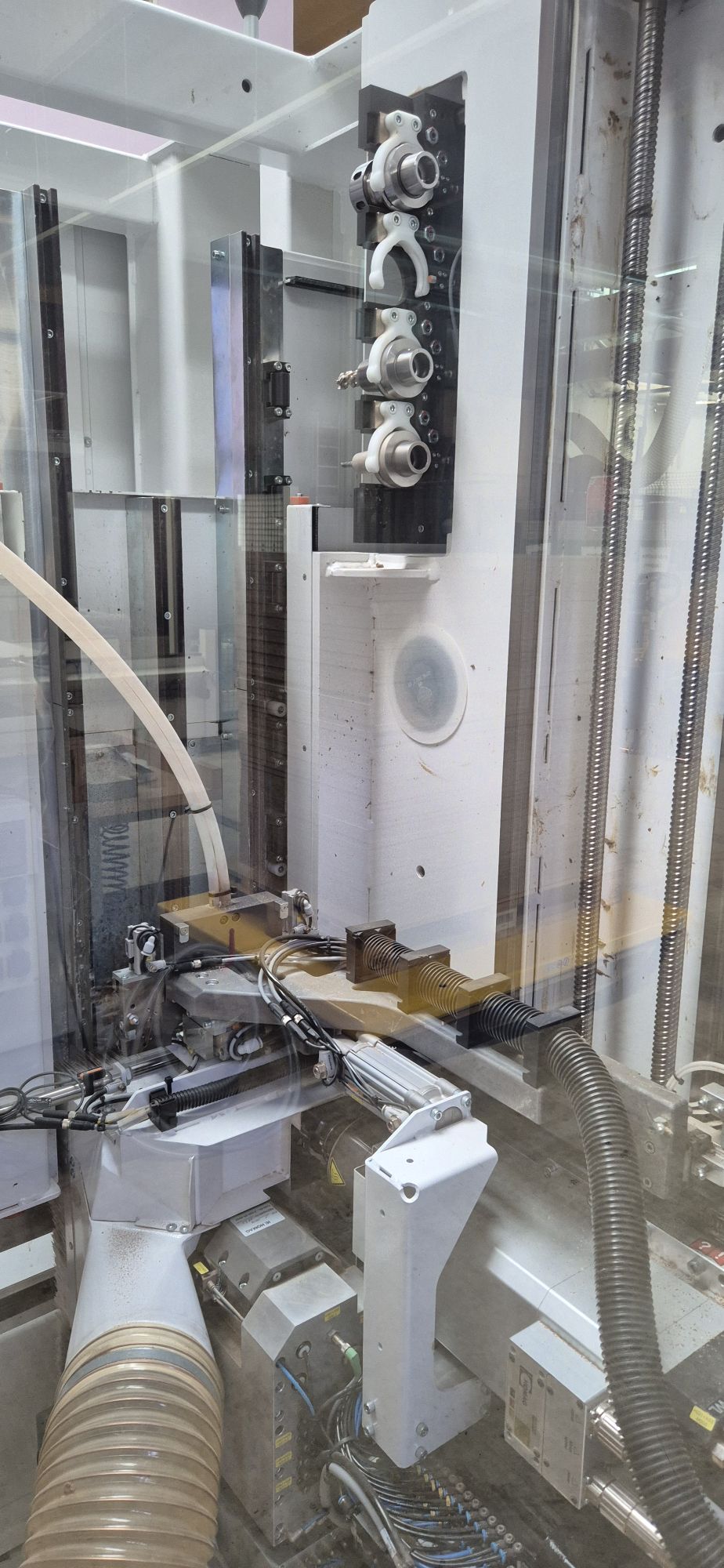

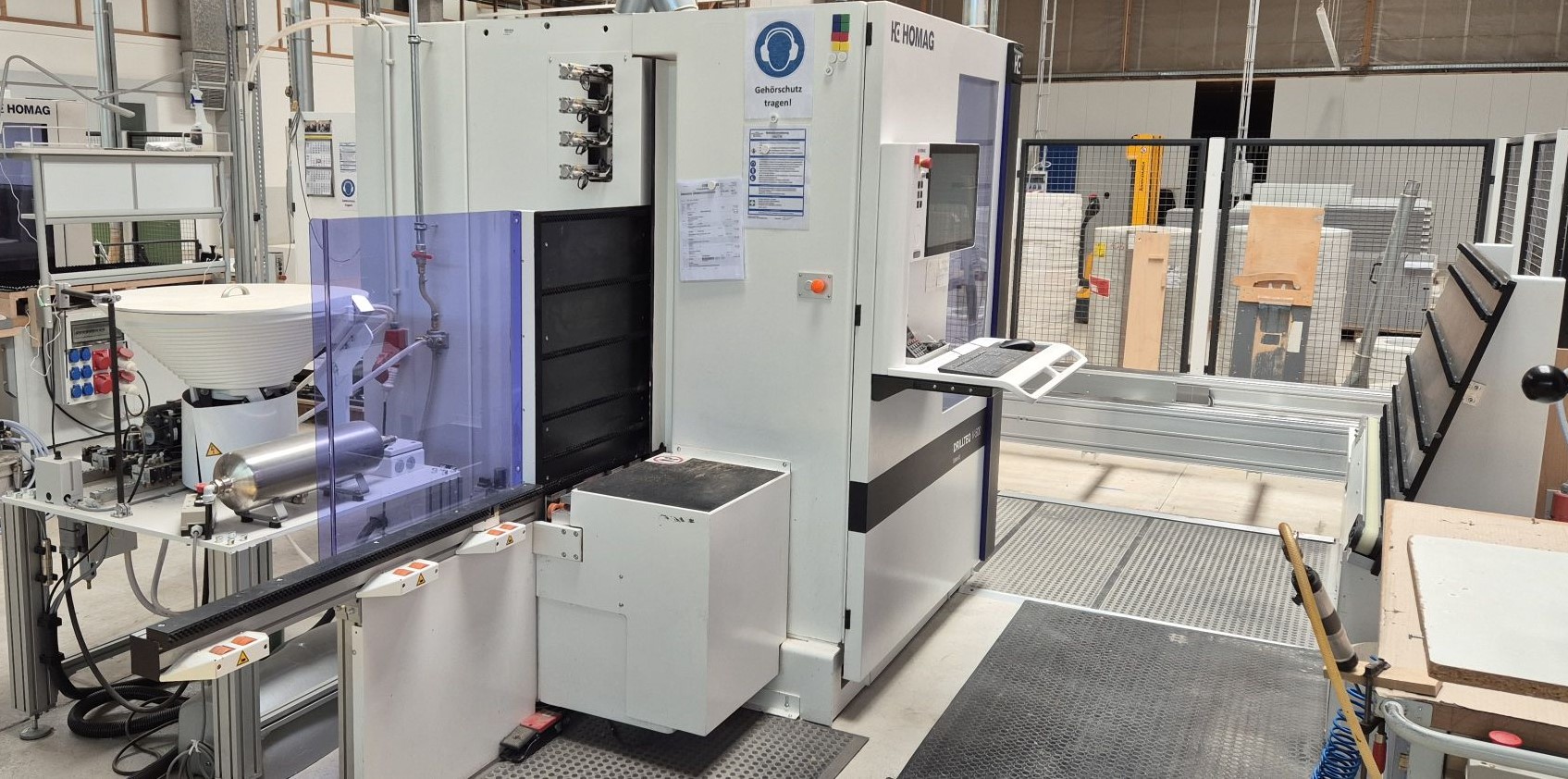

vertical CNC machining centre

BrandHOMAG

typeDRILLTEQ V-500

stateUsed

stock number0401805

year2019

Year 2019
With 2 pieces drilling gear V10/32 mm
2 horizontal drilling gears with 6 spindles in X direction
2 horizontal drilling gears with 2 spindles in Y direction
1 grooving saw 0/90° swivelling

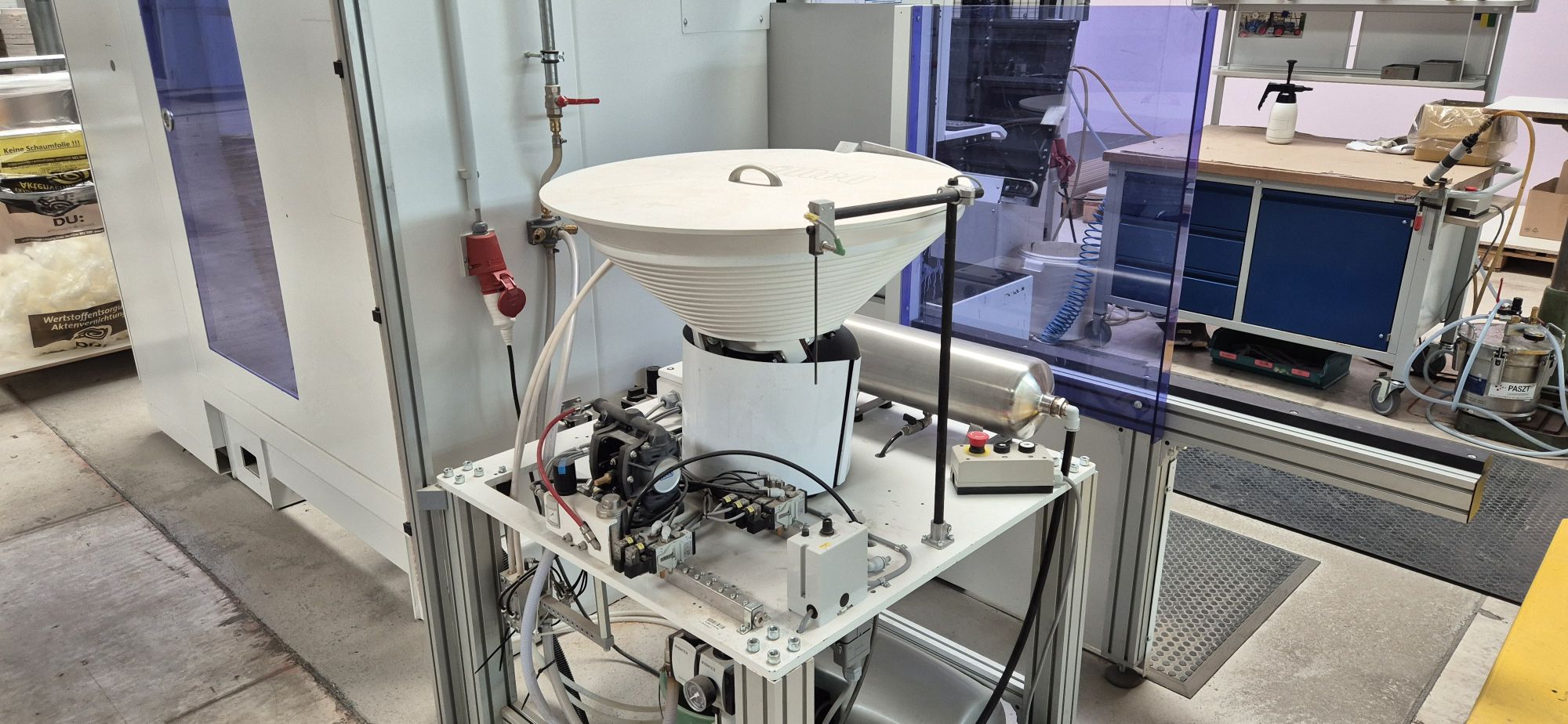

Dowel insertion station consisting of 2 tools (1xleft side, 1xright side)
Milling spindle 10 KW ( HSK 63), with 4-fold tool changer
Workpiece length max. 3050 mm, workpiece width max. 1,250 mm

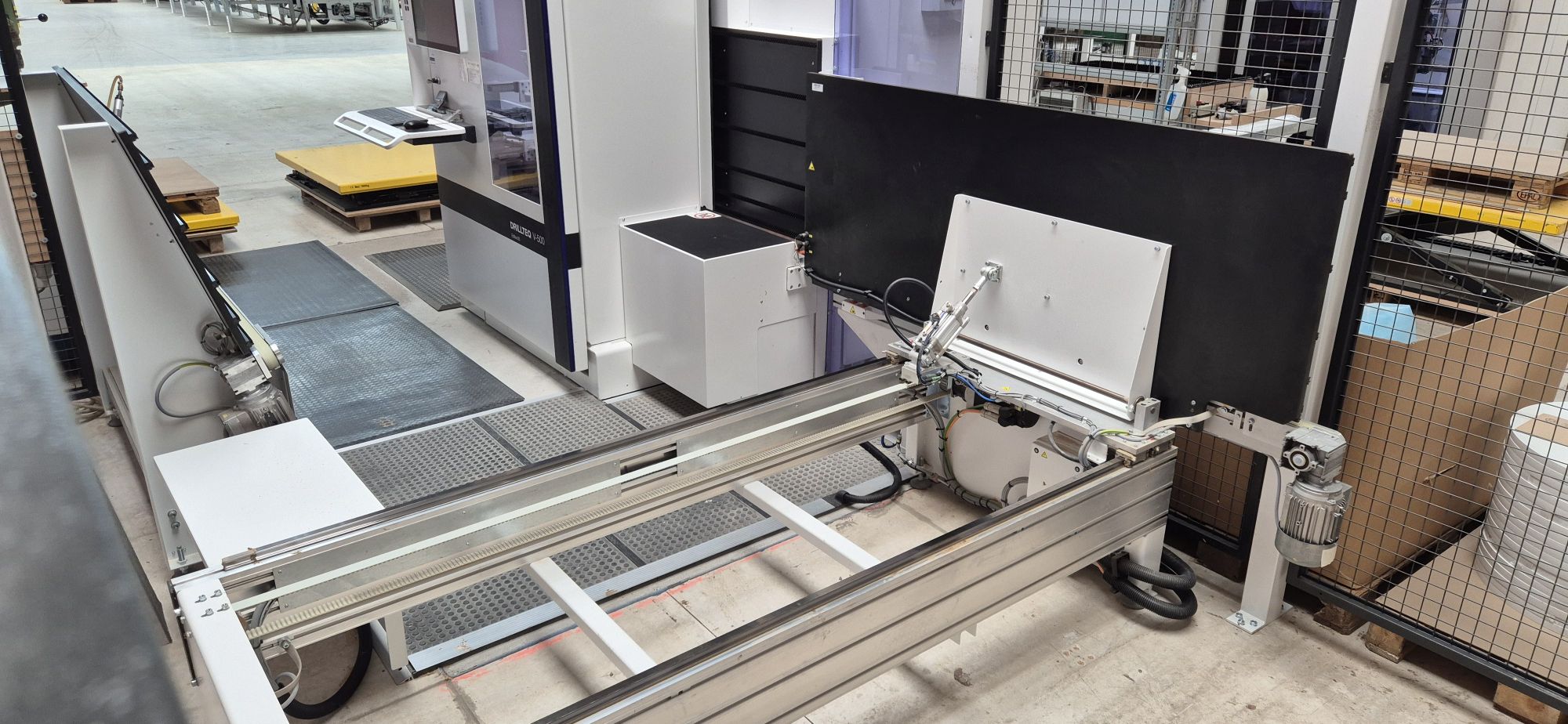

Automatic return system with angle transfer

Questions about this machine

vertical CNC machining centre
Brand: Homag
Type: Drillteq V-500
Year of construction: 2019

technical data
With 2 pieces drilling gear V10/32 mm
2 horizontal drilling gears with 6 spindles in X direction
2 horizontal drilling gears with 2 spindles in Y direction
1 grooving saw 0/90° swivelling
Dowel insertion station consisting of 2 tools (1xleft side, 1xright side)
Milling spindle 10 KW ( HSK 63), with 4-fold tool changer
Workpiece length max. 3050 mm, workpiece width max. 1,250 mm

Automatic return system with angle transfer

Note:
The technical data and descriptions are transcribed from the original order confirmation. The information is for reference only and is not legally binding.
