- New showroom machine
- Immediately available

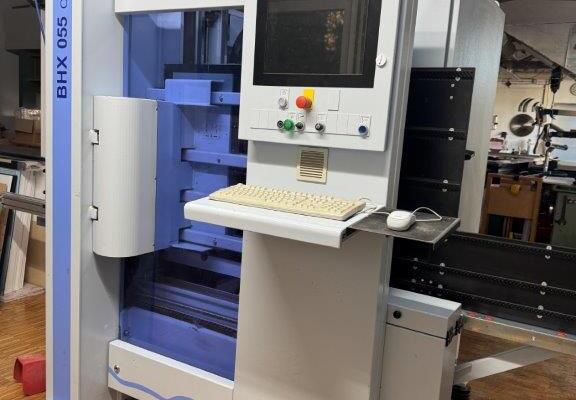

- Vertical CNC panel milling machine

- new machine -
- CNC machining center for timber beams,
  strips and other narrow parts
- Space-saving and quick magazine loading
- 360° sawing, milling and drilling unit
- immediately available in our showroom

- immediately available demonstration machine
- maximum flexibility in the choice of edge material and the shape of the workpiece
- swivable table 0°- 45°

with milling and gluing unit for butt joint gluing

Bestehend aus:
- Luftkissentisch
- 2 angetriebene Gurtbänder
- Auslaufröllchentisch

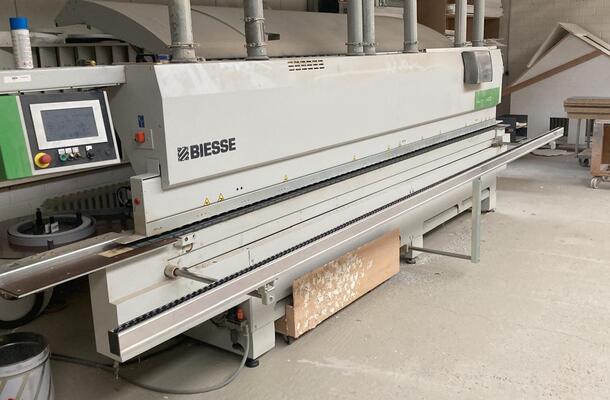

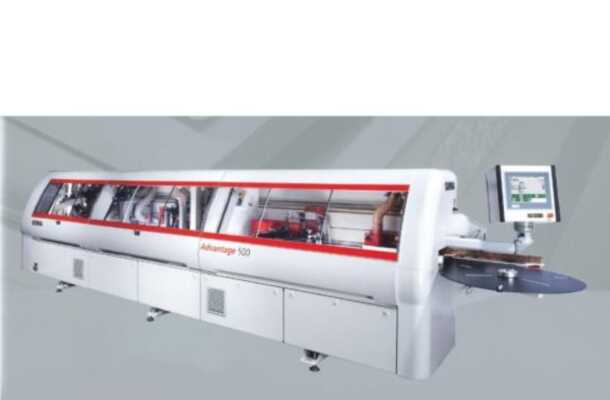

- reconditioned edge banding machine for industrial furniture production.
- Double-sided longitudinal and transverse processing with joining, gluing and finishing of edge material.

Tischabmessungen:
- Breite 1.260 mm + 430 mm Verlängerung
- Tiefe 770 mm + Verlängerung 400 mm

The workpiece return enables one-man operation
on edge banding machines.

for right machine

Extended workpiece support left- / right side each 840 mm

- Working area:
X = 3060 mm,
Y = 1260 mm,
Z = 150 mm
- 7 kW (9.5 HP) electrospindle with ISO 30 adapter
- BH 21L drill head

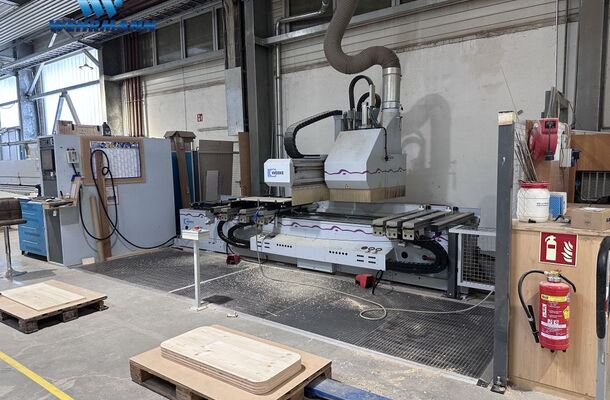

Working area with 4 axes: X=3,280 mm; Y=1,320 mm
Table with 6 workpiece supports
6 rear stops, 6 centre stops (670 mm from the rear), 6 front stops
4 lateral stops
4 positioning aids
Main spindle with motor 13.2 KW - 1,000 - 24,000 rpm with C-axis 360°
BH 26 2L drilling head (16xvertical, 4 horizontal spindles with double output, 2 grooving saws)
Lateral linear tool magazine with 10 pockets
+ 16-position turret magazine directly on the machining unit

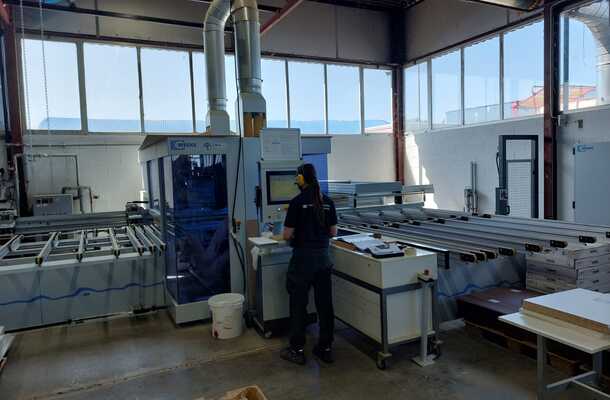

Workpiece size 4,000 x 1,550 mm
18-position tool changer
Main spindle 12 KW, 0-24,000 rpm, with C-axis for Flex-5 unit
Drilling head 21 spindles V17 / H4 / SO / 90°
POWEREDGE gluing unit for 360° joint gluing
EVA granulate container including feeder
Pre-capping station and 2-fold roller
Interchangeable units: drilling and trimming unit 4 spindles, sawing and snipping unit, combined flush trimming and scraper unit
Laser positioning aid

Year 2019
With 2 pieces drilling gear V10/32 mm
2 horizontal drilling gears with 6 spindles in X direction
2 horizontal drilling gears with 2 spindles in Y direction
1 grooving saw 0/90° swivelling
Dowel insertion station consisting of 2 tools (1xleft side, 1xright side)
Milling spindle 10 KW ( HSK 63), with 4-fold tool changer
Workpiece length max. 3050 mm, workpiece width max. 1,250 mm

Automatic return system with angle transfer

Year of construction: 2020
Workpiece parameters 4,000 mm x 1,550 mm
18-position tool changer
Main spindle 15 KW, with C-axis
Drilling gear 21 spindles ( V17 / H4 / SO / 90° )
POWEREDGE PRO DUO gluing unit, with 360° joint gluing
Interchangeable units: drilling and trimming unit 4 spindles, sawing and snipping unit, combined flush trimming and scraper unit
Granulate container for hot melt adhesive
Pre-cutting station and 2-fold roller
Table for 2-fold loading and pendulum processing
Chip conveyor belt

Year of manufacture: 2021

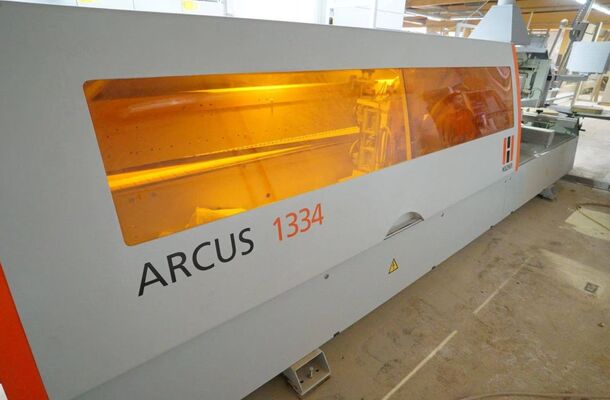

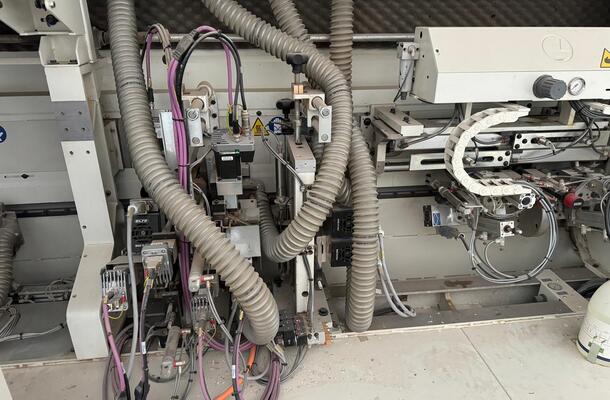

Joint trimming unit with 2 motors, each 3 kW
Gluing unit with EVA melting unit (6 liters), QA65P application unit for EVA, polyolefin, and PUR
Airtec activation unit
Cutting unit PK 25
Pre-trimming unit with 2 motors
Trimming unit PF 21
Profile trimming unit FK30/V20
Trimming unit FK30/FK31
Multi-scraper MN21
Glue joint scraper
Buffing unit FP 10
1 grooving unit
Workpiece return

year of construction 2022

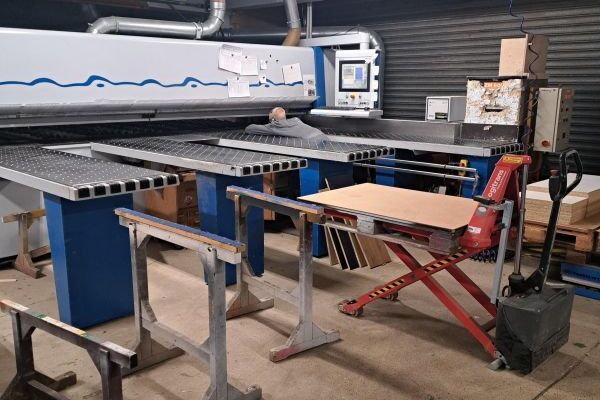

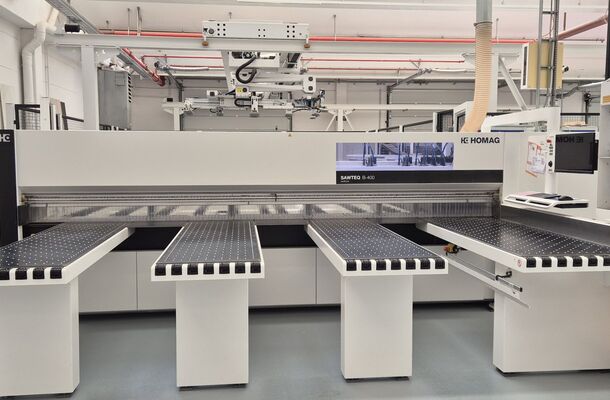

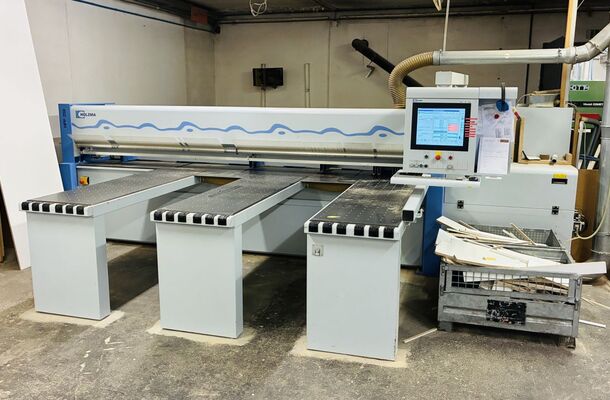

Panel saw SAWTEQ B-400
Saw blade projection 125 mm
Pre-stacking table 4,300 x 2,200 mm
Main saw motor 18.0 KW , scoring unit 2.2 KW
Grooving programme ( automatic)
Cut Profi (T) Advanced V11
Panel storage STORETEQ S-200 ( Profi TLF 212/15/12)
Tracks X / Y approx. 15 x 12 metres

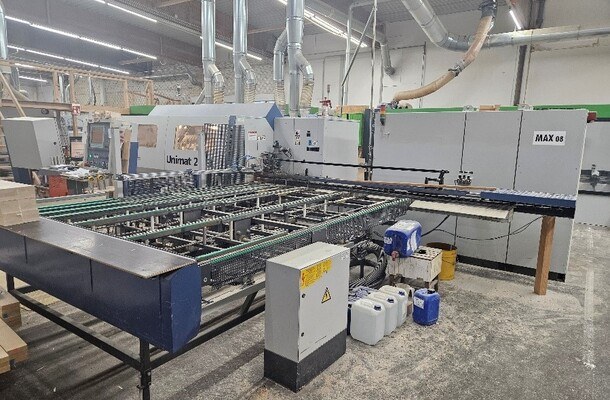

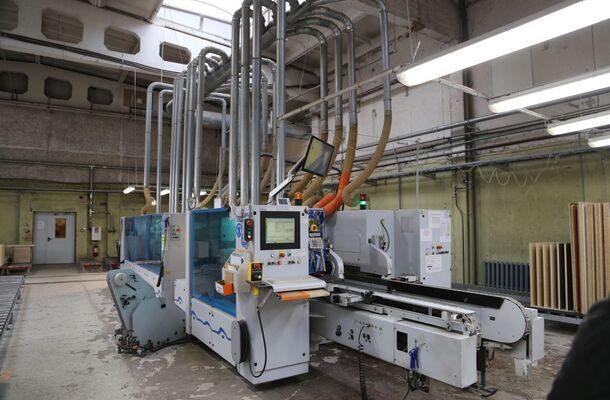

system consists of:
- Weinig UC Matric
- Weinig Unimat 23 EL
- Schleifmaschine Roto Finish
- Weinig Unirex
- Weinig Unitec
- Weinig Univar
- Wender
- Beipass für Bestückung Biesse
- Auslaufförderer
- Biesse WinLine One
- Biesse Parternosterpuffer
- Biesse Portal 1
- Biesse Portal 2
- Biesse Rundbogentisch
- Biesse Flexstoor 1 and 2

system consists of:
- Weinig UC Matric
- Weinig Unimat 23 EL
- Schleifmaschine Roto Finish
- Weinig Unirex
- Weinig Unitec
- Weinig Univar
- Wender
- Beipass für Bestückung Biesse
- Auslaufförderer
- Biesse WinLine One
- Biesse Parternosterpuffer
- Biesse Portal 1
- Biesse Portal 2
- Biesse Rundbogentisch
- Biesse Flexstoor 1 and 2

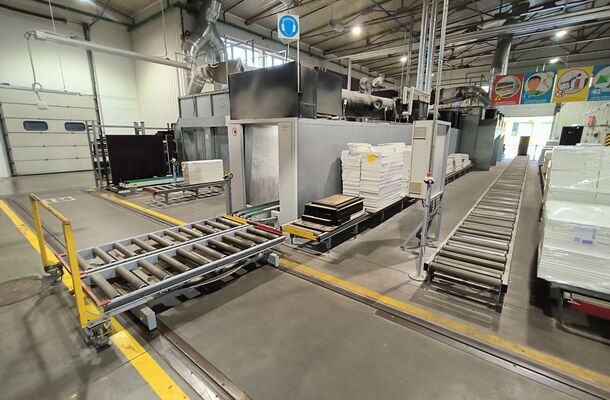

The system consists of:
- Feeder
- Transport table with a cleaner
- Spray coating machine
- Drying tunnel with IR lamps, 2 pieces
- UV tunnel
- Roller conveyor
- Turntable
- Transport table
- Transport table with a cleaner
- Spray painting machine
- Drying tunnel with IR lamps, 2 pieces
- UV tunnel
- roller conveyor

The system consists of:
- Feeder
- Transport table with a cleaner
- Spray coating machine
- Drying tunnel with IR lamps, 2 pieces
- UV tunnel
- Roller conveyor
- Turntable
- Transport table
- Transport table with a cleaner
- Spray painting machine
- Drying tunnel with IR lamps, 2 pieces
- UV tunnel
- roller conveyor

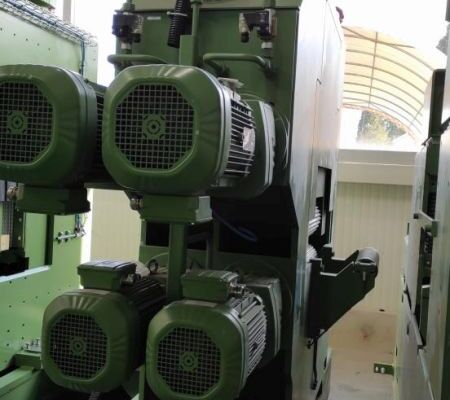

Sanding unit equiment:
Q / Q / L / L / L / L / Brush / Brush
