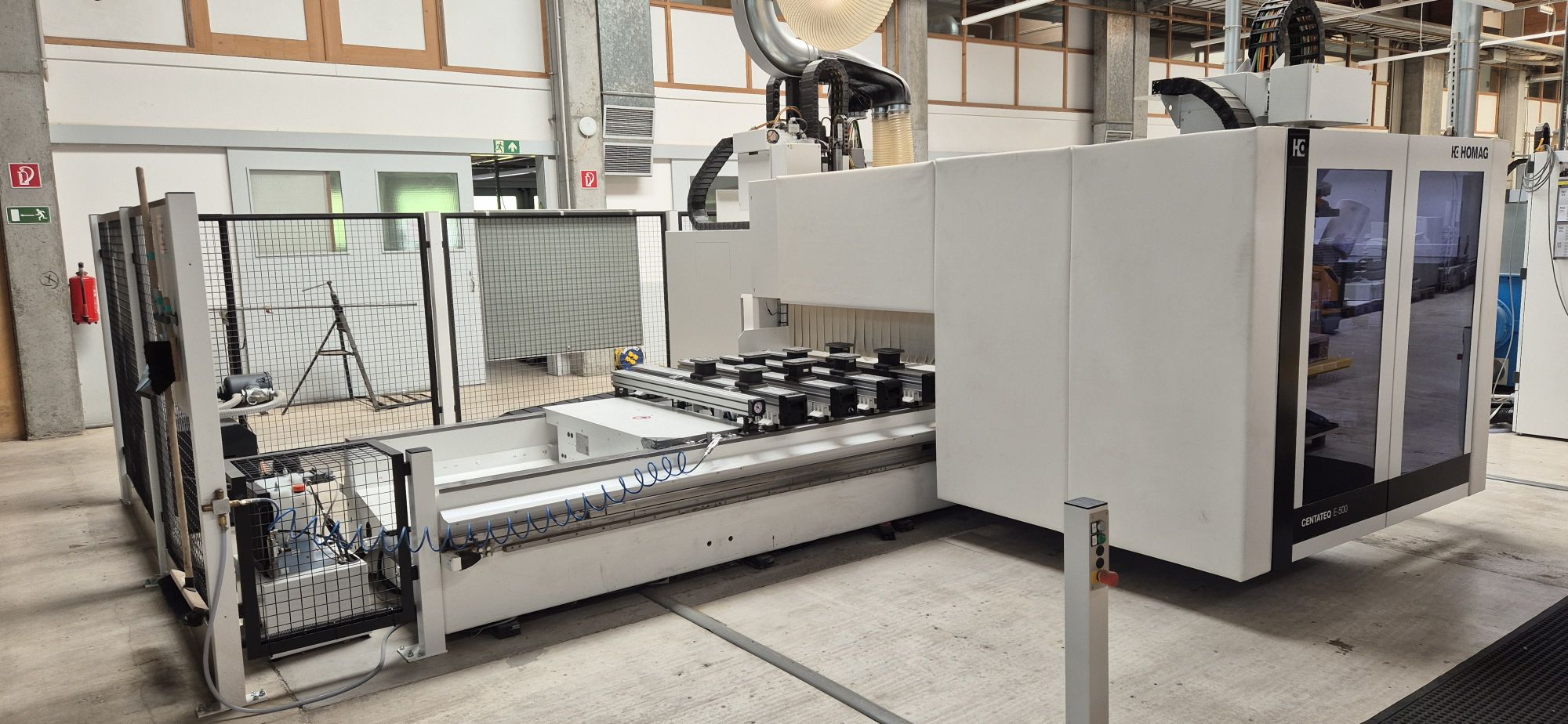

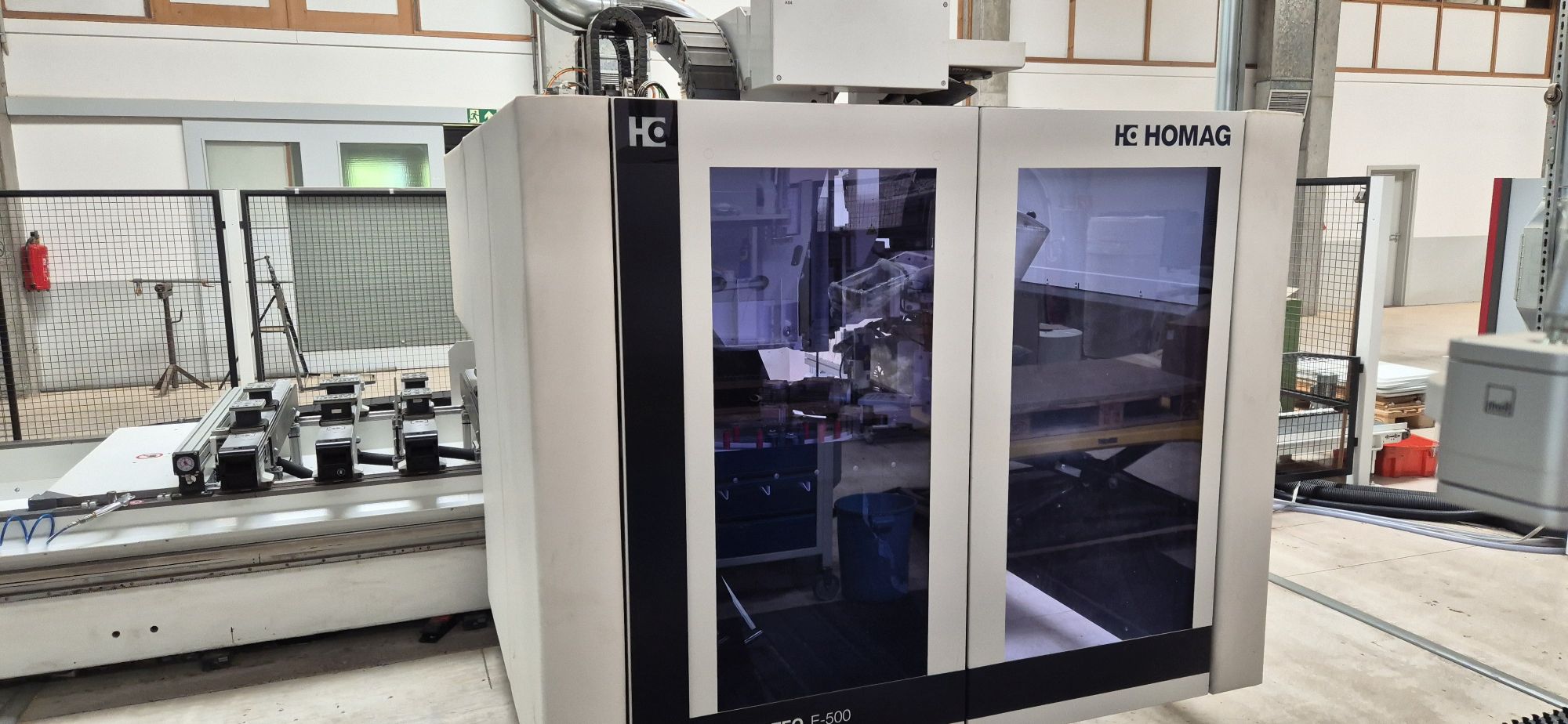

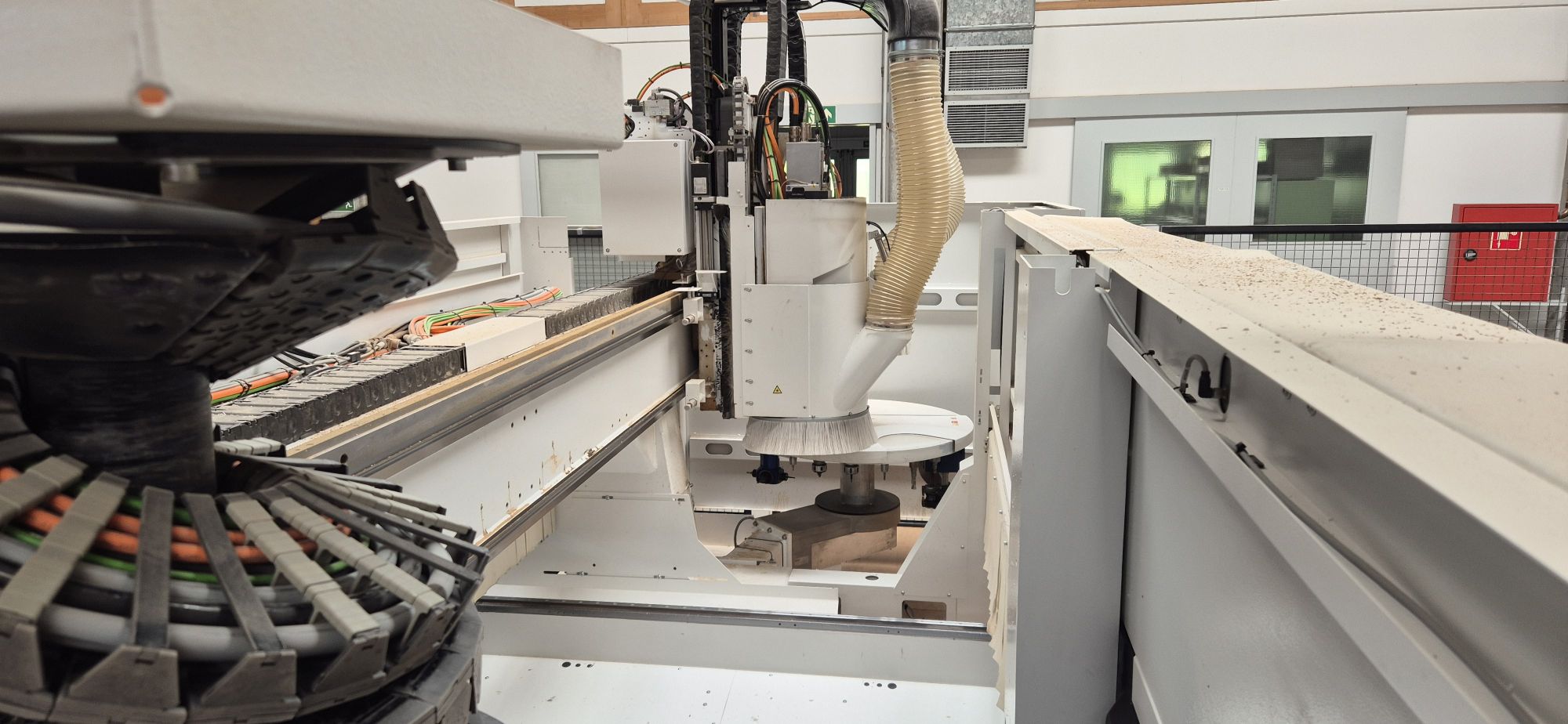

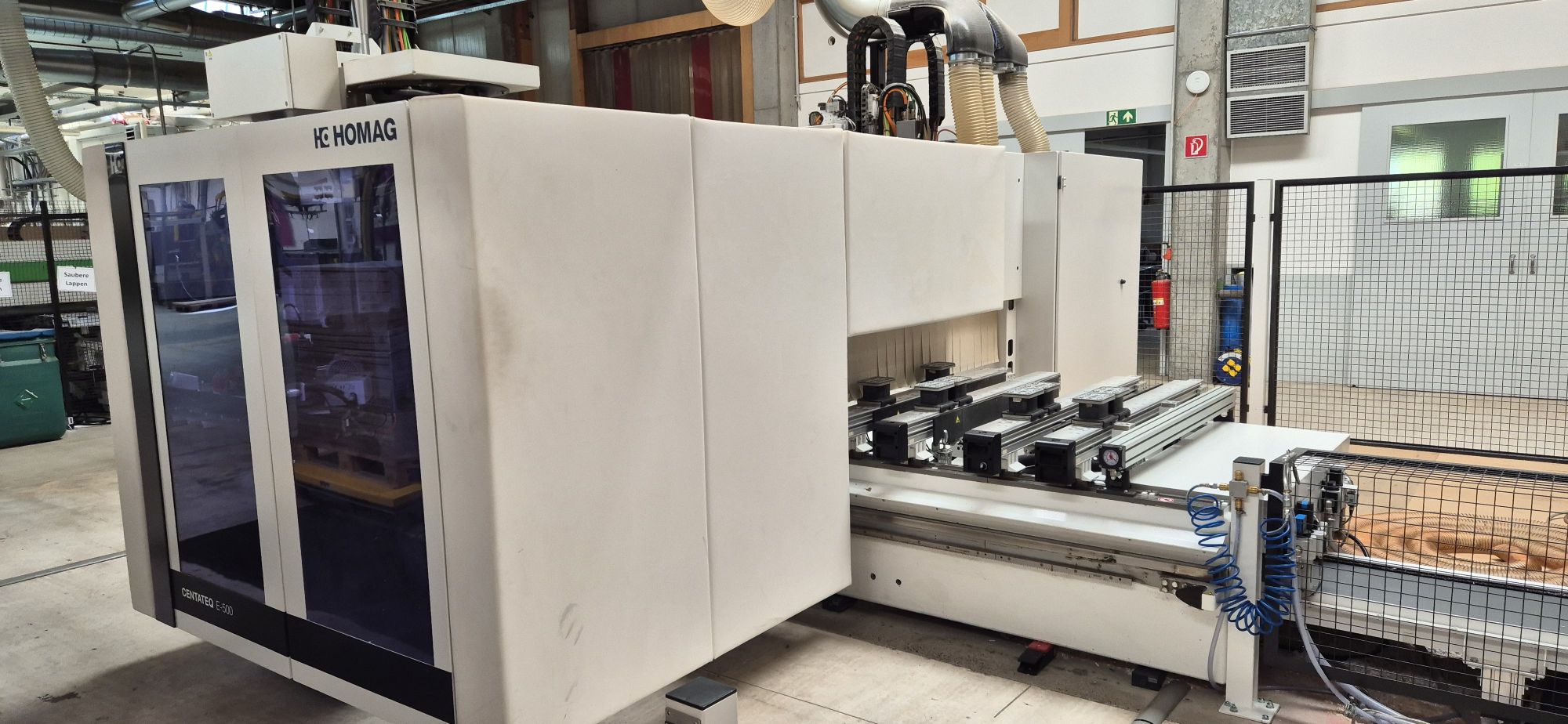

CNC machining centre with gluing unit

BrandHOMAG

typeCENTATEQ E-500

stateUsed

stock number0401804

year2020

Year of construction: 2020
Workpiece parameters 4,000 mm x 1,550 mm

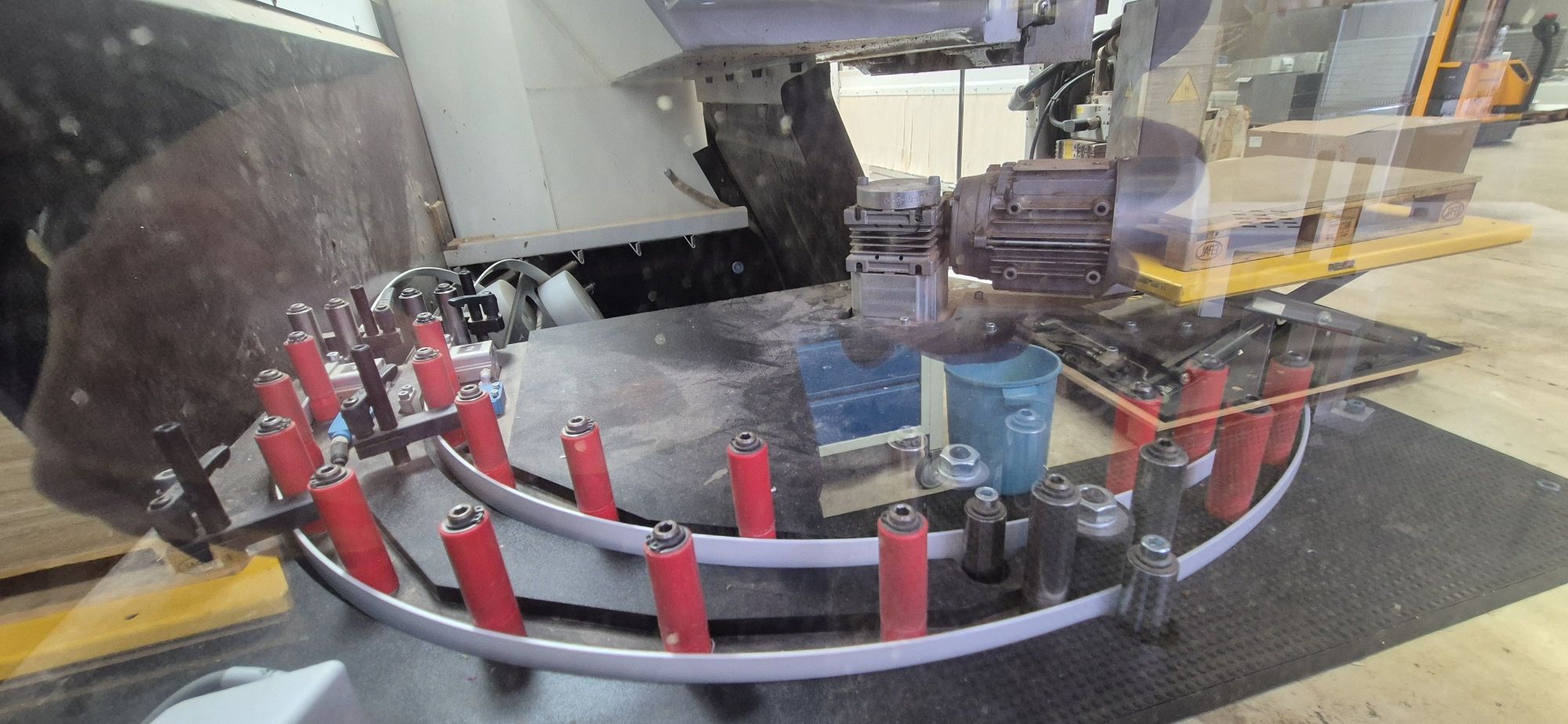

18-position tool changer
Main spindle 15 KW, with C-axis
Drilling gear 21 spindles ( V17 / H4 / SO / 90° )

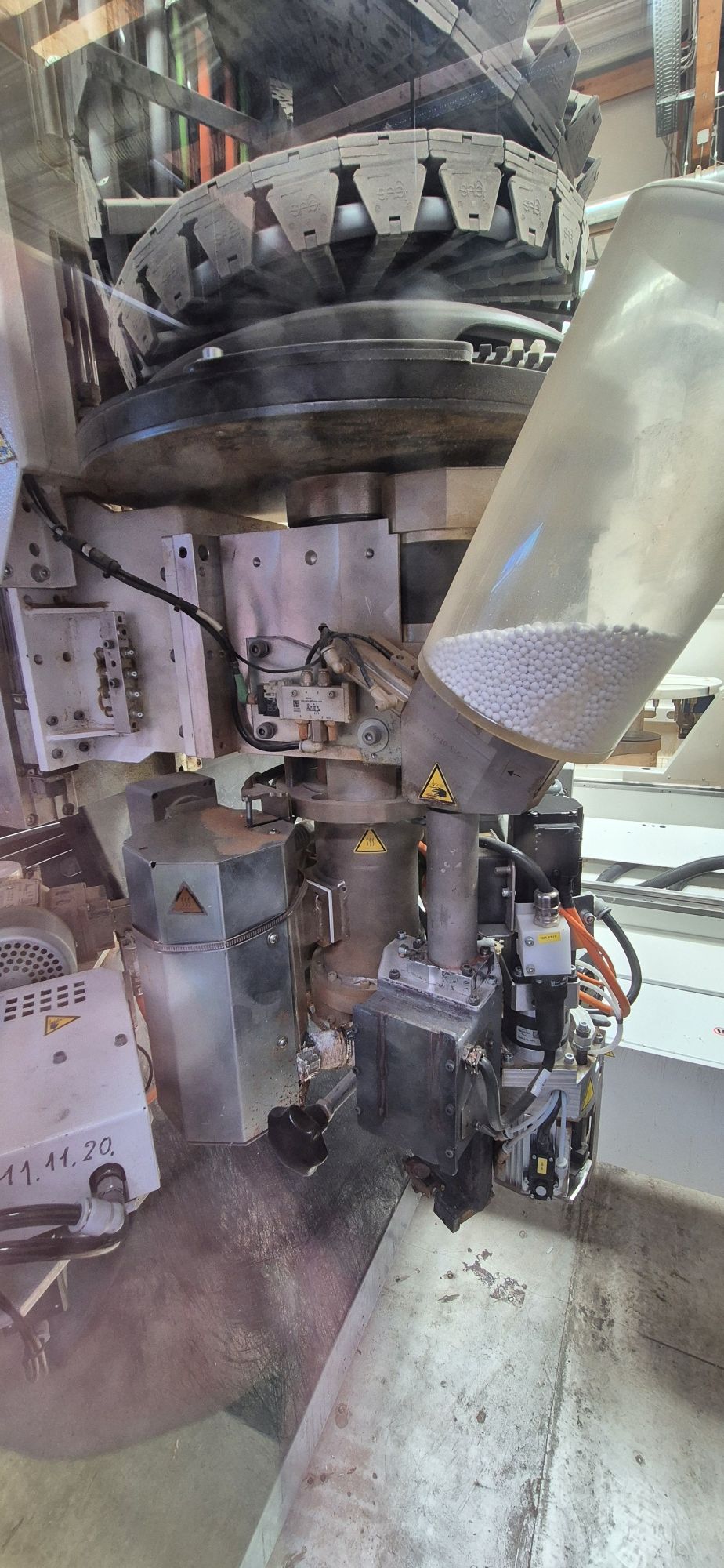

POWEREDGE PRO DUO gluing unit, with 360° joint gluing
Interchangeable units: drilling and trimming unit 4 spindles, sawing and snipping unit, combined flush trimming and scraper unit
Granulate container for hot melt adhesive
Pre-cutting station and 2-fold roller
Table for 2-fold loading and pendulum processing
Chip conveyor belt

Questions about this machine

CNC machining centre with gluing unit
Brand: Homag
Type: Centateq E 500
Year of construction: 2020

Technical data
Workpiece parameters 4,000 mm x 1,550 mm
18-position tool changer
Main spindle 15 KW, with C-axis
Drilling gear 21 spindles ( V17 / H4 / SO / 90° )
POWEREDGE PRO DUO gluing unit, with 360° joint gluing
Interchangeable units: drilling and trimming unit 4 spindles, sawing and snipping unit, combined flush trimming and scraper unit
Granulate container for hot melt adhesive
Pre-cutting station and 2-fold roller
Table for 2-fold loading and pendulum processing
Chip conveyor belt

Note:
The technical data and descriptions are transcribed from the original order confirmation. The information is for reference only and is not legally binding.
