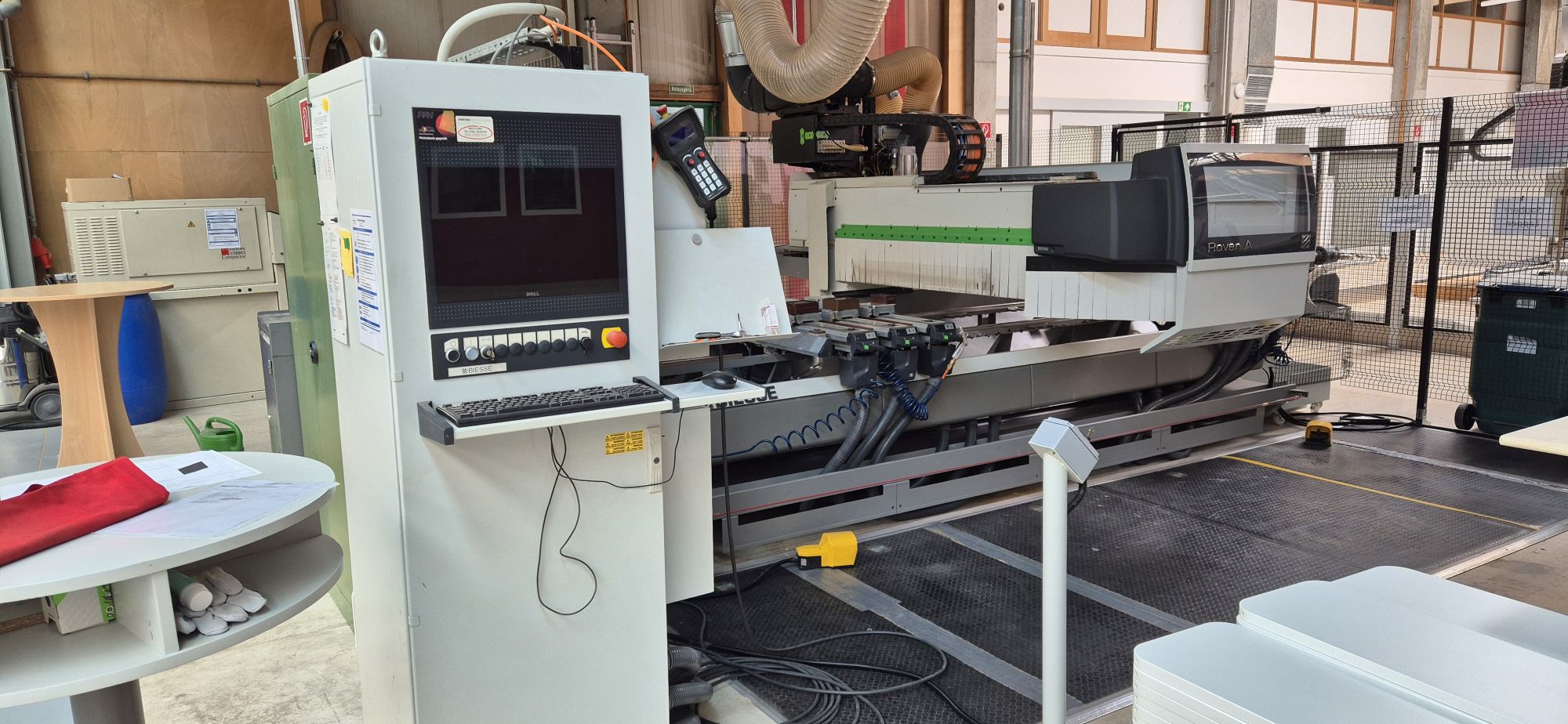

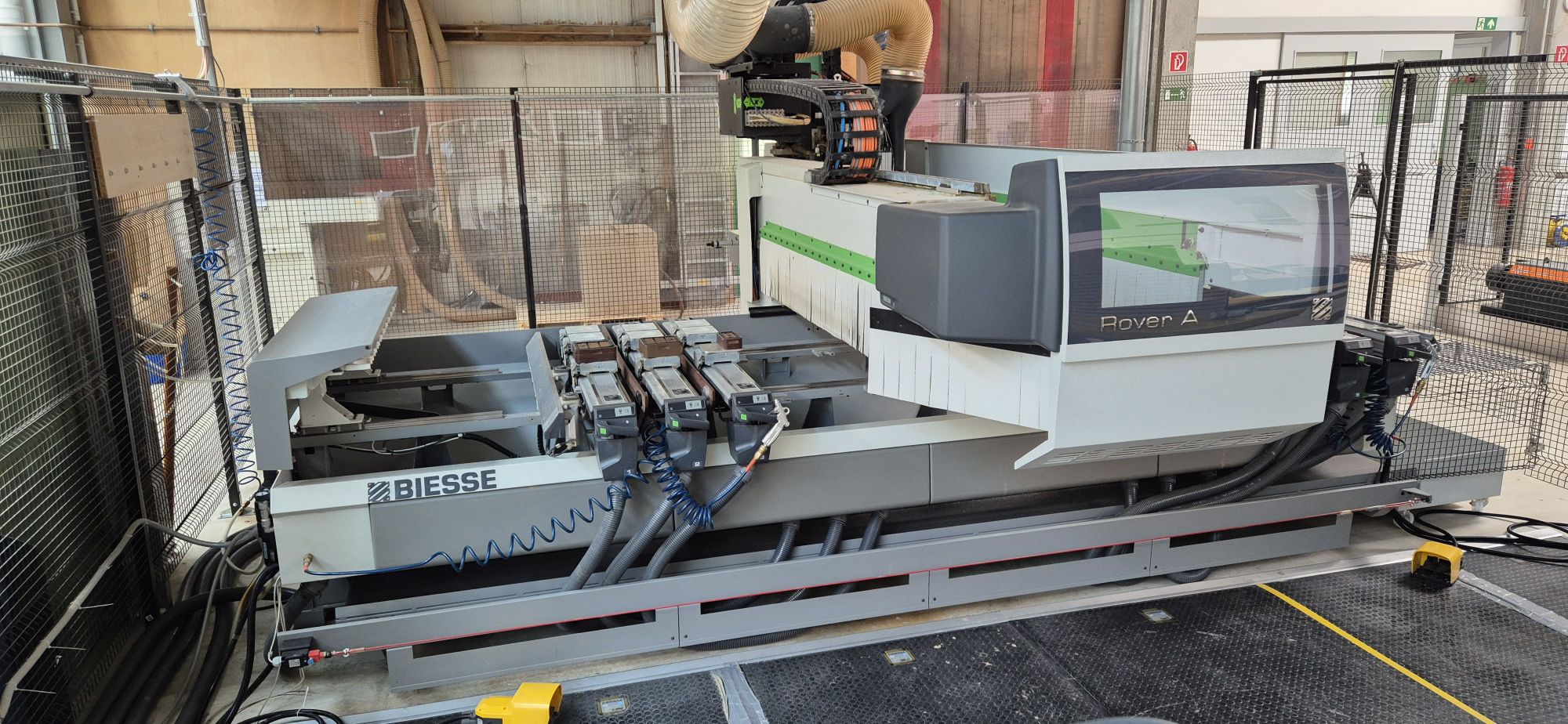

CNC machining centre

BrandBIESSE

typeROVER A ATS

stateUsed

stock number0401807

year2012

Working area with 4 axes: X=3,280 mm; Y=1,320 mm
Table with 6 workpiece supports
6 rear stops, 6 centre stops (670 mm from the rear), 6 front stops
4 lateral stops
4 positioning aids

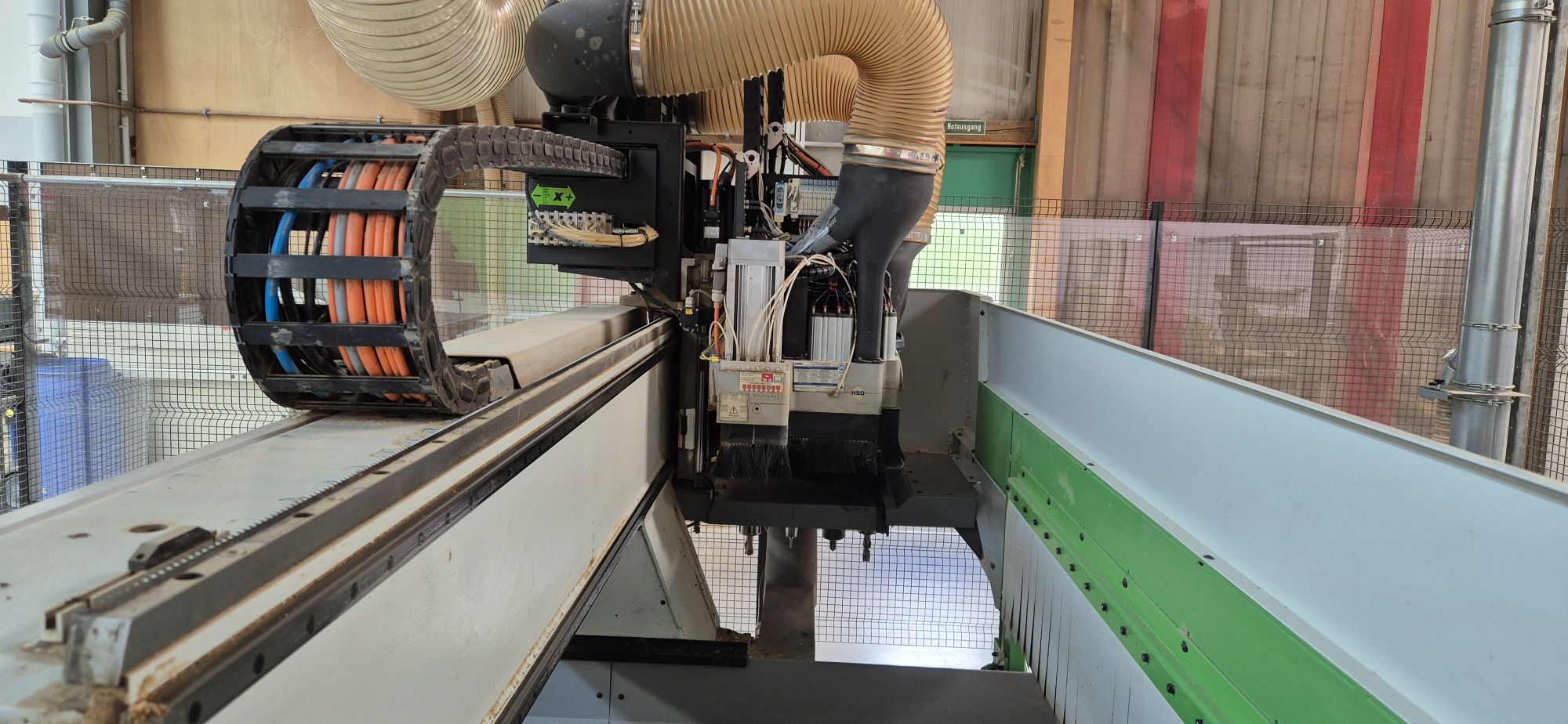

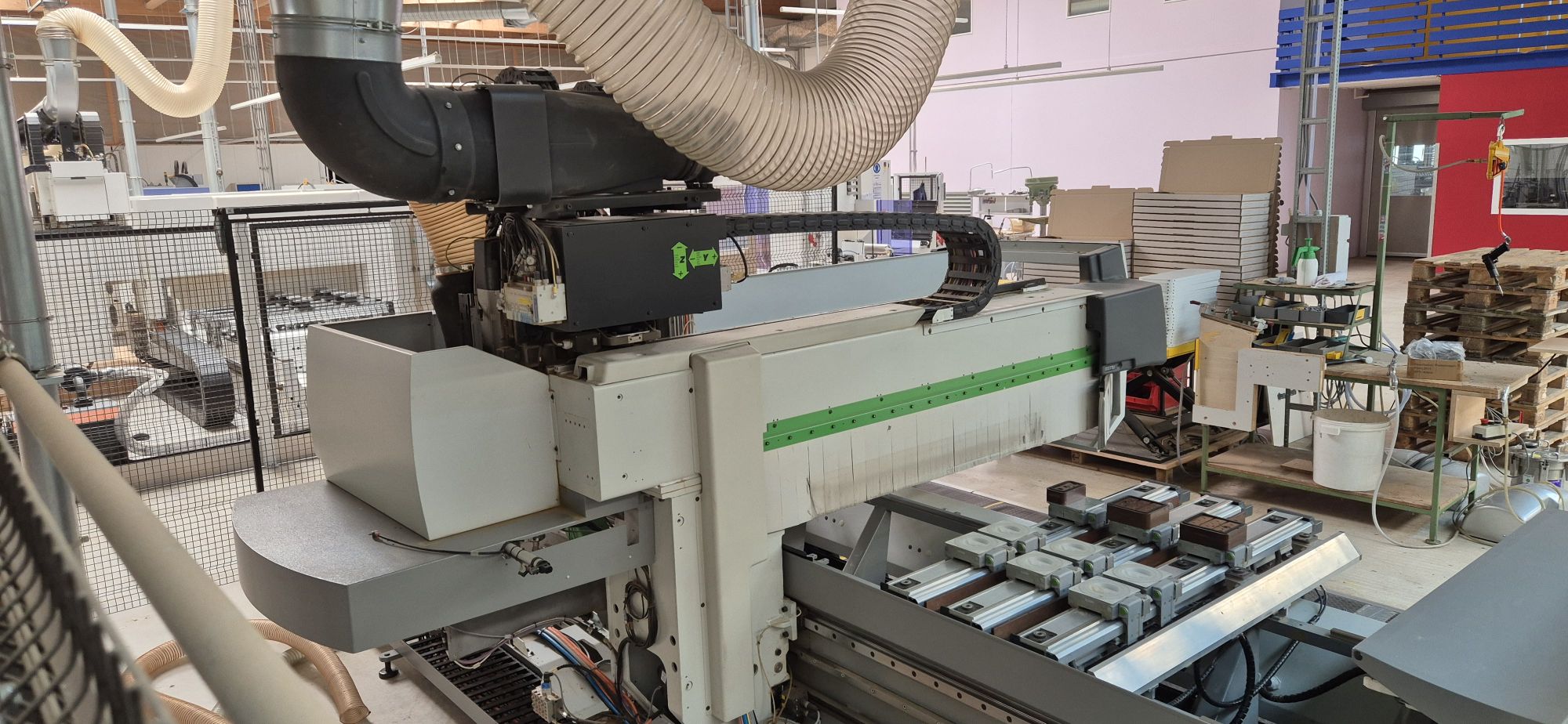

Main spindle with motor 13.2 KW - 1,000 - 24,000 rpm with C-axis 360°
BH 26 2L drilling head (16xvertical, 4 horizontal spindles with double output, 2 grooving saws)
Lateral linear tool magazine with 10 pockets
+ 16-position turret magazine directly on the machining unit

Questions about this machine

CNC machining centre
Brand: Biesse
Type: ROVER A ATS
Year of construction: 2012

Technical data
Working area with 4 axes: X=3,280 mm; Y=1,320 mm
Table with 6 workpiece supports
6 rear stops, 6 centre stops (670 mm from the rear), 6 front stops
4 lateral stops
4 positioning aids
Main spindle with motor 13.2 KW - 1,000 - 24,000 rpm with C-axis 360°
BH 26 2L drilling head (16xvertical, 4 horizontal spindles with double output, 2 grooving saws)
Lateral linear tool magazine with 10 pockets
+ 16-position turret magazine directly on the machining unit

Note:
The technical data and descriptions are transcribed from the original order confirmation. The information is for reference only and is not legally binding.
