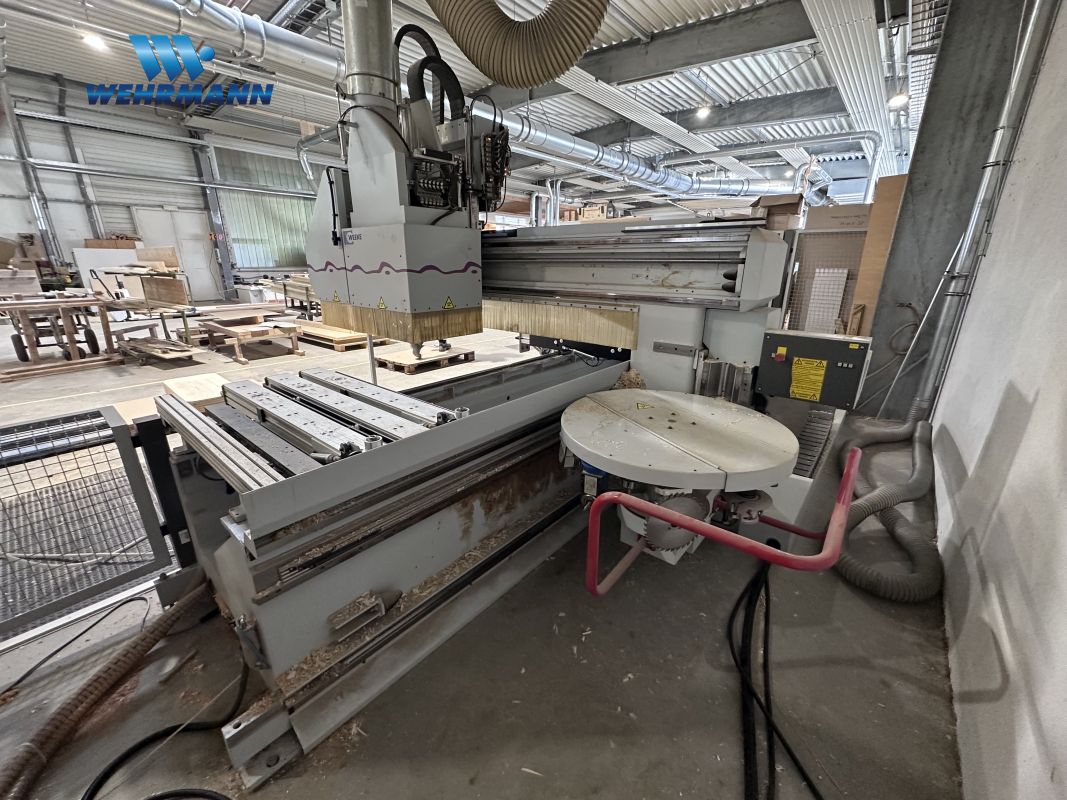

CNC processing centre

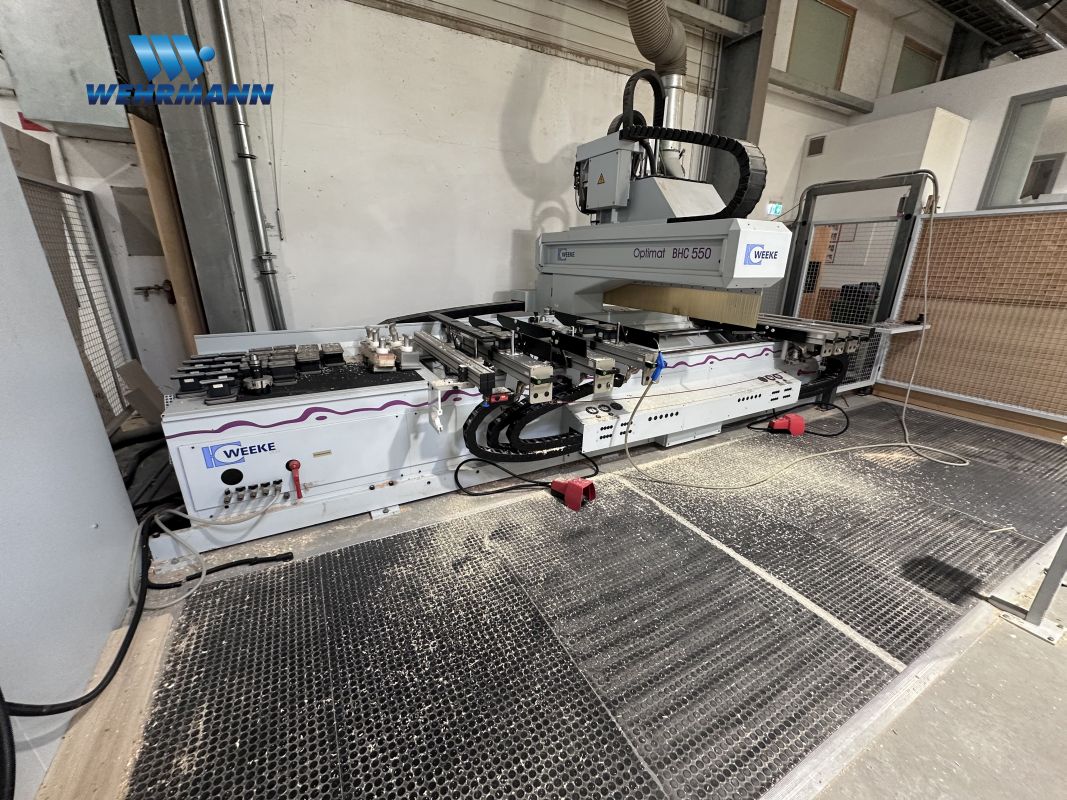

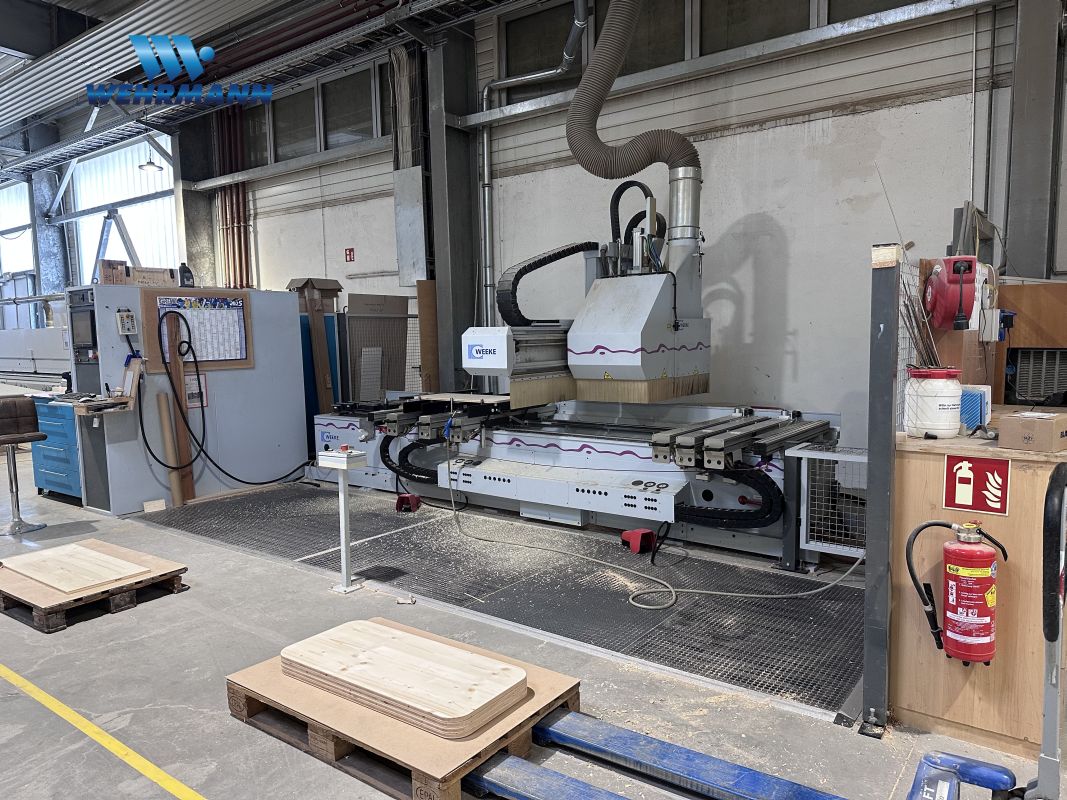

CNC Machining Center
Brand: Weeke

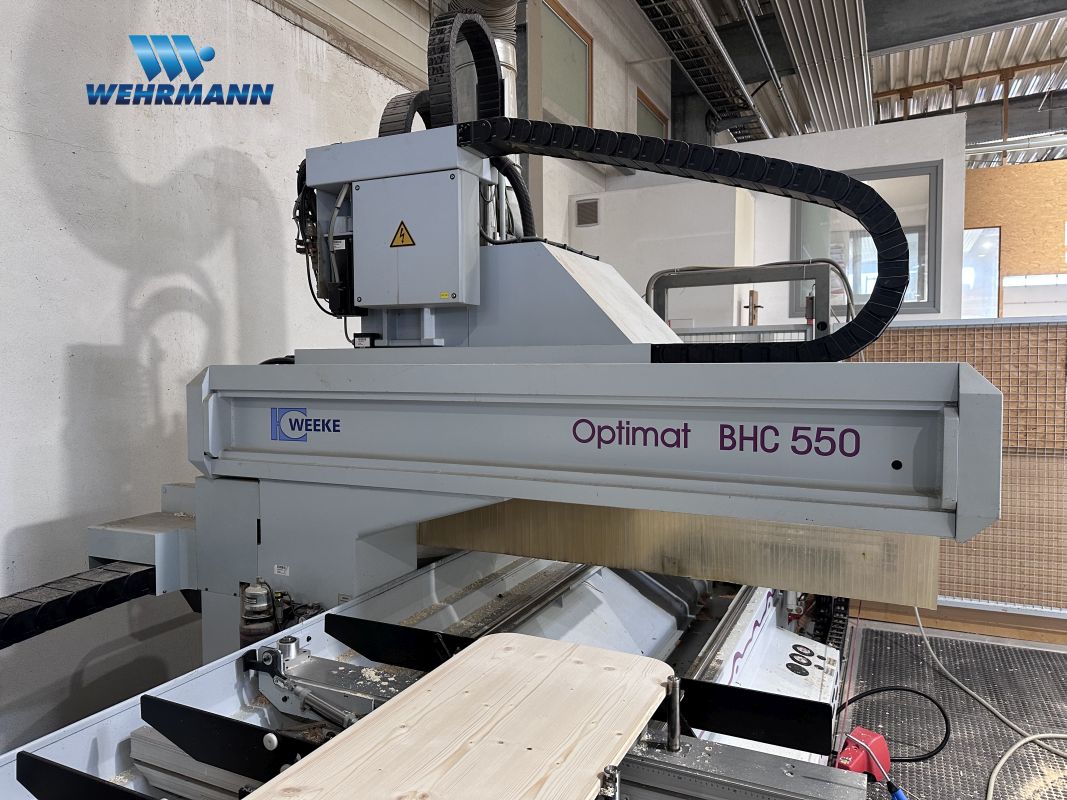

Type: Optimat BHC 550

Technical Specifications:
Axes: 4 (X/Y/Z - C)

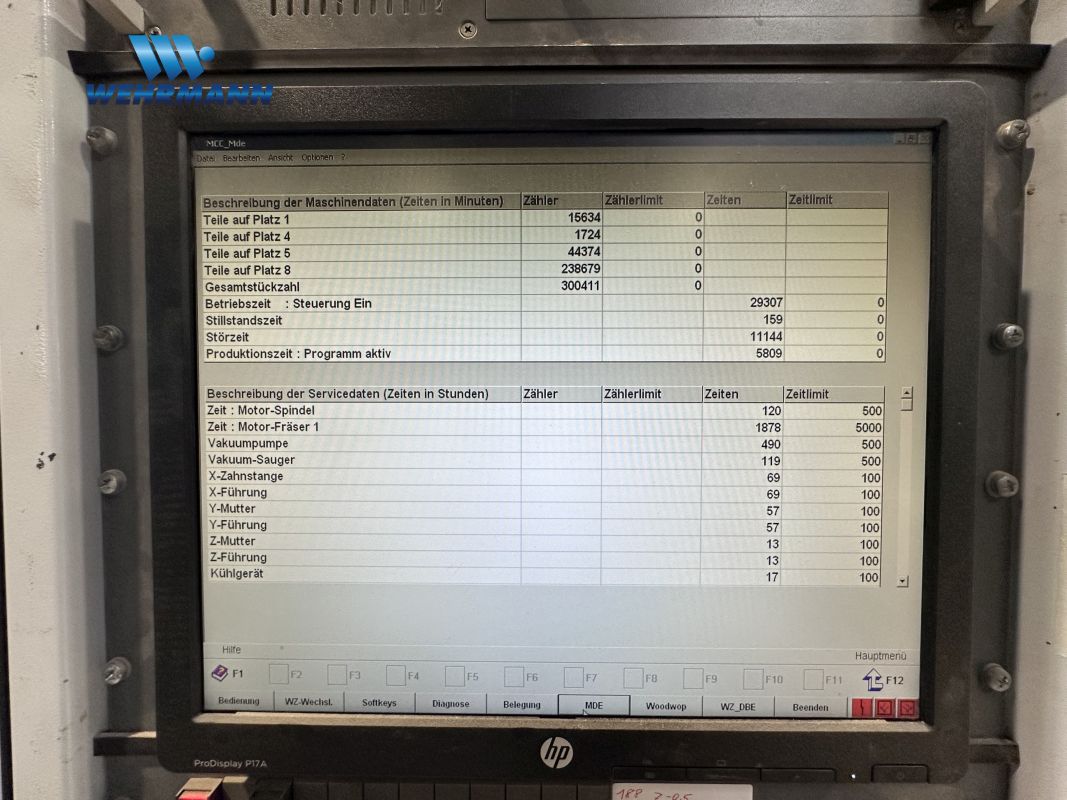

Operating Hours: approx. 29,307 hours
Number of Parts: approx. 300,411 pieces
Vacuum Pump: 2 Siemens ELMO-L
Program: WoodWop 4.5

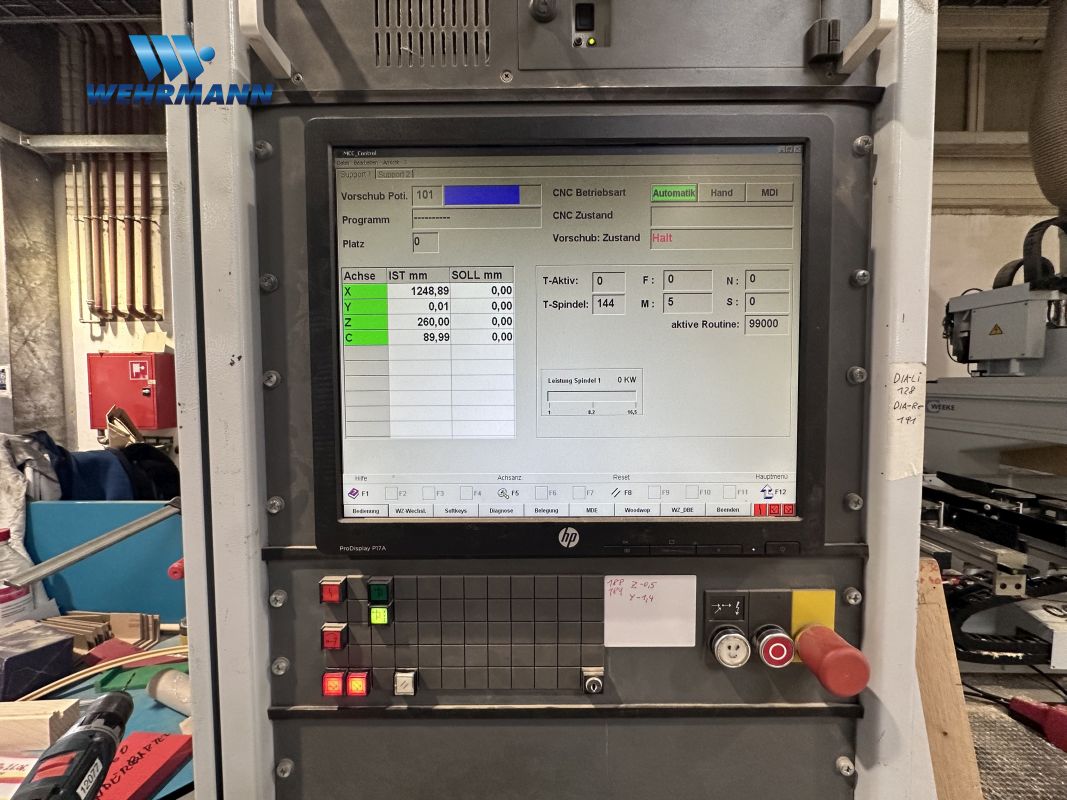

Operating System: Windows XP
External Dimensions Including Barriers: L/W/H - 6650/4500/2370mm
Support Table: L/W - 3250/1300mm (for all-around machining)
Workpiece Thickness: 100mm

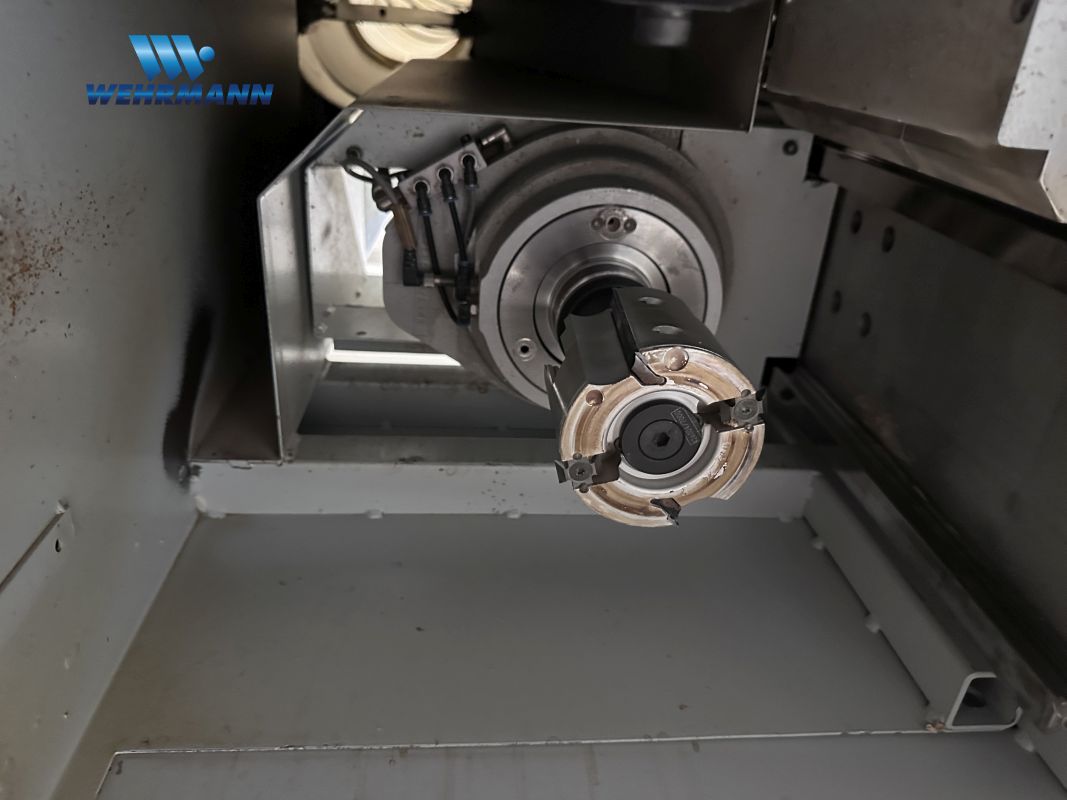

Spindle Mount: HSK - F63

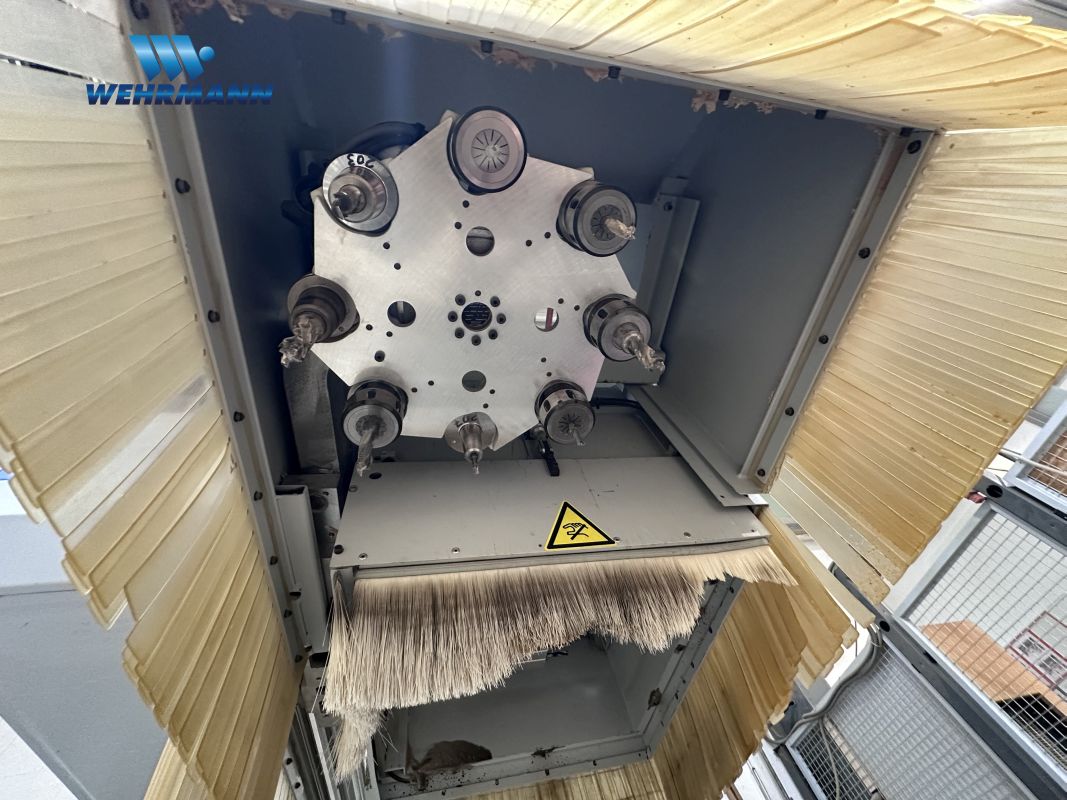

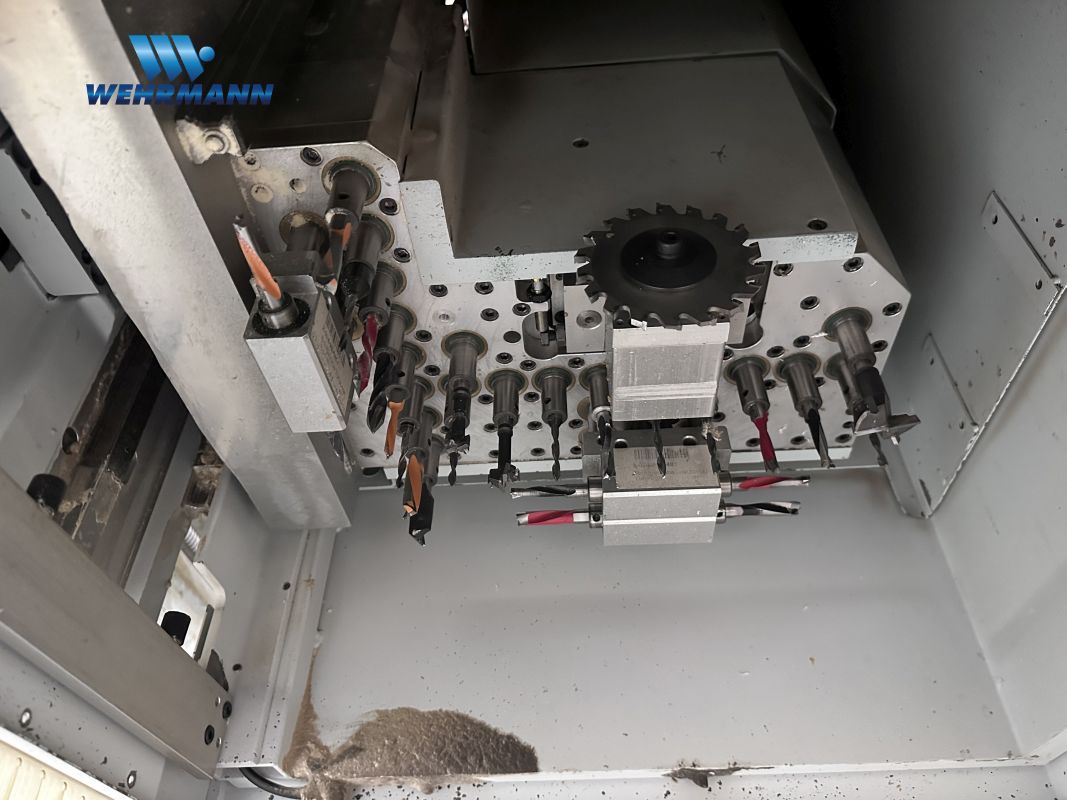

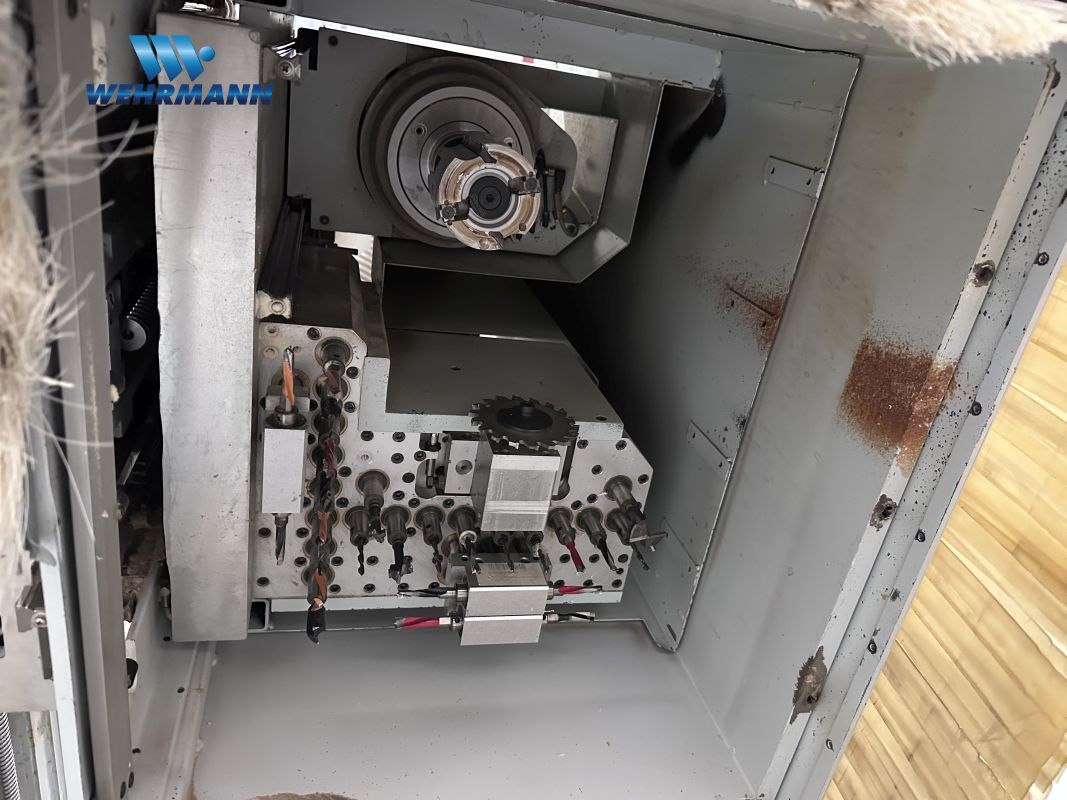

Front Tool Changer: 8 Positions

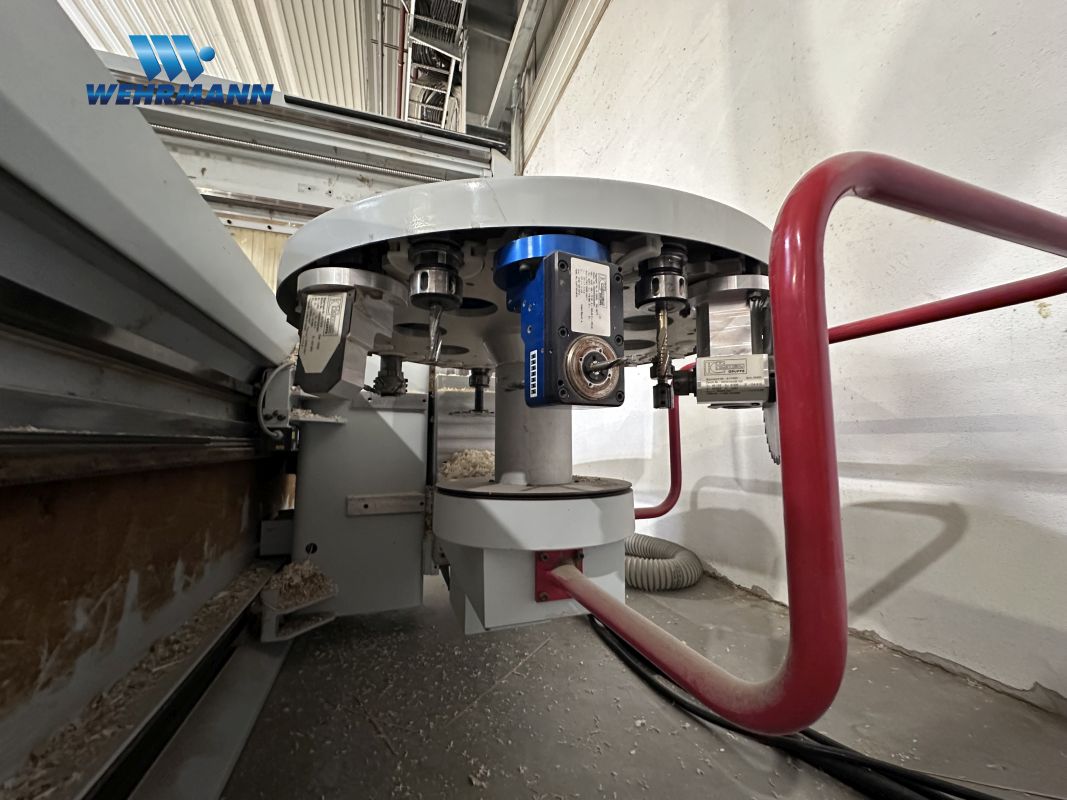

Rear Tool Changer: 18 Positions
Veneer Stop: Rear Swivel Stops
Front and Side Rotation Stops

Accessories:

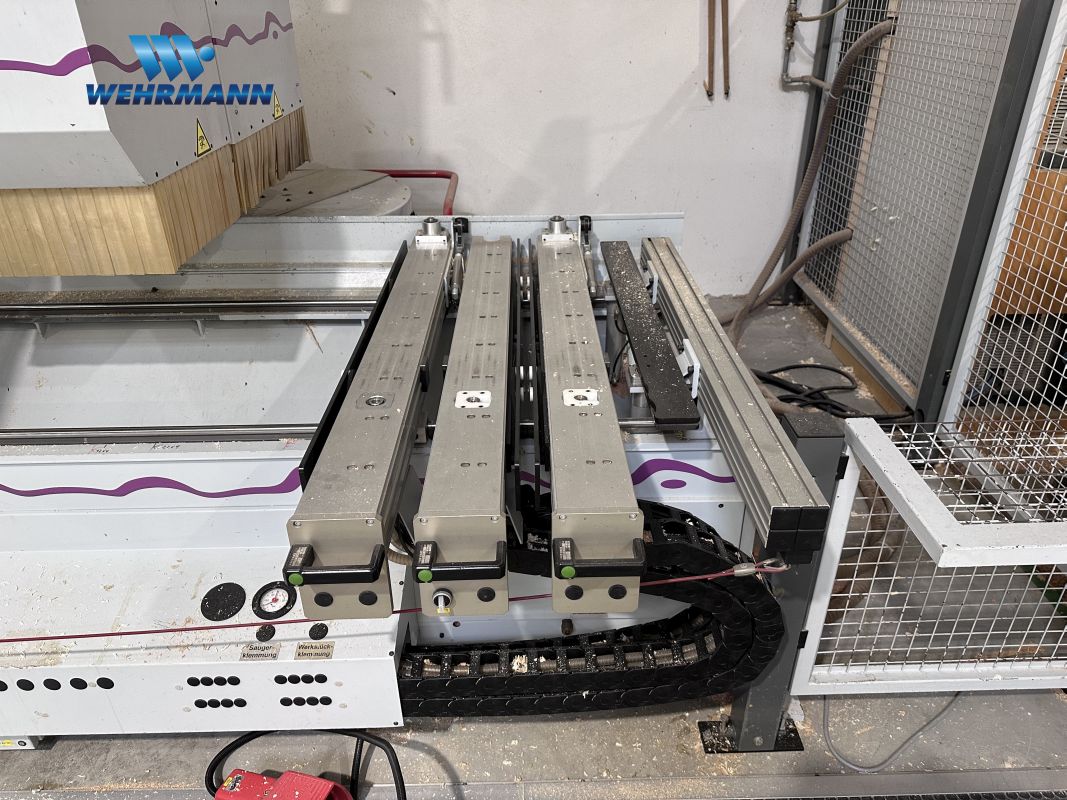

6 Clamps 2-circle workpiece H = max. 82 mm

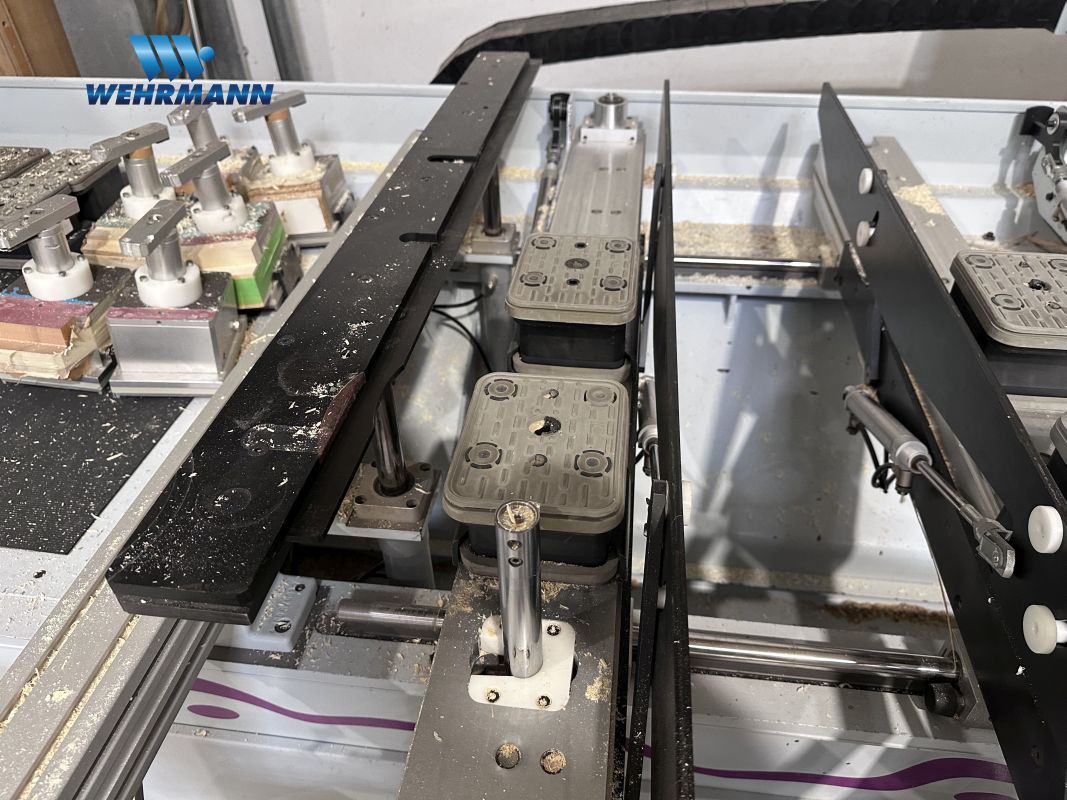

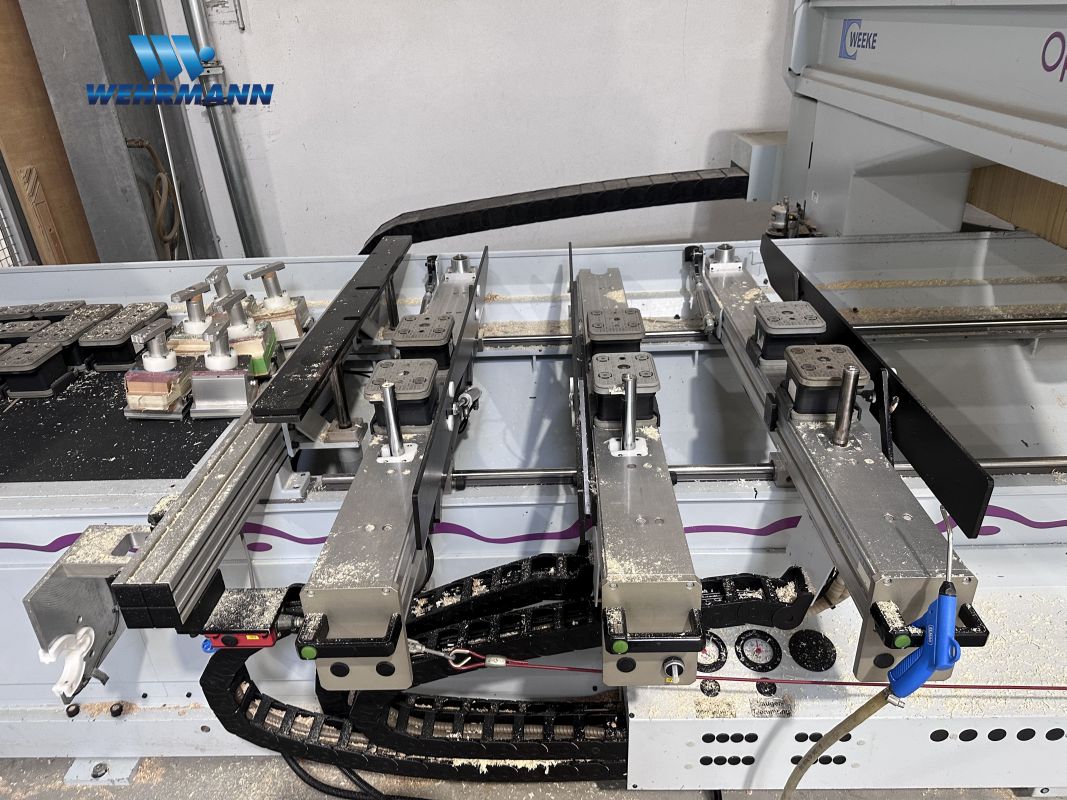

10 x 2-circle suction cups 130 x 35 mm
8 x 2-circle suction cups 125 x 75 mm
11 x 2-circle suction cups 110 x 135 mm

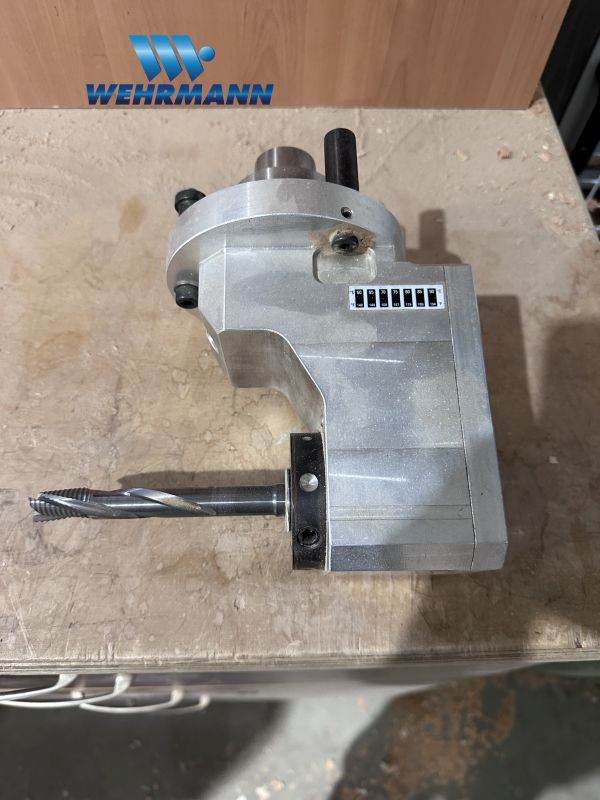

1 x single-slot lock case unit
Rotatable on C-axis

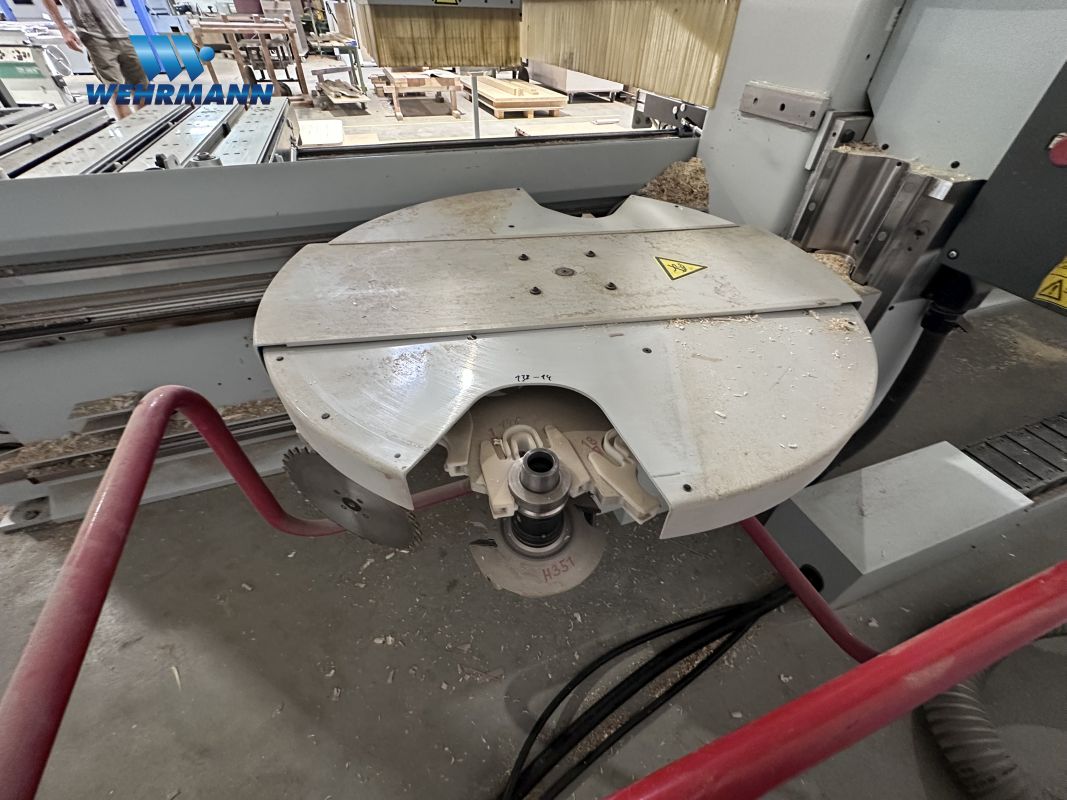

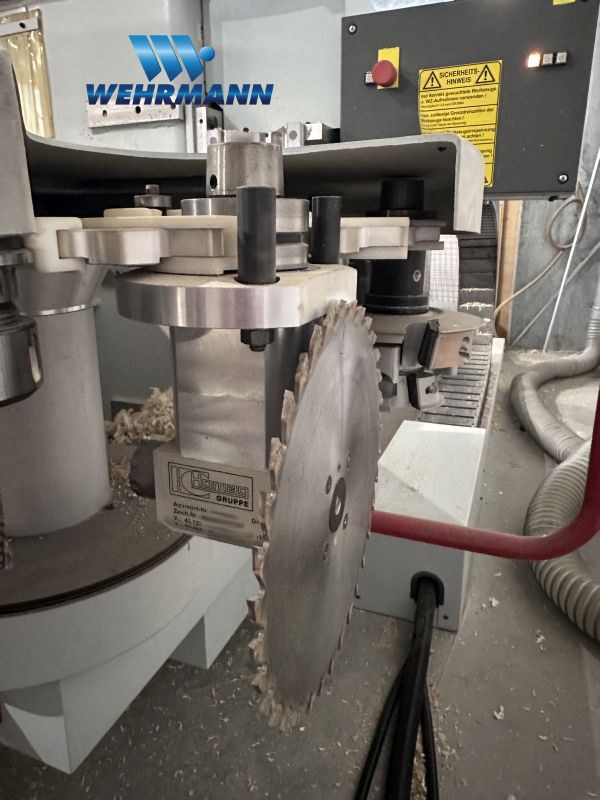

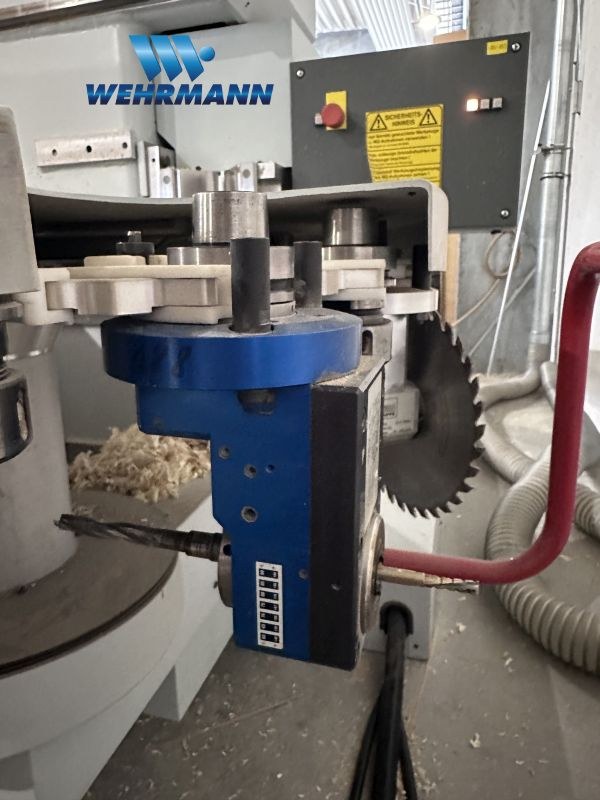

1 x MEC saw/milling/double-slot unit
Rotatable on C-axis

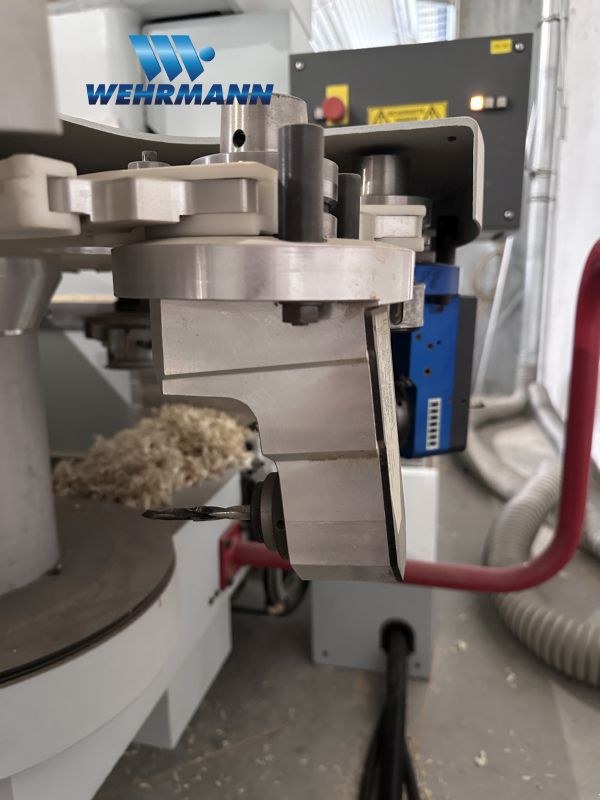

1 x double-slot lock case unit
Rotatable on C-axis
1 x Benz drilling unit 7° (for door hinges including program)
Rotatable on C-axis

Operating instructions

WITHOUT various end mills, drills, saw blades, and grooving wheels


Note:
The specifications and descriptions are a copy of the order confirmation at that time. Data are for information and are not binding.
