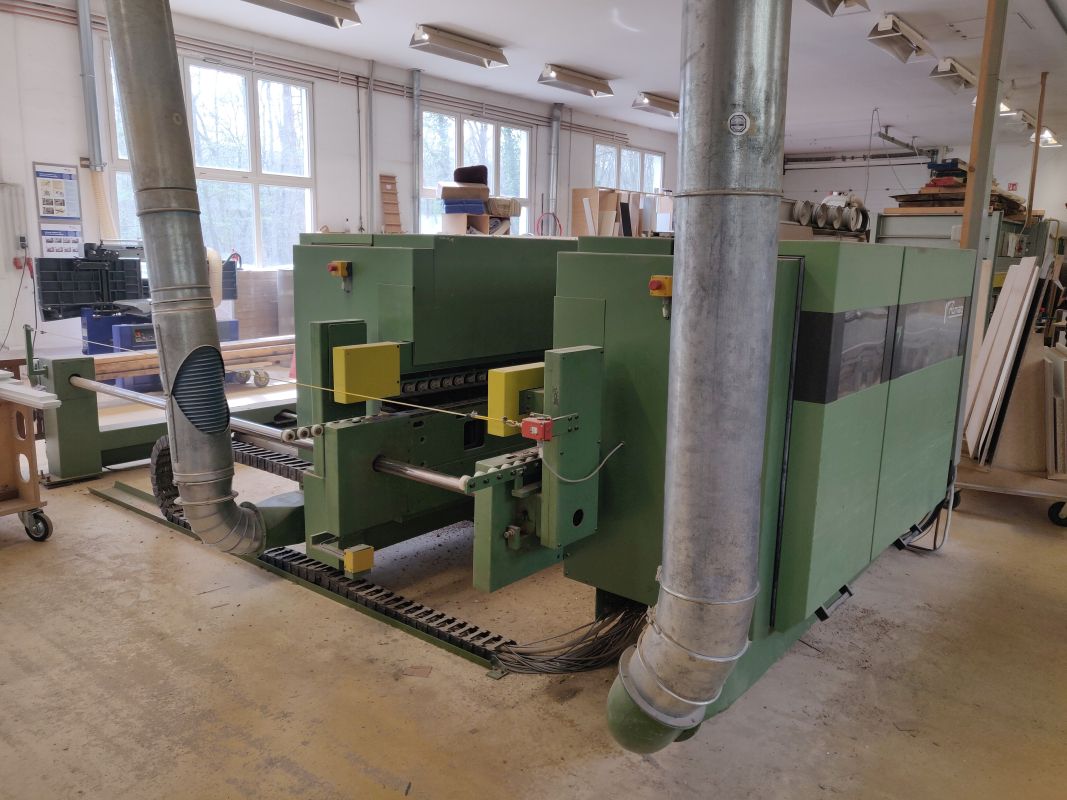

double-end tenoner

double-end tenoner
Brand: Homag
Type: FLO23
Year of construction: 1992


Description:

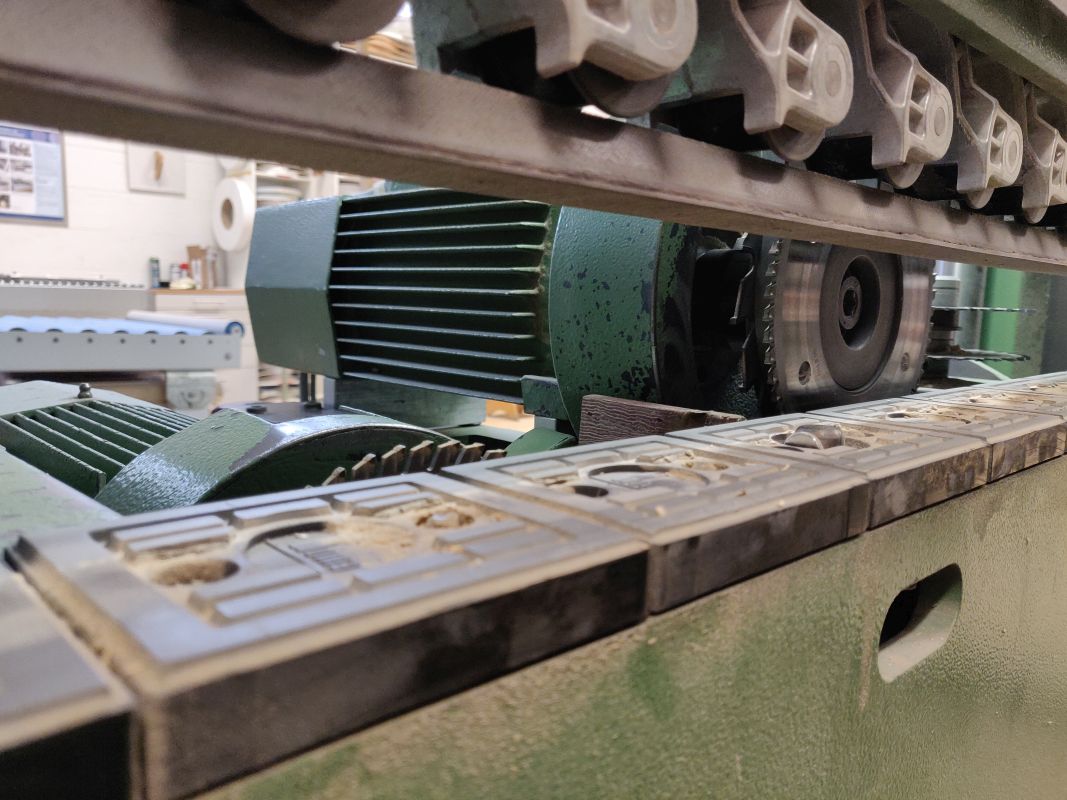

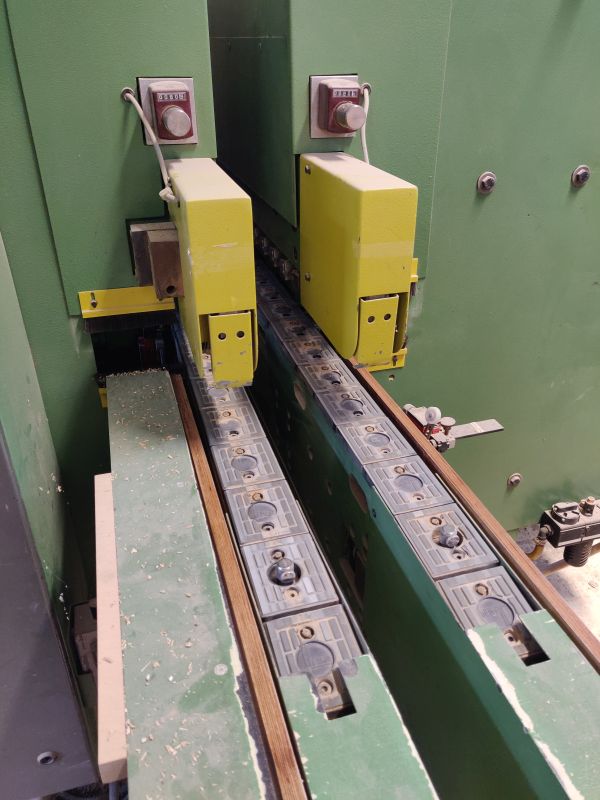

Fixed stop side left, movable side right Precise workpiece transport device. Block link chain with retractable stop cams, distance 900 mm.
Cam height infinitely adjustable up to max. 20 mm projection. Chain track with automatic central lubrication. Top pressure with driven V-belts, manually height-adjustable.

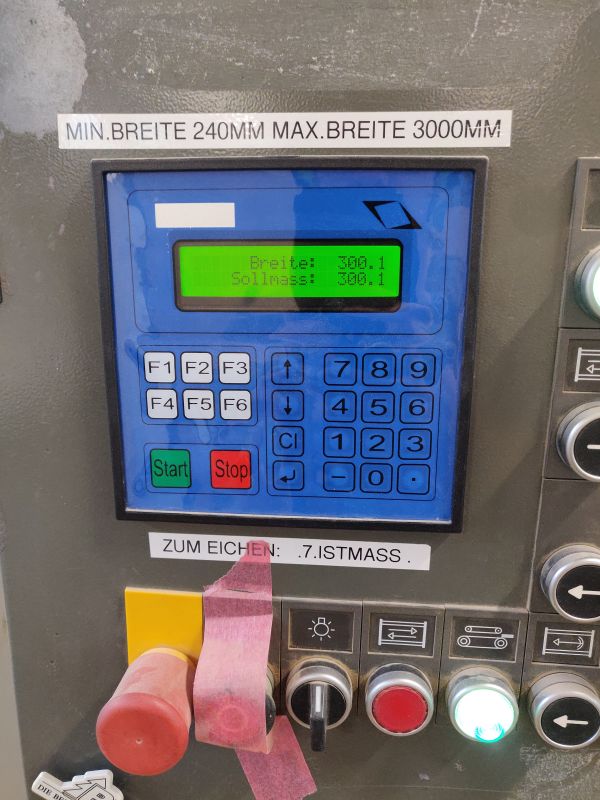

Motorized width adjustment via rapid / creep speed gearbox with LED position indicator. Manual button for forward/reverse set-up mode. Noise protection cladding with central extraction.Recesses in the chain track for center cutting shaft with free space.

Technical data
- Operating voltage: 380 Volt, 50 Hz
- Control voltage: 220 Volt, installed according to VDE

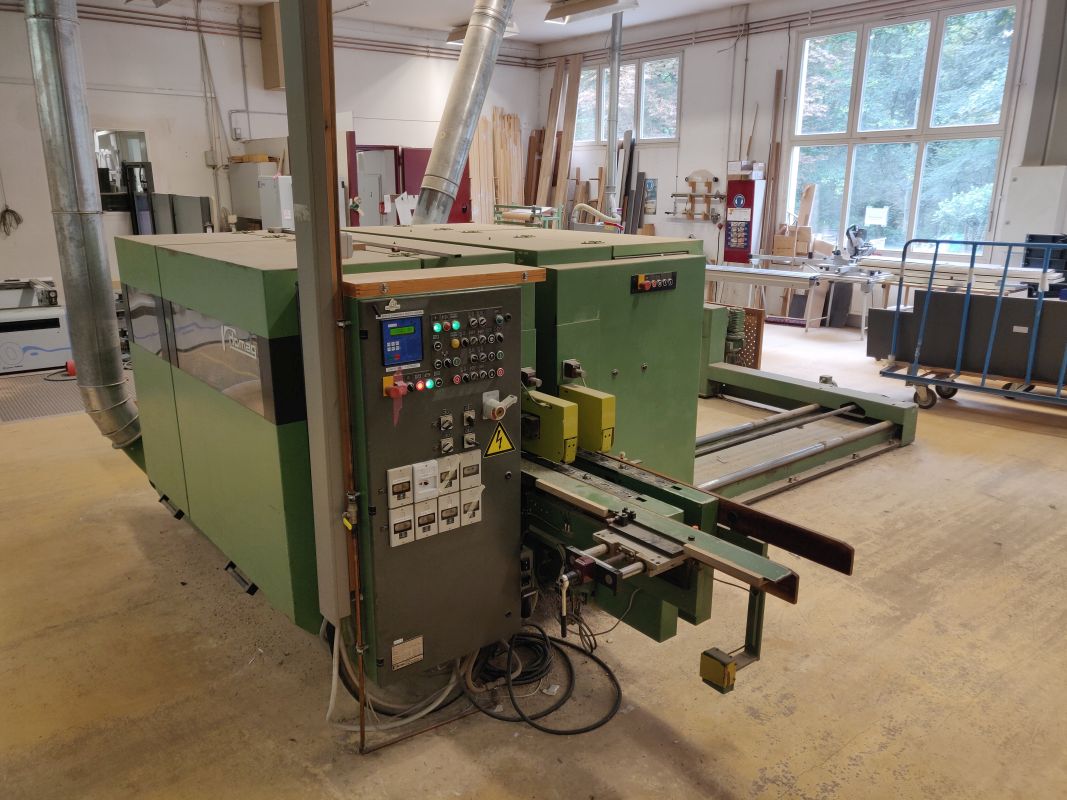

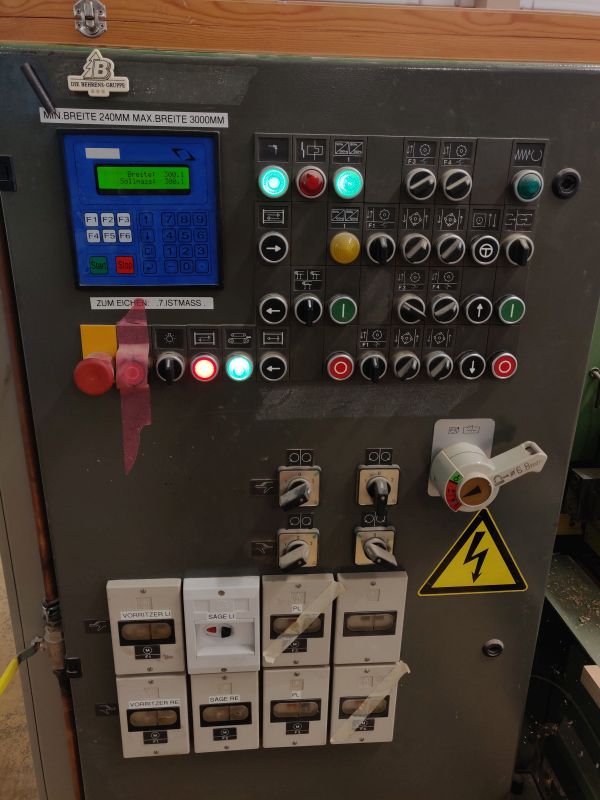

- Switch cabinet with control panel mounted on the left side of the machine
- Infinitely variable feed rate: 5 - 25 m/min
- Magnetic braking of the feed motor
- Working height: 905 mm
- Workpiece thickness: 8 - 80 mm
- Workpiece width min.: approx. 240 mm
- Workpiece width max.: approx. 3000 mm
- Workpiece protrusion adjustable: 10 - 120 mm

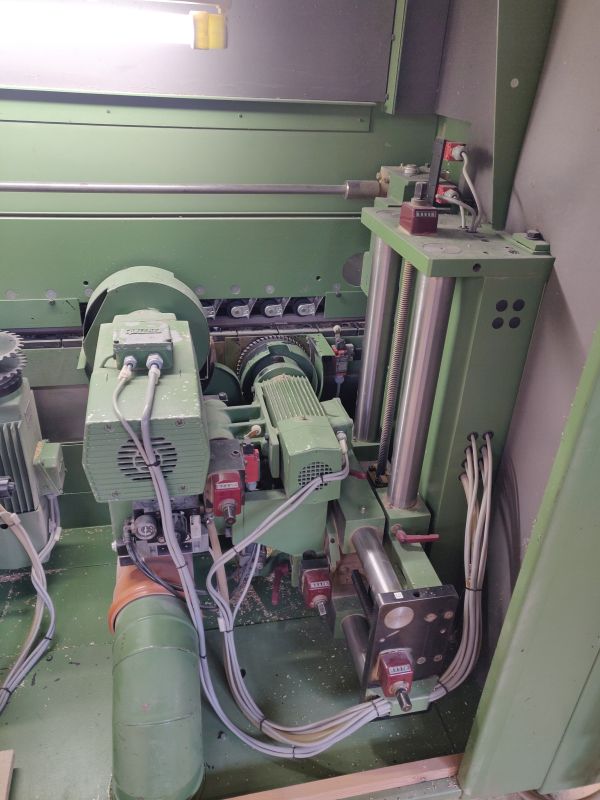

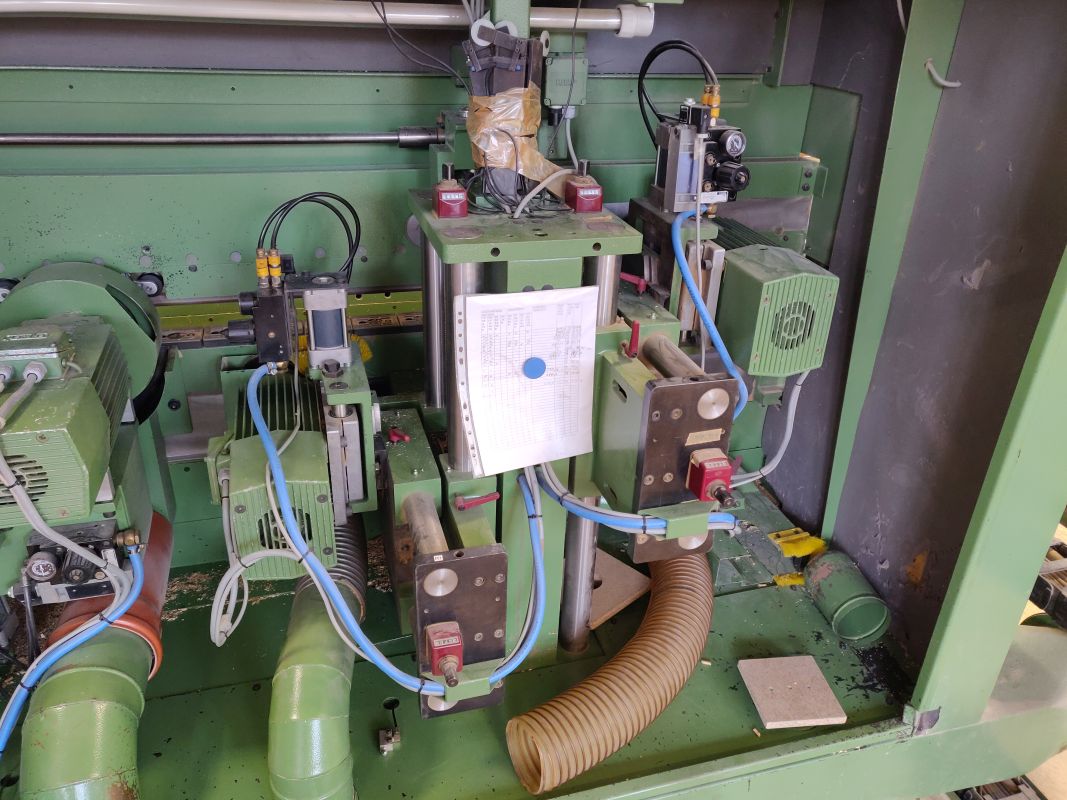

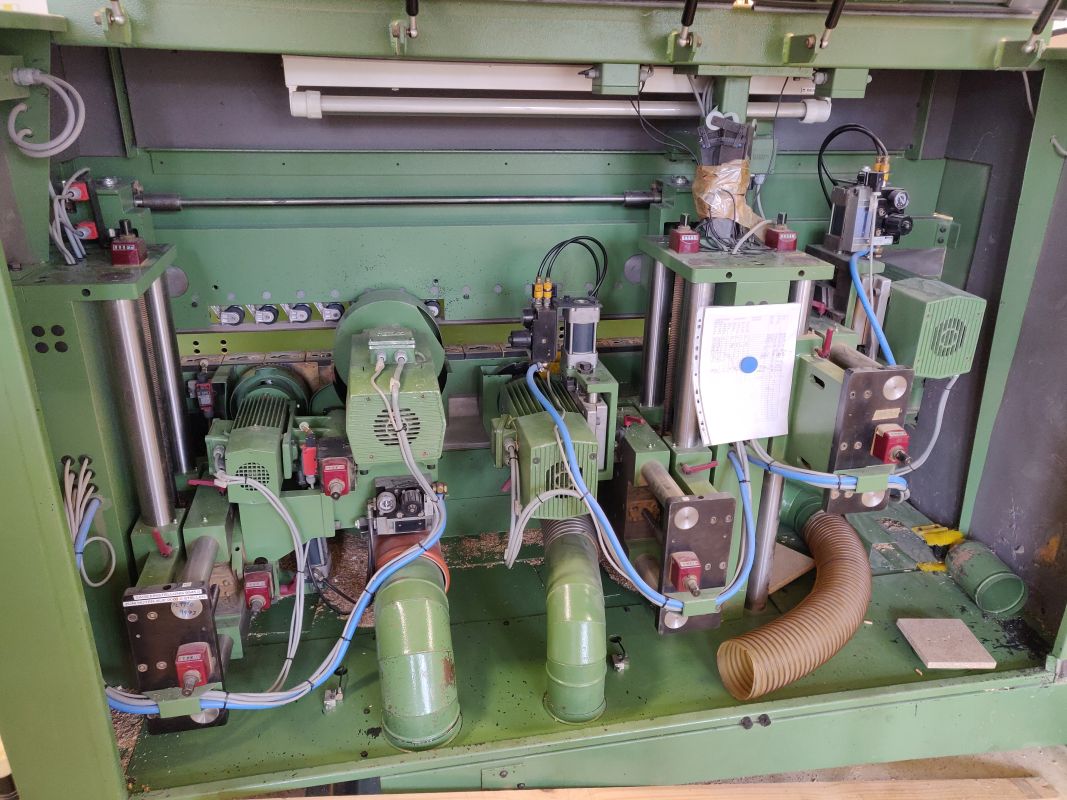

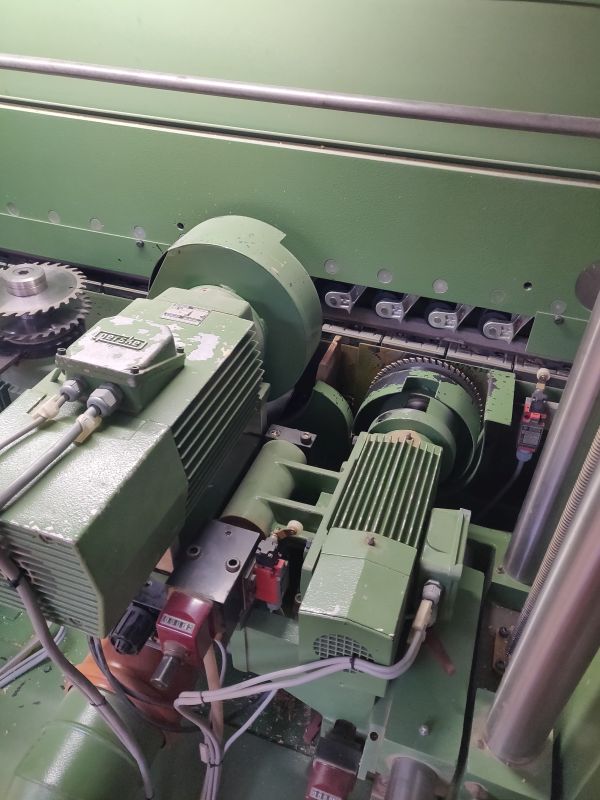

1x scoring unit 1.5 kW controlled left/right
- 1 motor 1.5 kW, 100 Hz, 6000 1/min

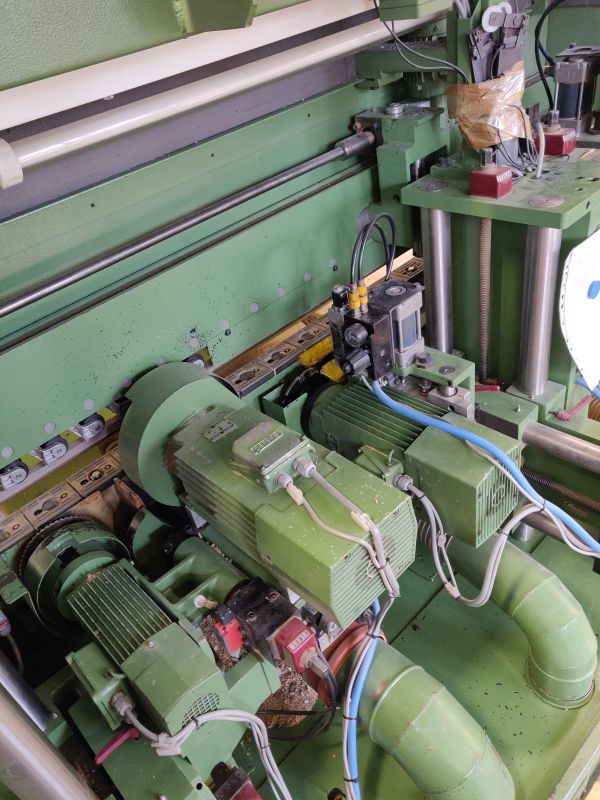

1x hogging unit 4.5 kW left/right
- 1 motor 4.5 kW, 100 Hz, 6000 1/min

1x hogging unit 4.5 kW left/right
- 1 motor 4.5 kW, 100 Hz, 6000 1/min

1x frequency converter 30 kVA, 10 Hz, IP54
- with connection cable to control cabinet approx. 3 m long

1x electronic width adjustment FLO22/23 right
Input on left side of machine.
Positioning in rapid/creep speed
Adjustment speed max. 3 m/min

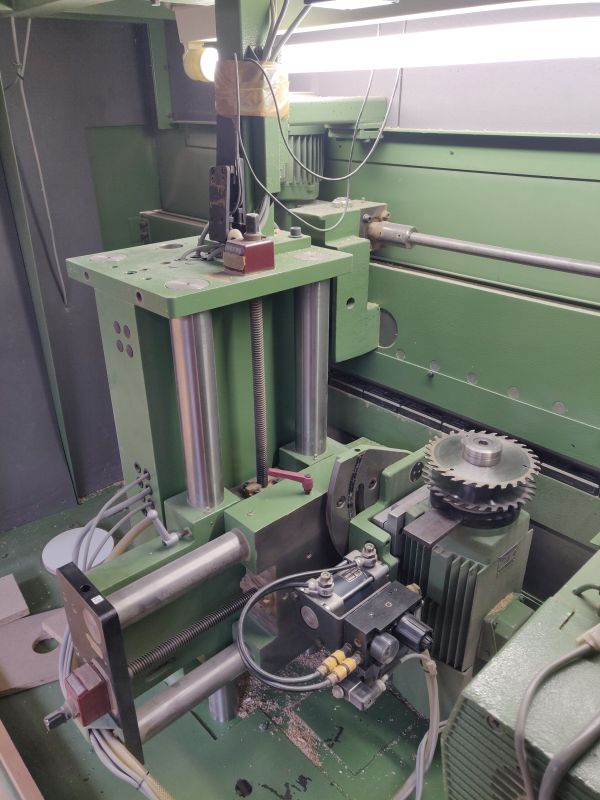

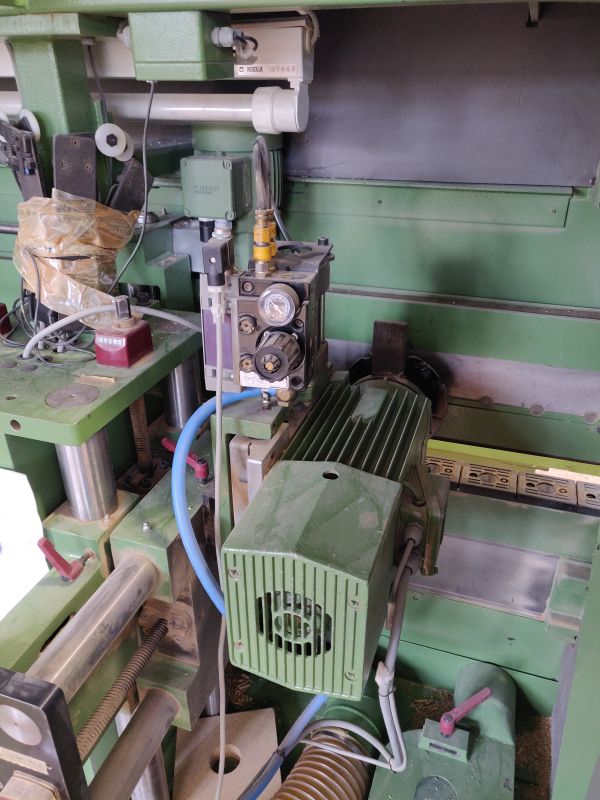

1x Standard milling unit controlled 4.5 kW FLO 22/23 left/right
- 1 milling motor 4.5 kW, 100 Hz, 6000 1/min
- Electropneumatic control for insert milling
- Swivel range 90°
- Reversing switch direction of rotation, suction hood
- Tool diameter max. 200 mm
- Without tools

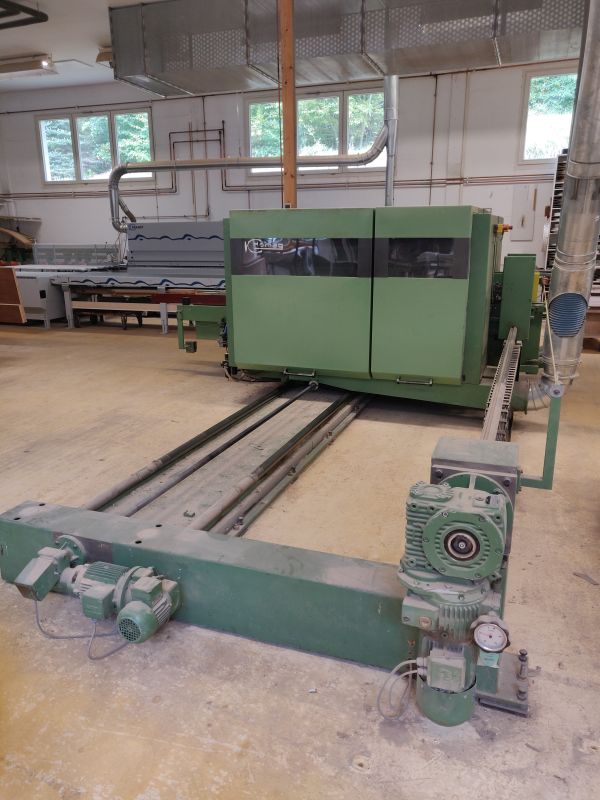

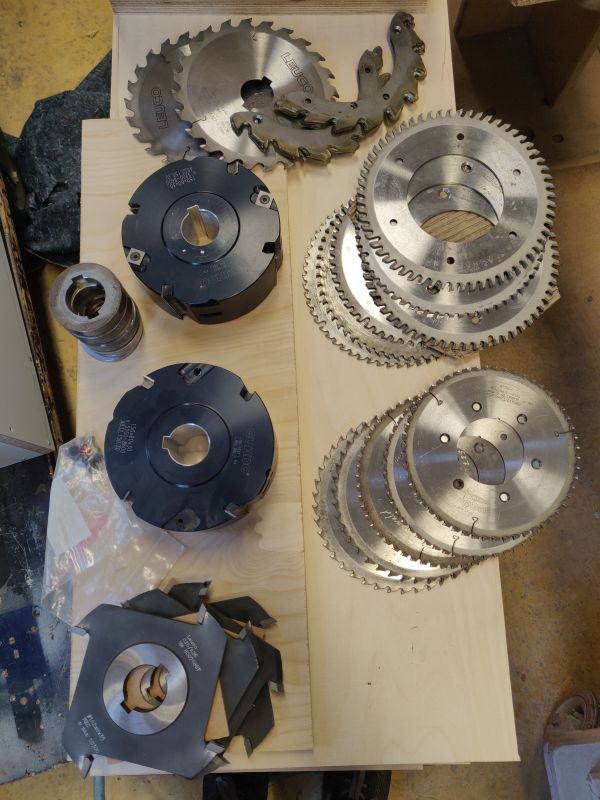

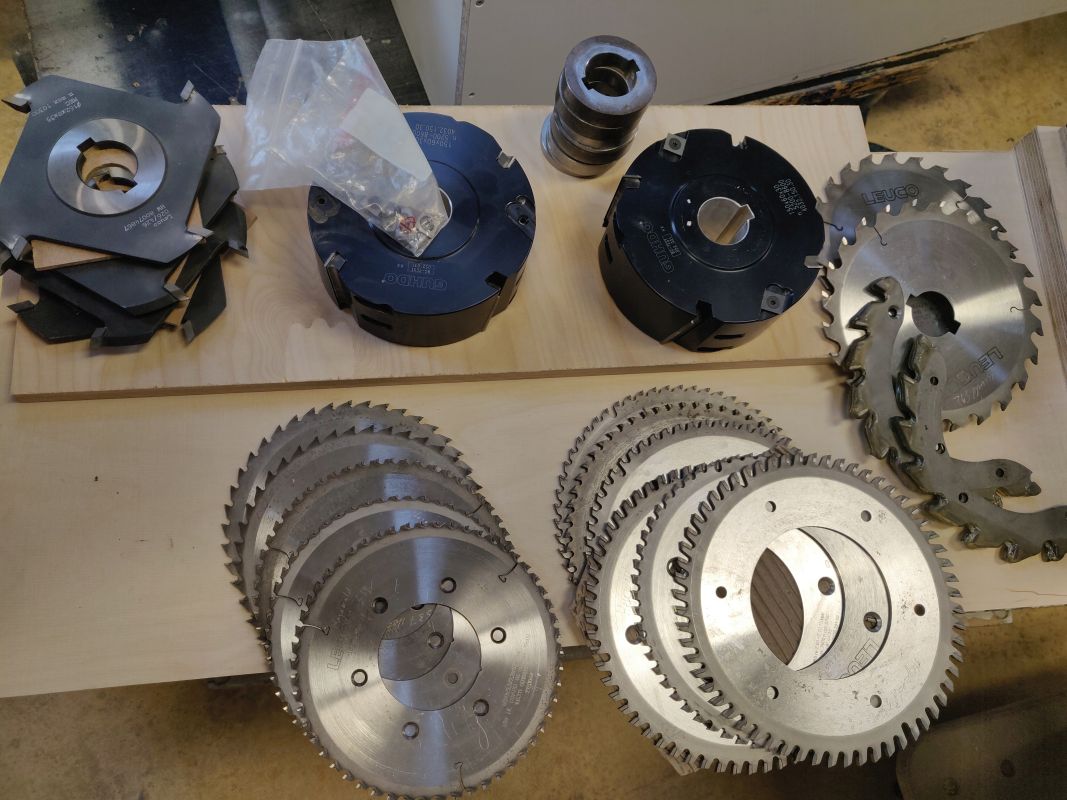

Incl. a center guide (roller conveyor) to support wide workpieces and existing tools for the machine.

Note:
The technical data and descriptions are a copy of the order confirmation at that time. Data are for information and are not binding.
